Short Description

High-pressure 3-piece threaded ball valve rated 1000WOG, available in sizes ½" to 4", with pressure options up to 3000 PSI. Constructed from WCB, CF8, CF8M, CF3, CF3M, or Duplex Stainless Steel, featuring full port design, ISO 5211 mount, and fire-safe construction.

Description

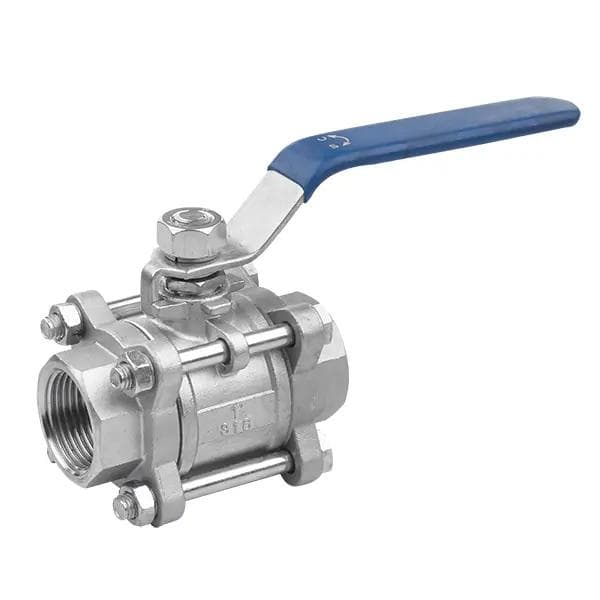

3-Piece Threaded Ball Valve – 1000WOG, Full Port, ½"–4", 1500/2000/3000 PSI (NSW)

The NSW 3-piece threaded 1000WOG ball valve offers high durability and flexibility for demanding industrial and fluid control applications. Designed for full flow efficiency, this valve supports pressure ratings up to 3000 PSI and temperatures ranging from -20°C to 200°C (-4°F to 392°F). The 3-piece body construction allows easy maintenance and cleaning without disconnecting the valve from the pipeline.

Available in sizes DN15 to DN100 (½" to 4"), this valve supports various thread types including BSPP, BSPT, NPT, DIN 2999/259, and ISO 228-1, making it suitable for global piping standards. Built using high-grade materials such as WCB, 304/316 stainless steel, and Duplex 2205, the valve is designed for high pressure, temperature, and corrosion-resistance applications.

Specifications:

– Manufacturer: NSW
– Valve Type: Ball Valve
– Configuration: 3-Piece Body
– Size Range: ½" to 4" (DN15 to DN100)
– Pressure Rating: 1000 WOG / 1500 PSI / 2000 PSI / 3000 PSI
– End Connection: Threaded (BSPP, BSPT, NPT, DIN 2999/259, ISO 228-1)
– Operation: Manual Lever
– Bore Type: Full Bore
– Body Material Options: WCB, CF8 (304 SS), CF8M (316 SS), CF3 (304L SS), CF3M (316L SS), Duplex 2205
– Ball Material: Stainless Steel with Pressure Balance Hole
– Seat Type: PTFE or Equivalent Soft Seat (varies by configuration)
– Stem Material: Stainless Steel (Anti-blowout, Anti-static)
– Design Standard: ANSI B16.34
– Wall Thickness Standard: ANSI B16.34
– Thread Standard: ANSI B1.20.1, BS21, DIN 2999/259, ISO 228/1, JIS B0203 ISO 7/1
– Test & Inspection Standards: MSS SP-100, EN 12266, API 598, ISO 5208
– Fire Safe Standard: API 6FA, API 607
– Optional Compliance: NACE MR-0175, MR-0103, ISO 15848
– Mounting Platform: ISO 5211 Direct Mount
– Design Features: Locking Device, Silica Sol Investment Casting, Anti-static and Anti-blowout Stem
– Temperature Range: -20°C to +200°C (-4°F to +392°F)
– Non-Destructive Testing: PMI, UT, RT, PT, MT
