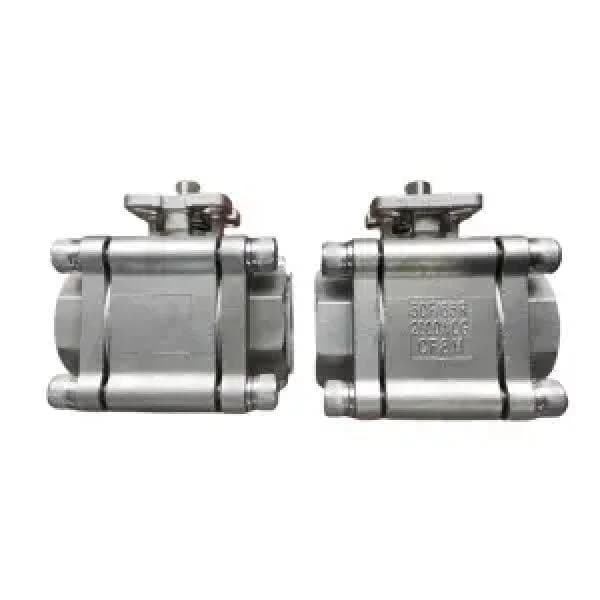

3-Piece Threaded Ball Valve – 2000WOG, Full Port, ½″–4″, High Pressure

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

NSW 3-piece threaded ball valve rated for 2000WOG service. Available in sizes ½″ to 4″, supports BSPP/BSPT/NPT threads, full port design, anti-static stem, ISO 5211 mount, and fire-safe compliant. Ideal for high-pressure industrial flow control.

Description

3-Piece Threaded Ball Valve – 2000WOG, Full Port, ½″–4″, High Pressure

The NSW 3-Piece Threaded Ball Valve – 2000WOG – is engineered for high-pressure applications requiring superior durability, tight sealing, and easy maintenance. Available in sizes ranging from DN15 to DN100 (½″ to 4″), this valve accommodates multiple thread types including BSPP, BSPT, NPT, DIN 2999, and ISO 228-1, providing compatibility with a wide range of global pipe standards.

Constructed using top-grade materials such as WCB, 304/316 stainless steel, and Duplex 2205, this valve ensures corrosion resistance and long-term performance under demanding conditions. The full port design enables unobstructed flow, reducing pressure drop and enhancing efficiency in fluid systems.

Specifications:

– Manufacturer: NSW
– Valve Type: Ball Valve
– Construction: 3-Piece Body
– Size Range: ½ inch to 4 inches (DN15–DN100)
– Pressure Class: 2000 WOG (Working Pressure), also available in 1500 PSI / 3000 PSI
– End Connection: Threaded (BSPP / BSPT / NPT / DIN 2999 / ISO 228-1)
– Operation: Lever Operated
– Port Type: Full Port
– Mounting: ISO 5211 Direct Mounting Pad
– Body Material: WCB, CF8 (SS304), CF8M (SS316), CF3, CF3M, Duplex Stainless Steel 2205
– Ball Material: Solid Stainless Steel (pressure balance hole)
– Stem Material: Blowout-Proof, Anti-Static Design
– Design Standard: ANSI B16.34
– Wall Thickness Standard: ANSI B16.34
– Thread Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203 ISO7/1
– Fire Safe Design: API 6FA, API 607
– Testing & Inspection: MSS SP-100, EN 12266, API 598, ISO 5208
– Optional Standards: NACE MR-0175, MR-0103, ISO 15848
– Design Features: Locking device, anti-static device, silica sol investment casting
– Temperature Range: -20°C to +200°C (–4°F to +392°F)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
