3-Piece Welded End Ball Valve – NSW

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty 3-piece welded ball valve with Class 150–2500 pressure rating, suitable for corrosive and high-pressure environments. Fire-safe, full port, and compact design.

Description

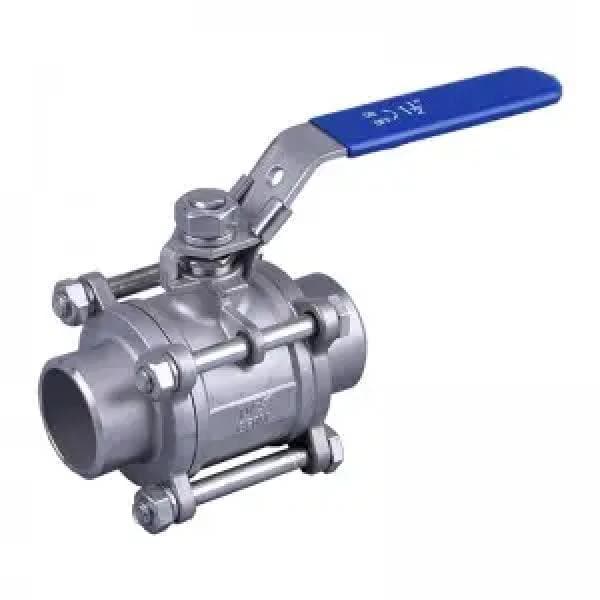

3-Piece Welded End Ball Valve – NSW

The NSW 3-Piece Welded End Ball Valve is engineered for reliable shut-off and flow control across a wide range of industrial applications. Designed to API 6D and ASME B16.34 standards, it supports pressure classes from 150 up to 2500 and is suitable for use with aggressive media including steam, oil, mud, water, and corrosive fluids. This valve features a blowout-proof stem, low torque operation, and a fully welded body construction for increased strength and zero leakage. The valve’s self-cleaning sealing surface, pressure balance hole, and top-entry design enable easy maintenance and extended service life. Made from high-grade cast or forged materials such as CF8M, WCB, Monel, Inconel, and Duplex Stainless Steel, this valve offers robust performance in demanding fluid handling systems. Available with RF, FF, or RTJ flange ends.

Specifications:

– Manufacturer: NSW
– Valve Type: Welded End Ball Valve (3-Piece Body)
– Size Range: ¼ inch to 4 inches (NPS ¼ to NPS 4)
– Pressure Class: ANSI Class 150 to Class 2500
– End Connection: Flanged (RF, FF, RTJ) or optional threads per ASME B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203
– Operation: Manual / Pneumatic / Electric Actuation
– Port Type: Full Port
– Body Material (Cast): A216 WCB, A351 CF8, CF8M, CF3, CF3M, A995 4A/5A, A352 LCB, LCC, LC2, Monel, Inconel, Hastelloy, UB6
– Body Material (Forged): A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5
– Ball Material: Stainless Steel with Pressure Balance Hole
– Stem Design: Blowout-Proof, Anti-Static, Lockable
– Design Standard: API 6D, ASME B16.34
– Face-to-Face Standard: ASME B16.34, DIN 3202-M3
– Testing & Inspection: MSS SP-110, EN 12266, API 598, ISO 5208
– Fire Safe Design: API 6FA, API 607
– Optional Compliance: NACE MR-0175, MR-0103, ISO 15848
– Temperature Range: -20°C to +200°C (–4°F to +392°F)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
