3-Way Control Valve with ARI-PREMIO Electric Actuator – PN16, Cast Iron Body

ReflowX SKU: REF-9653

Product Details

Quantity

8
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ARI Armaturen – ARI-PREMIO
Equipment code

Get Quotation Whatsapp

Short Description

DN100 three-way mixing/diverting control valve equipped with ARI-PREMIO electric thrust actuator, PN16 rated, for precise modulation in HVAC and process control applications.

Description

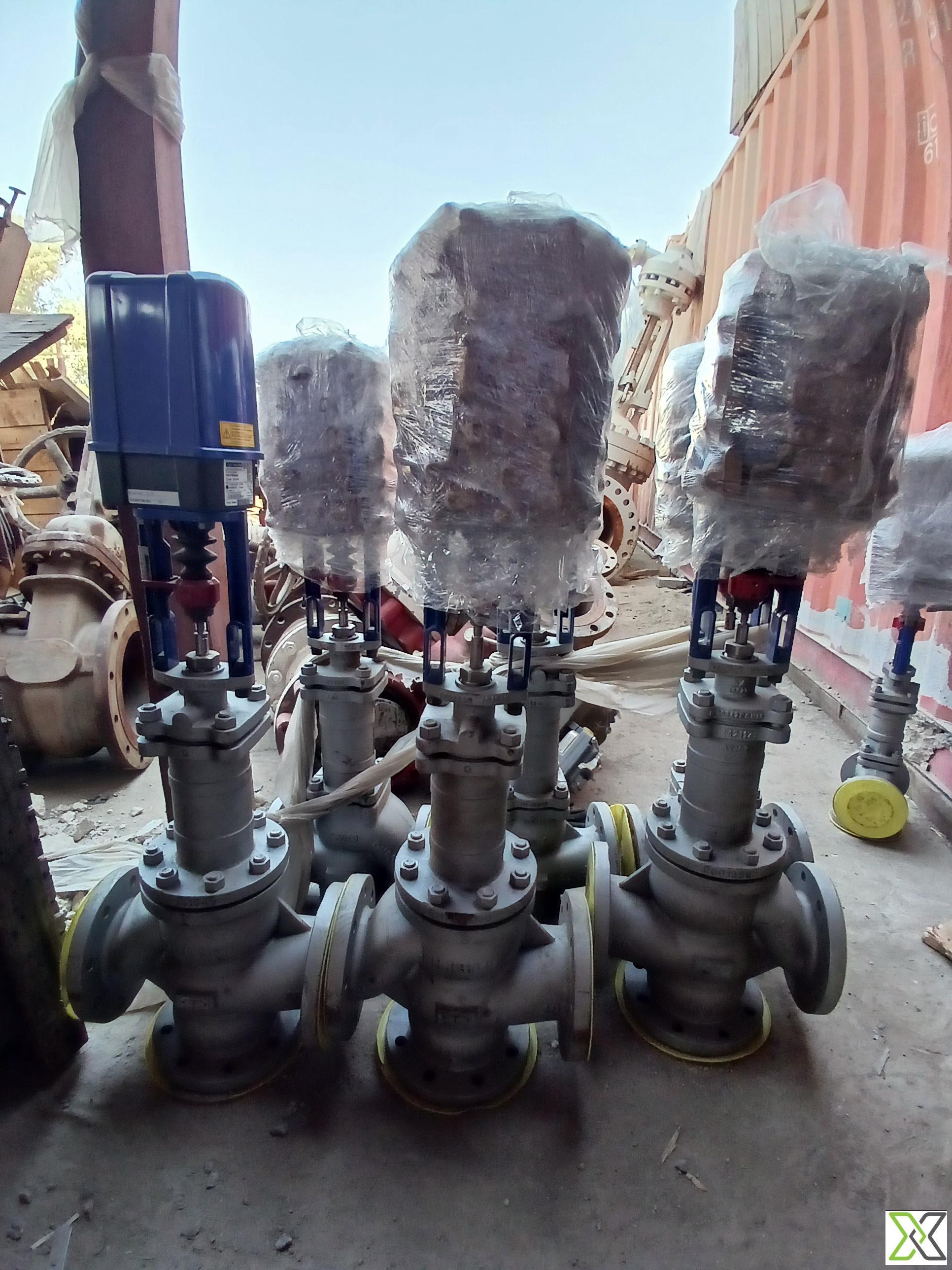

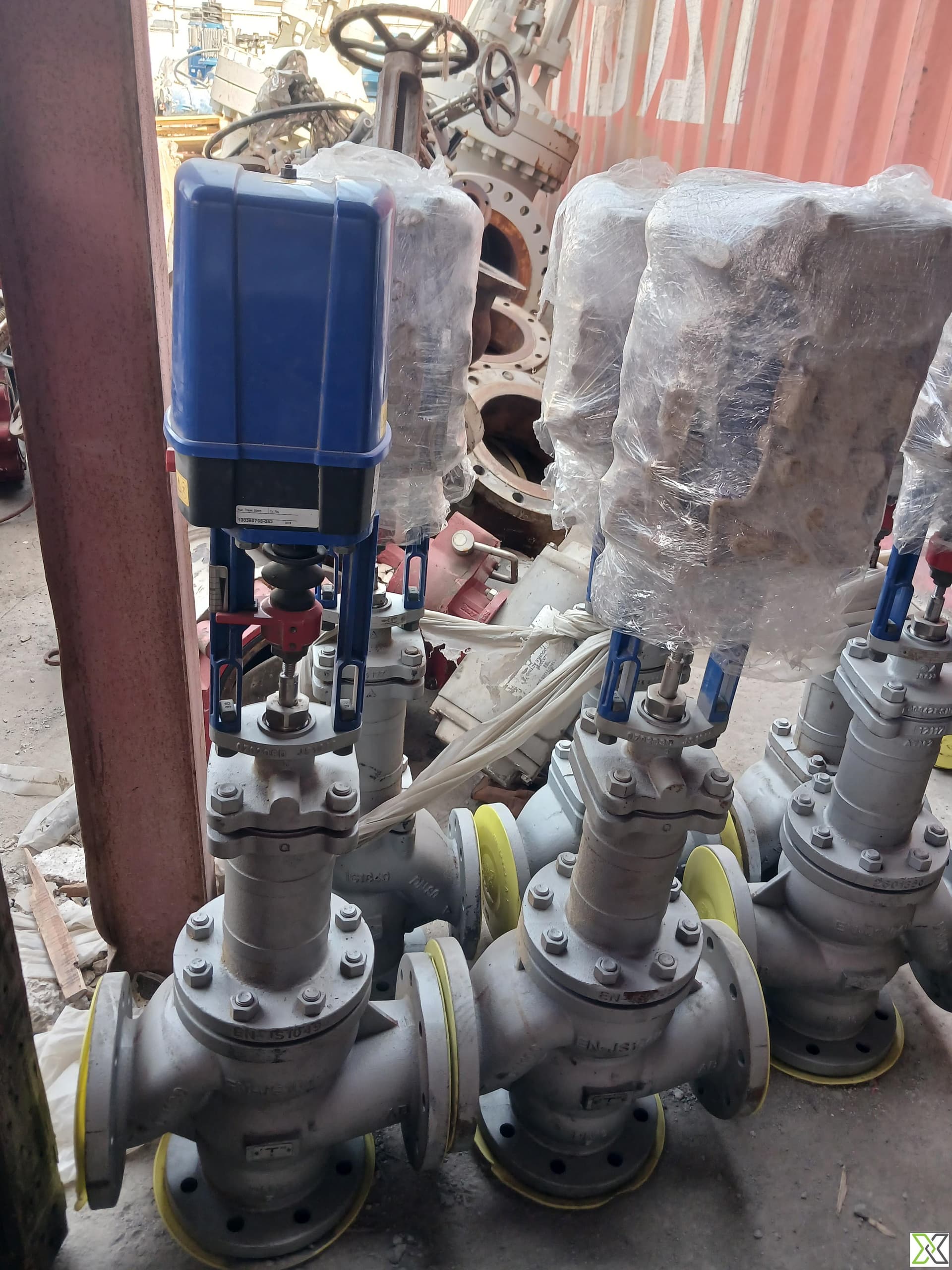

3-Way Control Valve with ARI-PREMIO Electric Actuator – PN16, Cast Iron Body

This industrial-grade DN100 3-way control valve is engineered for both mixing and diverting applications in fluid handling systems. It features a globe valve body with flanged ends, constructed from high-strength cast iron (EN-JS1049) and rated for PN16 pressure conditions. The valve is mounted with the ARI-PREMIO electric actuator, a compact and powerful thrust actuator offering selectable modulation or on-off control modes. With a thrust capacity of 5.0 kN and multiple speed settings (0.25 to 1.00 mm/s), it allows precise fluid flow regulation via proportional control. The actuator supports multiple power supply ranges—20–28V AC/DC, 90–264V AC, or 400V 3-phase—and features IP65 ingress protection for harsh environments. It includes an internal heating element (ES11), advanced control modules (RI21/32, dTRON), and maintains a maximum power draw of 22 VA at 0.9 A. The unit is designed for upright mounting but allows horizontal installation where necessary.

Specifications:

– Valve Type: 3-Way Mixing or Diverting Control Valve
– Valve Size: DN100
– Pressure Rating: PN16

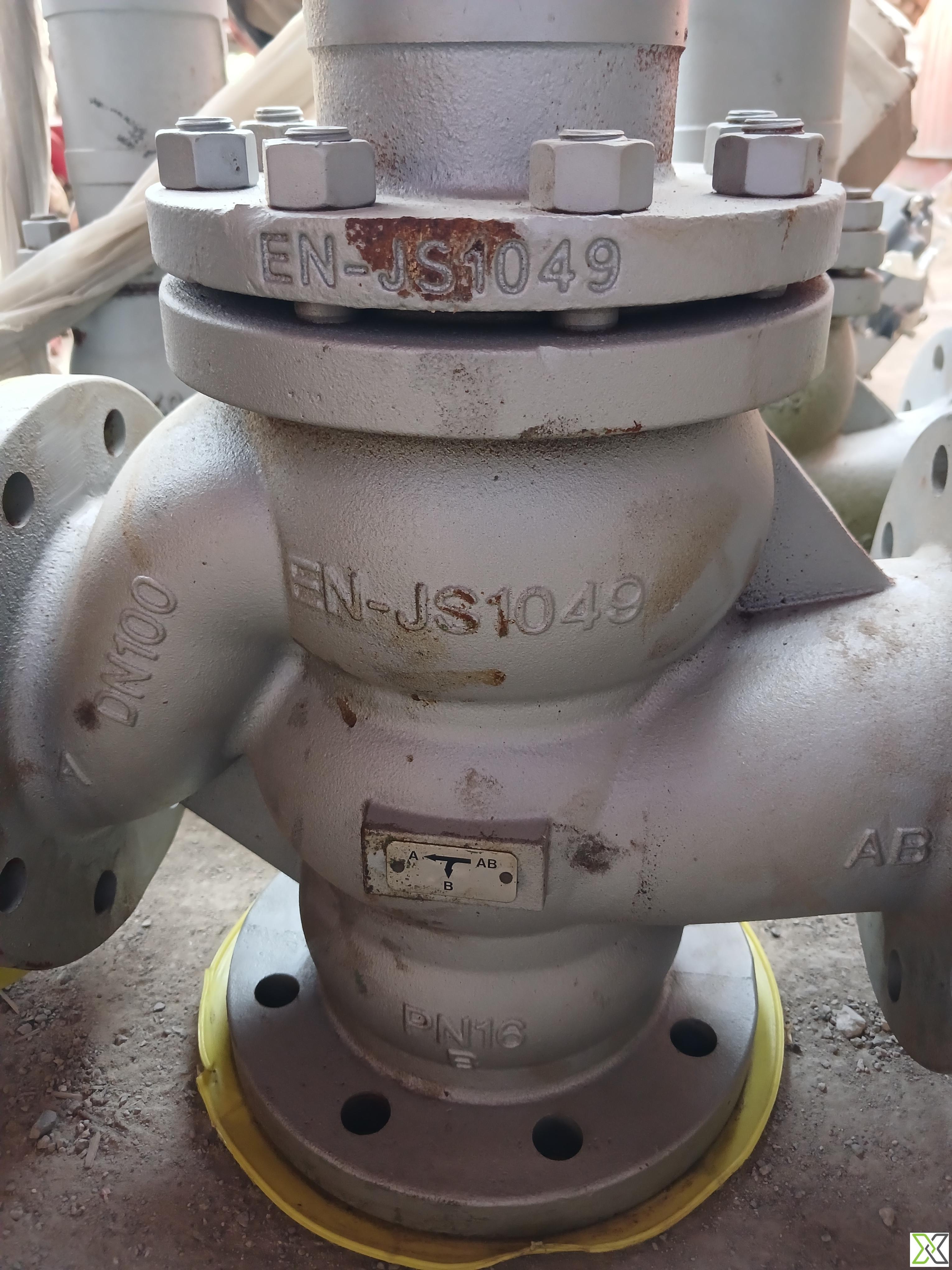

– Body Material: Cast Iron (EN-JS1049)
– Body Design: Globe Valve Body with Flanged Ends
– Mounting Position: Upright Recommended, Horizontal Permissible

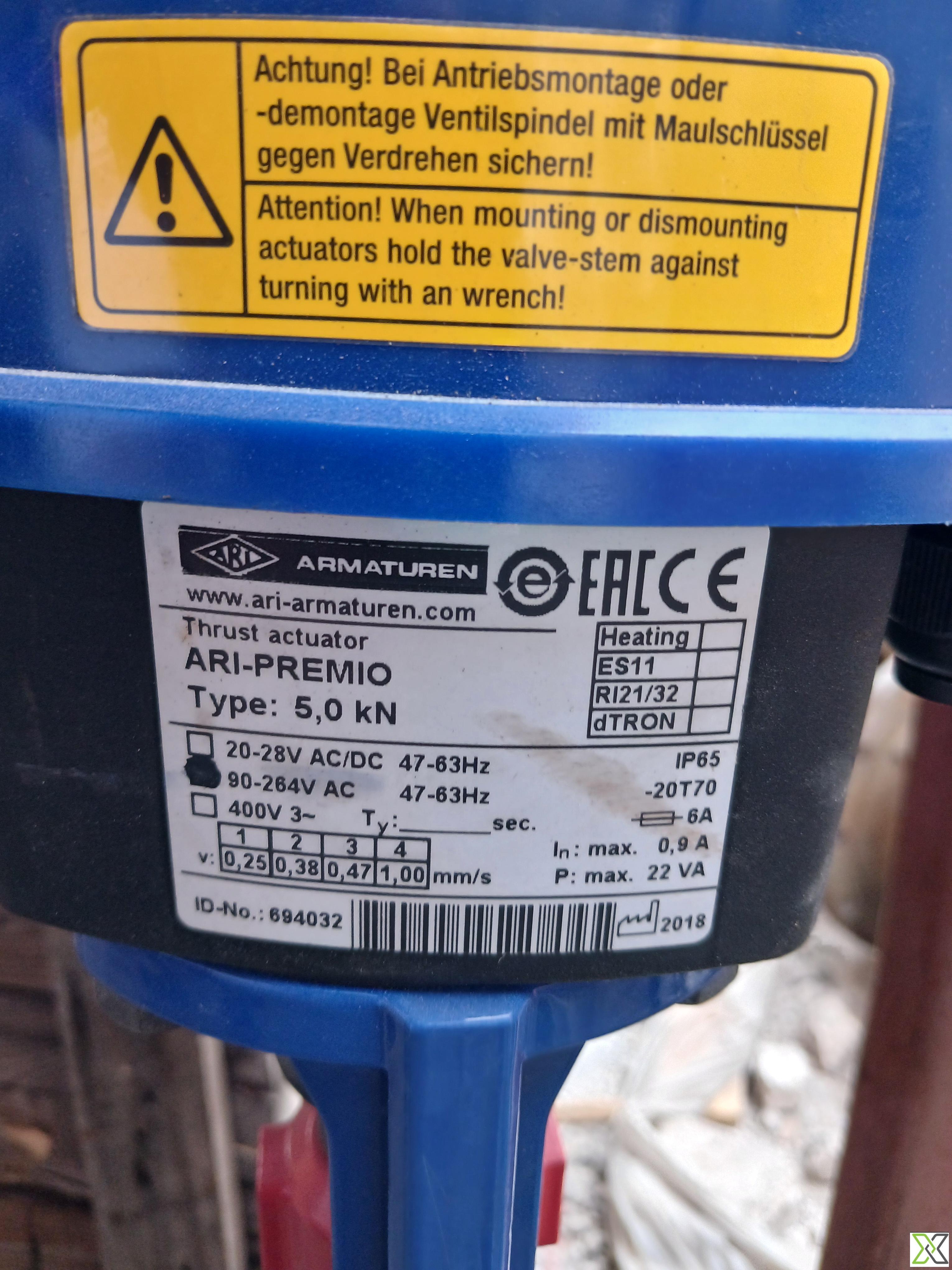

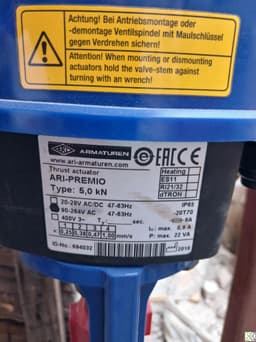

– Actuator Model: ARI-PREMIO
– Actuator Type: Electric Thrust Actuator
– Thrust Force: 5.0 kN
– Flow Control Function: Proportional Modulation / On-Off (Selectable)
– Speed Settings: 0.25 / 0.38 / 0.47 / 1.00 mm/s
– Power Supply Options:
– 20–28V AC/DC
– 90–264V AC
– 400V 3~
– Ingress Protection: IP65
– Heating Element: ES11
– Control Modules: RI21/32, dTRON
– Current Draw: Max. 0.9 A
– Power Consumption: Max. 22 VA
– ID Number: 694032
– Year of Manufacture: 2018
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2018
ISO 15926 Pt 4	10554
Model Number	ARI-PREMIO
Year of Manufacturing	2018
Height	600–950 mm
Width	250–400 mm
Weight	30–120 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
Speed	30–120 seconds for full stroke
IFC Class	IfcValve
Design Specification	EN 1349 / DIN 3356
Failure Action	Fail-Safe Position
Fluid Name	Water, Steam, Thermal Oil, Air, or Neutral Gases
Full Opening Valve	Yes
Nominal Diameter	DN 25–DN 150 standard range
Normal Operating Pressure	PN 16 / PN 25 / PN 40
Normal Operating Temperature	-10°C to +350°C
Piping Class	DIN/EN 1092-1
UNSPSC Code	40141600
