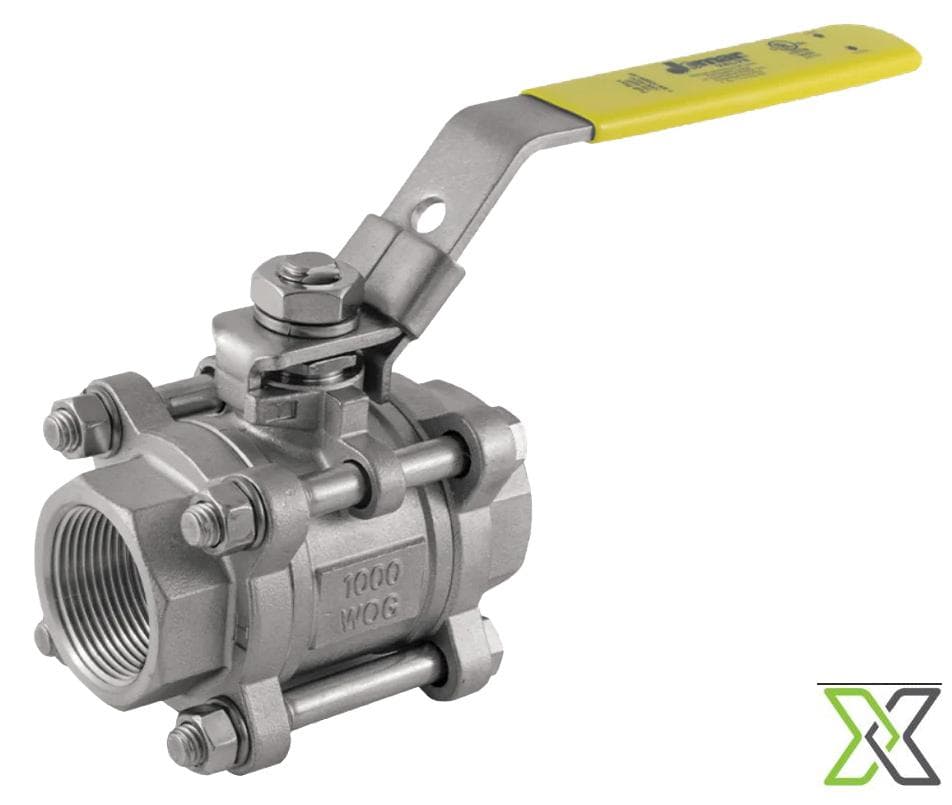

3DV Ball Valves – ½” to 10”

ReflowX SKU: REF-8615

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

3DV Valves, USA
Equipment code

Get Quotation Whatsapp

Short Description

High-performance 3DV USA ball valves in sizes ½” to 10”, rated for Class 150 and 300. Constructed with CF3M, CF8M, DI, or WCB body and CF8M disc, with RF, wafer, or lug ends.

Description

3DV Ball Valves – ½” to 10”, Class 150 & 300, USA

3DV ball valves are engineered in the USA for dependable shutoff and flow control in demanding industrial applications. Available in sizes from ½” to 10” and pressure classes 150 and 300, these valves feature robust body materials including CF3M, CF8M, ductile iron (DI), and WCB carbon steel. The ball (disc) is made of corrosion-resistant CF8M stainless steel, ensuring reliable sealing performance in a wide range of process fluids. Designed for versatility, 3DV ball valves come with raised face (RF), wafer, or lug-style end connections, making them suitable for integration into various piping systems. Their quarter-turn operation allows quick shutoff, and they are compatible with manual, electric, or pneumatic actuators.

Specifications:

– Manufacturer: 3DV Valves, USA
– Product Type: Ball Valve
– Size Range: ½” to 10”
– Pressure Ratings:
• Class 150
• Class 300
– Body Materials:
• CF3M (316L Stainless Steel)
• CF8M (316 Stainless Steel)
• DI (Ductile Iron)
• WCB (Carbon Steel)
– Disc/Ball Material:
• CF8M Stainless Steel
– End Connections:
• RF (Raised Face Flanged)
• Wafer type
• Lug type
– Design Features:
• Full or reduced bore design
• Quarter-turn operation
• Blowout-proof stem
• Fire-safe design (optional)
• Anti-static device (optional)
• ISO 5211 actuator mounting flange
– Seat Options:
• PTFE, RTFE, or Metal
– Operation Modes:
• Manual (lever or gear)
• Electric actuator
• Pneumatic actuator
– Compliance & Testing:
• API 607 (fire-safe, optional)
• API 598 (pressure testing)
• ASME B16.34
• ISO 5211
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Ball Valve
Manufacturer Name	3DV Valves, USA
Height	120 mm to 620 mm
Width	90 mm to 445 mm
Length	108 mm to 533 mm
Weight	3 kg to 160 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	ASME B16.34 (Pressure-Temperature Ratings)
Failure Action	Manual: Valve remains in last position
Fluid Name	water, oil, gas (WOG), steam, air, hydrocarbons, chemicals, and general industrial fluids
Full Opening Valve	Available in both Full Bore and Reduced Bore
Nominal Diameter	½” to 10”
Normal Operating Pressure	19.6 bar to 51 bar
Normal Operating Temperature	-29°C to +180°C
Piping Class	ASME Class 150 / 300
UNSPSC Code	40141600
