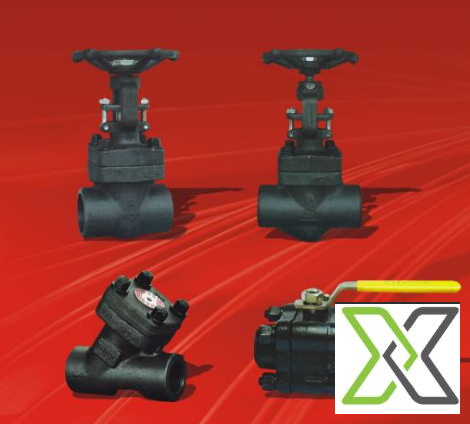

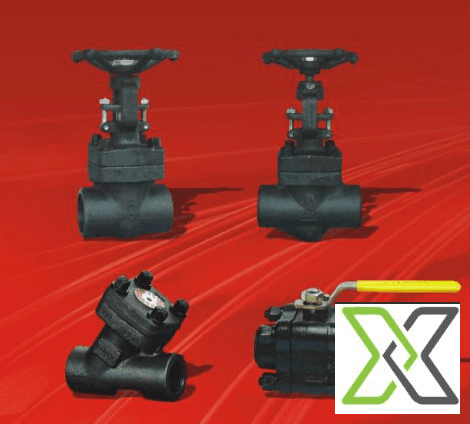

3DV Globe Valves – ½” to 10”

ReflowX SKU: REF-9232

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

3DV Valves, USA
Equipment code

Get Quotation Whatsapp

Short Description

3DV USA globe valves in sizes ½” to 10”, pressure Class 150 and 300. Constructed from CF3M, CF8M, DI, or WCB with a CF8M disc and RF, wafer, or lug-type ends for precise flow control.

Description

3DV Globe Valves – ½” to 10”, USA

3DV globe valves are high-precision flow control valves engineered for modulating and shutoff service in industrial pipelines. Manufactured in the USA and available in sizes from ½” to 10”, these valves are rated for ANSI Class 150 and 300 systems. The valve bodies are constructed from high-grade materials including CF3M (316L), CF8M (316), ductile iron (DI), and WCB (carbon steel), ensuring strength and corrosion resistance. Each valve features a CF8M stainless steel disc and bonnet-mounted stem with rising motion for accurate throttling. End connections are available in raised face (RF), wafer, and lug designs, allowing easy integration into various process configurations. Suitable for applications in chemical processing, oil and gas, water treatment, and general industrial systems.

Specifications:

– Manufacturer: 3DV Valves, USA
– Product Type: Globe Valve
– Size Range: ½” to 10”
– Pressure Ratings:
• Class 150
• Class 300
– Body Material Options:
• CF3M (316L Stainless Steel)
• CF8M (316 Stainless Steel)
• DI (Ductile Iron)
• WCB (Carbon Steel)
– Disc Material:
• CF8M Stainless Steel
– End Connections:
• RF (Raised Face Flanged)
• Wafer type
• Lug type
– Design Features:
• Rising stem design
• OS&Y (Outside Screw and Yoke)
• Renewable seat and disc
• Accurate throttling performance
• Bolted bonnet construction
• Backseat design for stem packing relief
– Operation Options:
• Manual handwheel
• Gear operator
• Electric or pneumatic actuator (optional)
– Compliance & Testing:
• API 623 / API 598
• ASME B16.34
• ISO 5211 (actuator mounting)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Globe Valve
Manufacturer Name	3DV Valves, USA
Height	180 mm to 1200 mm
Width	90 mm to 445 mm
Length	203 mm to 622 mm
Weight	6 kg to 250 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 623 (Globe Valve Design)
Failure Action	Manual: Valve holds last position
Fluid Name	Water, steam, oil, air, gas, and industrial chemical fluids
Full Opening Valve	No – Globe valves are throttling devices
Nominal Diameter	½” to 10”
Normal Operating Pressure	19.6 bar to 51 bar
Normal Operating Temperature	-29°C to +230°C
Piping Class	Class 150 / Class 300
UNSPSC Code	40141600
