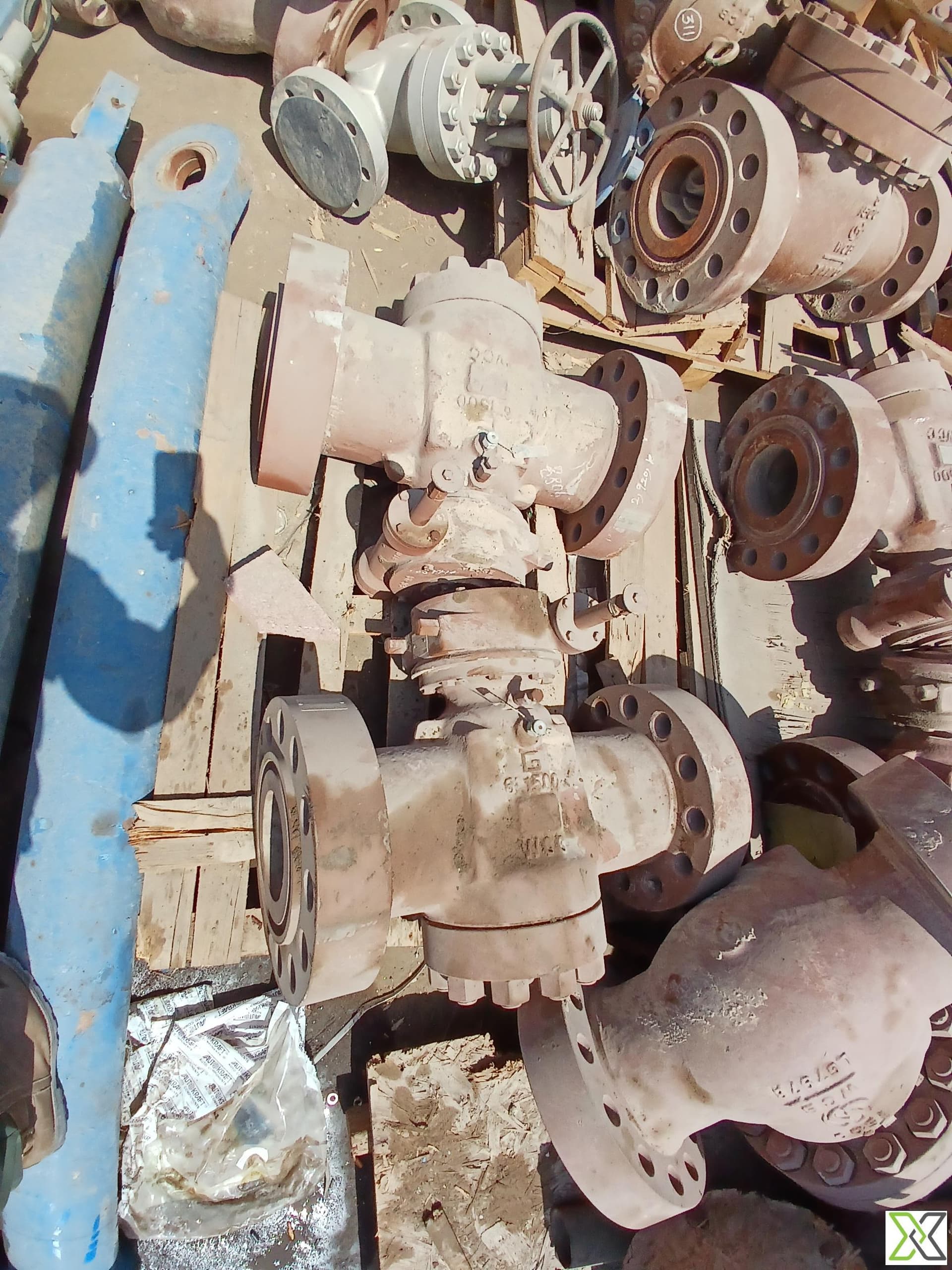

6" Gate Valve – ANSI Class 1500, WCB, Bolted Bonnet

This 6-inch (DN150) gate valve is engineered for high-pressure service in demanding industrial environments, meeting ANSI/ASME B16.34 and Class 1500 requirements. It features a robust bolted bonnet design, rising stem configuration, and flanged end connections (raised face or ring-type joint as per ANSI B16.5). The valve body is made from ASTM A216 Grade WCB cast carbon steel, with a solid or flexible wedge and hard-faced or stainless-steel trim options (Trim 5 or Trim 8). Designed for manual operation via handwheel or gear, it can be actuated when needed. Certified to API 598 or ISO 5208 testing standards, and fire-safe design can be provided per API 607 if specified. A graphite or PTFE packing ensures temperature resistance, while the integral backseat allows safe replacement of gland packing during operation.

Specifications:

– Valve Type: Gate Valve
– Size: 6 inches (DN 150)
– Pressure Class: ANSI Class 1500 (103 bar / 1500 psi)
– End Connections: RF or RTJ (ANSI B16.5)
– Face-to-Face Length: ~559 mm (per ASME B16.10)
– Operation: Manual (Handwheel or Gear), Actuator Optional
– Design Standard: ANSI/ASME B16.34
– Testing Standards: API 598 / ISO 5208
– Fire Safe Design: API 607 (if applicable)
– Body Material: ASTM A216 Grade WCB (Cast Carbon Steel)
– Bonnet Type: Bolted Bonnet
– Stem Type: Rising Stem
– Wedge: Solid or Flexible (OEM dependent)
– Trim Options: Trim 5 (Stainless Steel) or Trim 8 (Hard-Faced Alloy)
– Seat Rings: Renewable or Welded-in Stainless Steel
– Gland Packing: Graphite or PTFE
– Stem Seal: Stuffing Box with Gland Follower
– Backseat: Provided (for in-line stem packing maintenance)

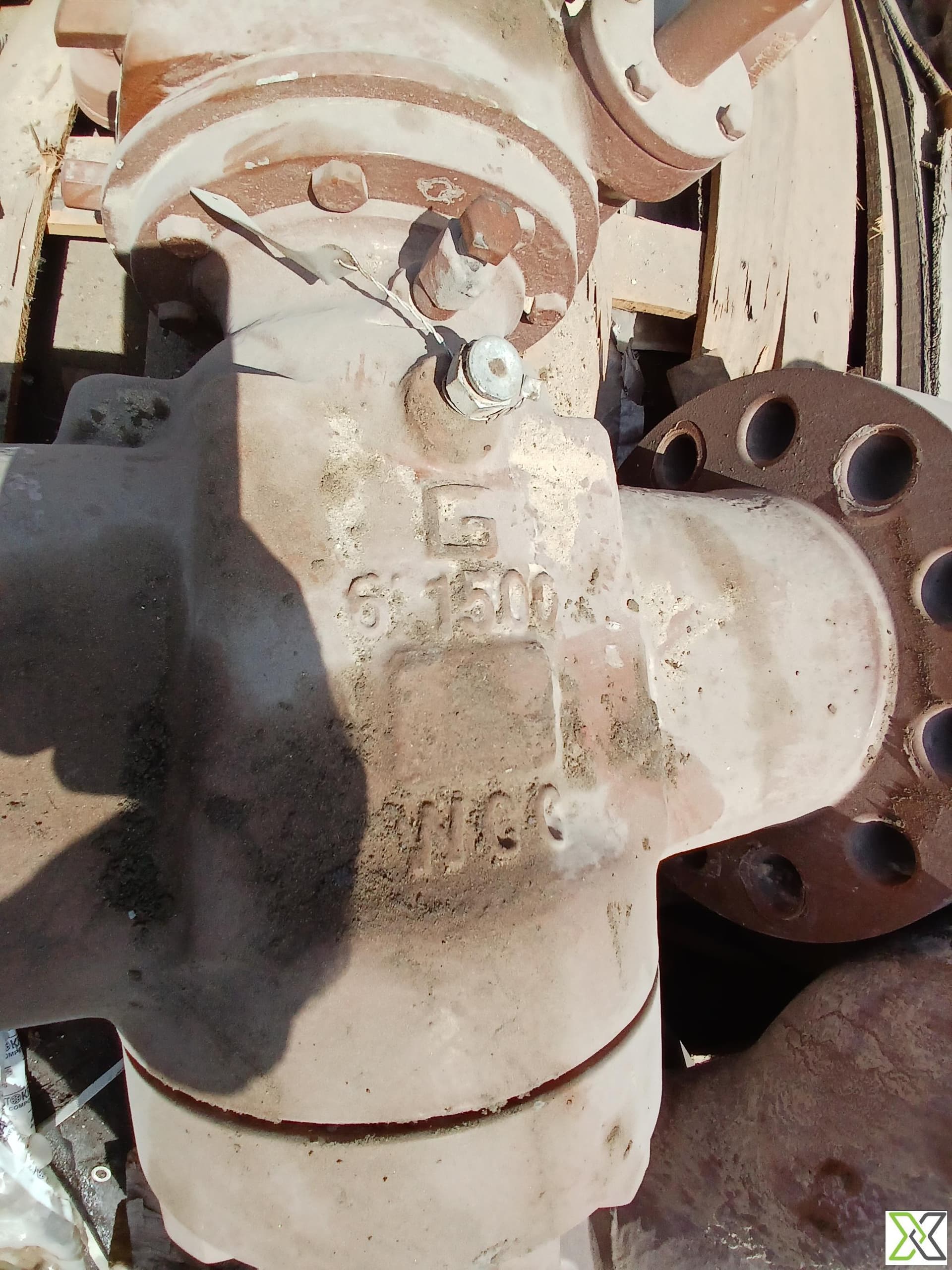

– Markings: “6 1500”, “WCB”, Manufacturer Logo
– Height: ~1100 mm
– Width: ~450 mm
– Weight: Approx. 145–180 kg
– Temperature Range: -29°C to +425°C
– Pressure Limits: As per ASME B16.34, Chart 2
