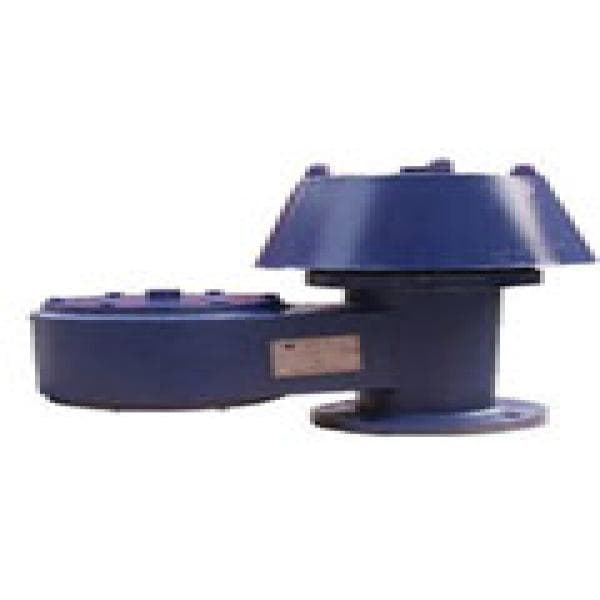

BZSV 8110 Series Breathing Valve – 2" to 12", Pressure/Vacuum Relief, API 2000

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

Beijing Zhonghanghua Safety Valve Sales CO. Ltd
Equipment code

Get Quotation Whatsapp

Short Description

8110 Series pressure/vacuum breathing valve with modular design, available in 2"–12" sizes. Offers protection for storage tanks against overpressure or vacuum damage, in compliance with API 2000. Available in aluminum alloy, carbon steel, or stainless steel.

Description

BZSV 8110 Series Breathing Valve – 2" to 12", Pressure/Vacuum Relief, API 2000

The BZSV 8110 Series Breathing Valve is a high-performance tank protection device designed to maintain safe pressure levels in atmospheric and low-pressure storage tanks. Engineered for both pressure and vacuum relief, this valve minimizes product vapor losses due to "breathing" (thermal expansion and contraction) while preventing structural damage to the tank caused by overpressure or vacuum conditions.

Manufactured in compliance with API 2000 standards, the 8110 Series is available in various configurations—TYPE 8110, 8112, 8113, and 8115—offering set pressures from 0.2 to 103.4 kPa and vacuum relief from –0.2 to –82 kPa. Its modular construction allows integration of functional add-ons such as flame arresters, suction elbows, dehumidifiers, or purge holes. The diaphragm seal, available in FEP or alternate materials, ensures a reliable seal and prevents adhesion between disc and seat. With a wide range of material options and accessories, the 8110 Series suits diverse chemical, petrochemical, and storage terminal applications.

Specifications:

– Valve Type: Pressure/Vacuum Breathing Valve
– Series: 8110, 8112, 8113, 8115
– Size Range: 2" to 12"
– Pressure Setpoint Range:
• TYPE 8110 & 8112: 0.2 – 6.9 kPa
• TYPE 8113 & 8115: 6.9 – 103.4 kPa
– Vacuum Setpoint Range:
• TYPE 8110 & 8115: –0.2 – –4.3 kPa
• TYPE 8112 & 8113: –4.3 – –82 kPa
– Design Standard: API 2000
– End Connections: ANSI B16.5 150LB RF flanges (customizable)
– Body Materials: Aluminum alloy, carbon steel, stainless steel (optional)
– Seal Options: FEP diaphragm standard; other soft or hard seals optional

– Structure: Modular

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
