ALPHEUS Signal Butterfly Valve – 4" – 250 PSI – Manual Handwheel

ReflowX SKU: REF-7119

Product Details

Quantity

30
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ALPHEUS
Equipment code

Get Quotation Whatsapp

Short Description

4" ALPHEUS signal butterfly valve with manual handwheel and feedback signal feature. Rated for 250 PSI and ideal for fire protection and water control.

Description

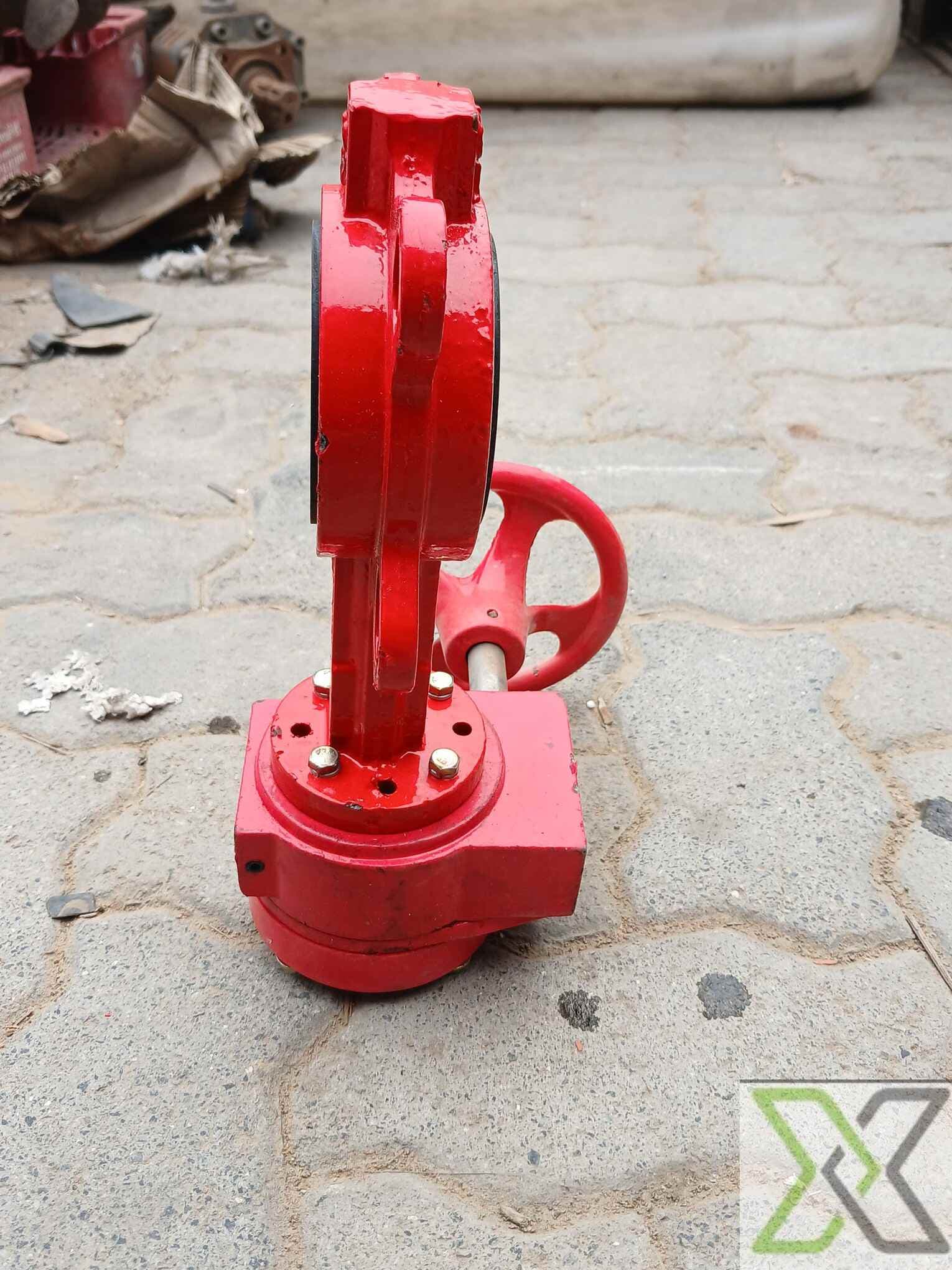

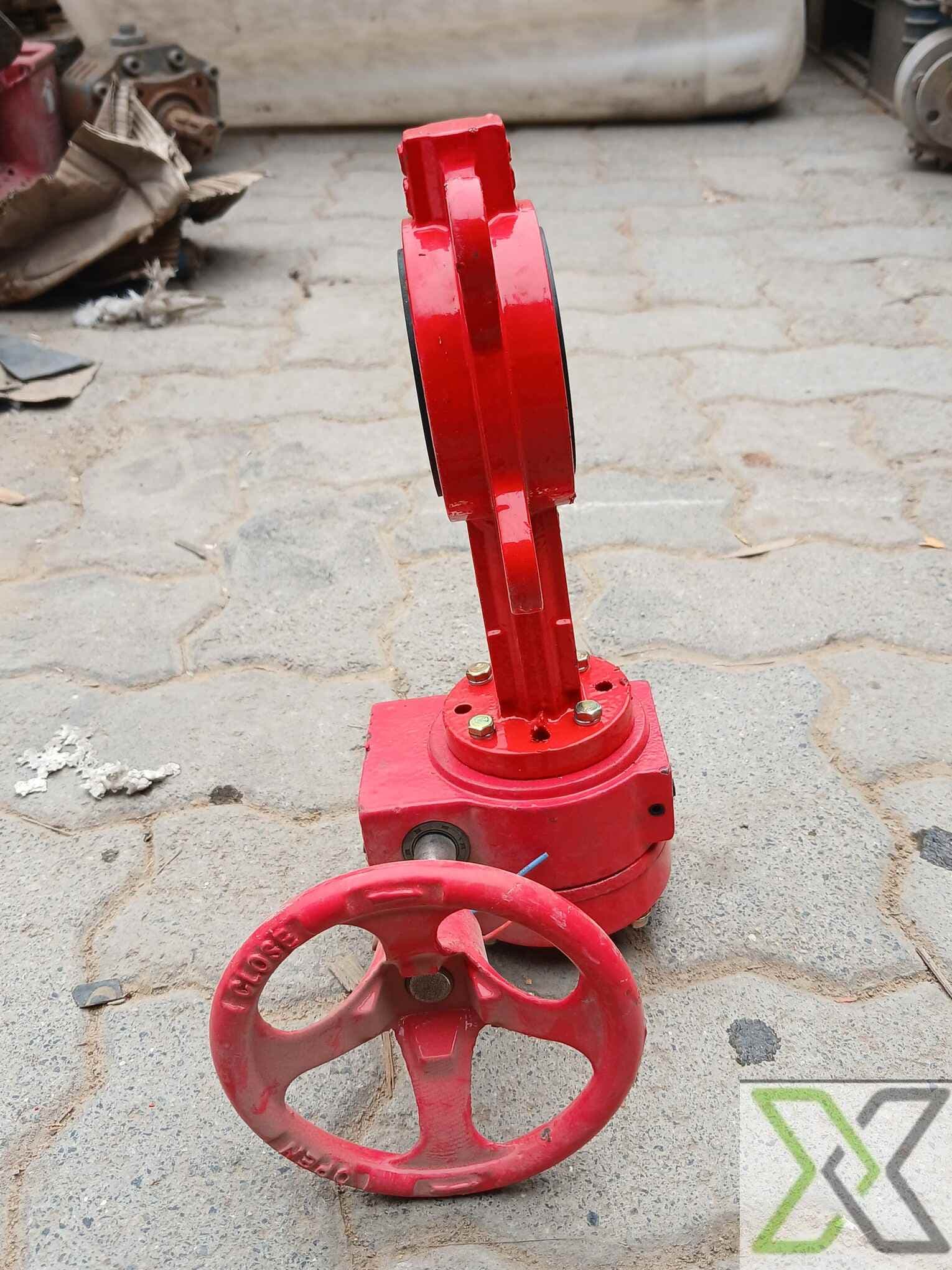

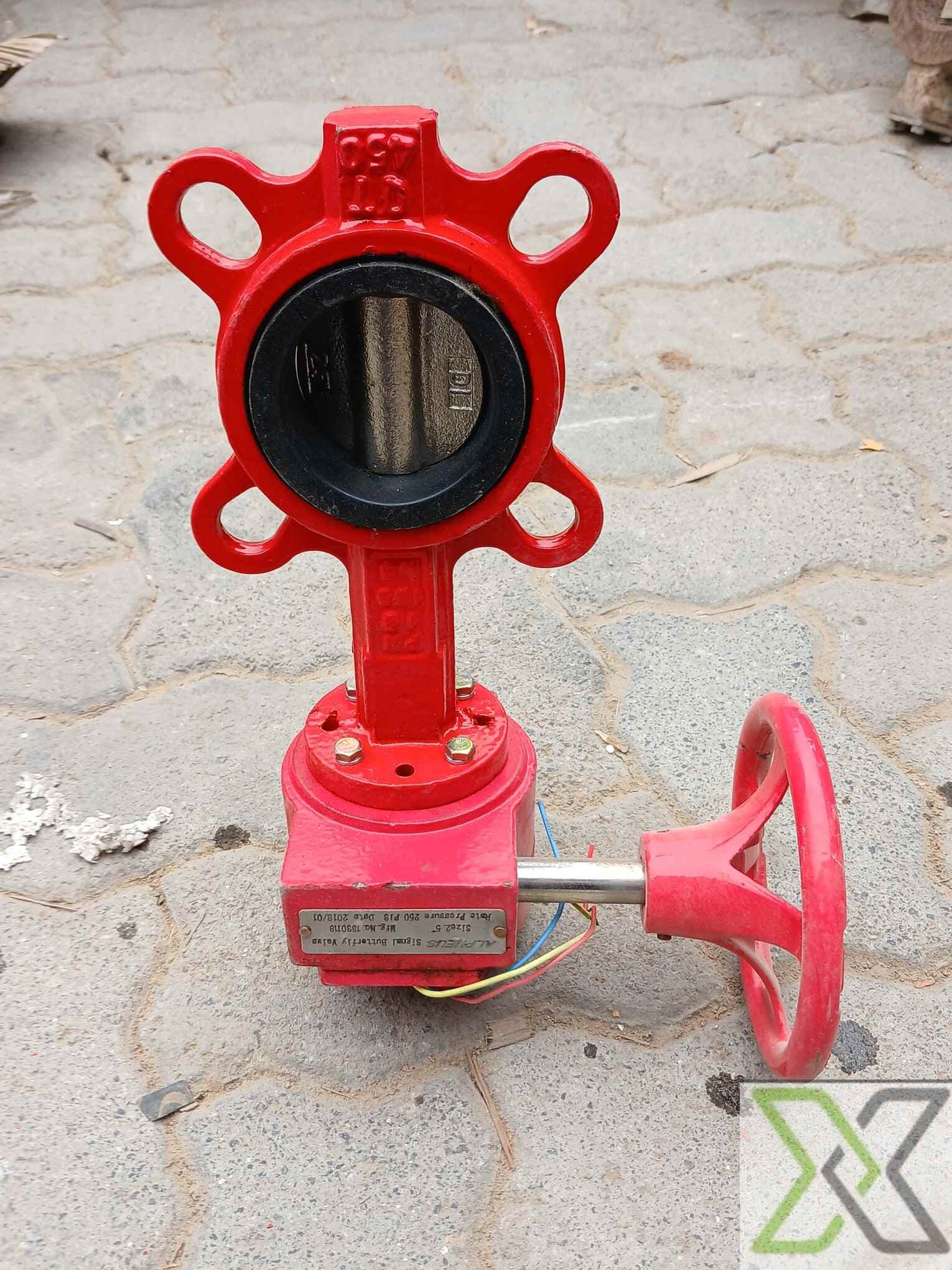

ALPHEUS Signal Butterfly Valve – 4" – 250 PSI – Manual Handwheel

Available for sale is a 4-inch ALPHEUS Signal Butterfly Valve, engineered for reliability in fluid control systems requiring both manual operation and signal feedback. Painted in high-visibility red, this valve is ideally suited for fire protection systems, water distribution, and HVAC applications. The model features a manual handwheel operator with an integrated signal feedback mechanism for system monitoring.

Constructed to handle pressures up to 250 PSI, it provides dependable shut-off and control in industrial and municipal environments. This unit was manufactured in January 2018 and is marked with serial number 1850007.

Specifications:

– Manufacturer: ALPHEUS
– Type: Signal Butterfly Valve
– Size: 4 inches
– Rated Pressure: 250 PSI
– Operation: Manual Handwheel with Signal Feedback

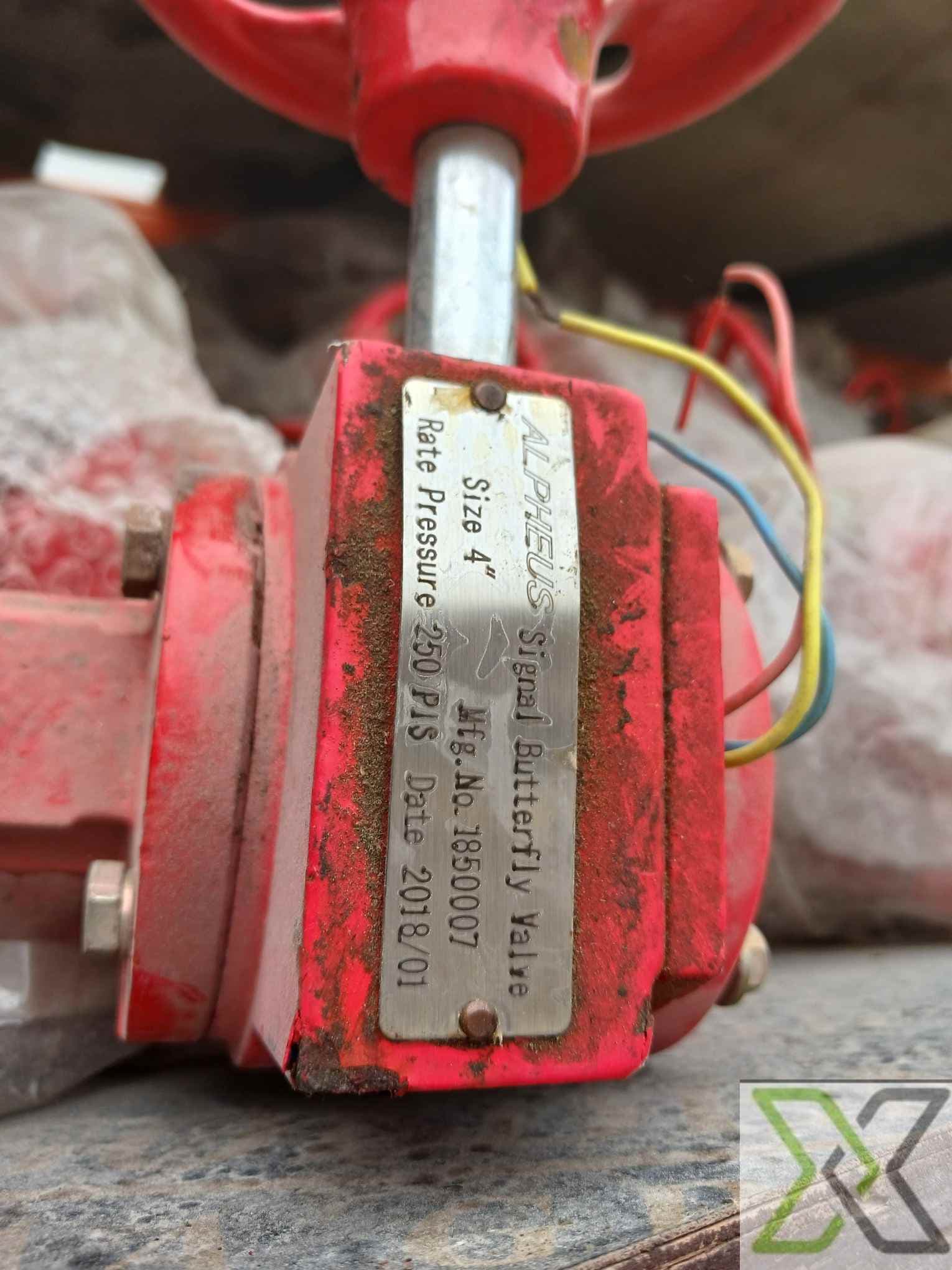

– Manufacturing No.: 1850007
– Date of Manufacture: January 2018
– Color: Red
– Location: UAE
– Condition: Used
– Signal feedback capability for control systems
– Manual handwheel for reliable operation
– Designed for pressurized environments up to 250 PSI
– Corrosion-resistant coating for field longevity
– Easy installation with standard flange connections

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2018
ISO 15926 Pt 4	10554
Model Number	1850007
Year of Manufacturing	2018
Height	286 mm
Width	158.5 mm
Length	85.5 mm
Weight	2.0 kg
Color	Red
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	last position upon failure
Fluid Name	Water
Full Opening Valve	Yes
Nominal Diameter	4 inches
Normal Operating Pressure	250 PSI
Normal Operating Temperature	up to 120°C
Piping Class	Class 150
UNSPSC Code	40141600
