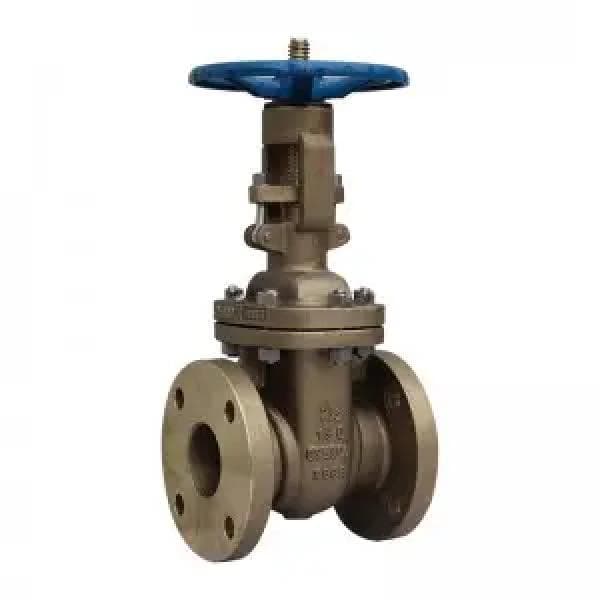

NSW Aluminium Bronze Gate Valve – ANSI Class 150 to 2500, NPS 2" to 48"

The NSW Aluminium Bronze Gate Valve is designed to meet the stringent requirements of industrial, marine, and chemical service applications. Manufactured in corrosion-resistant aluminium bronze and high-alloy cast materials, this valve features a rising stem, outside screw & yoke (OS&Y) configuration, and a choice between flexible or solid wedge discs. Available in sizes ranging from NPS 2" to 48" and pressure classes from ANSI 150 to 2500, it offers superior durability in aggressive environments. Fully compliant with global standards such as API 600, API 603, and ASME B16.34, the valve includes options for RF, RTJ, or BW ends and supports fire-safe and NACE-compliant designs. The design ensures zero leakage, anti-blowout stem, renewable seat rings, and pressure-sealed or bolted bonnet options, making it suitable for high-integrity applications.

Specifications:

– Manufacturer: NSW
– Valve Type: Gate Valve
– Size Range: NPS 2" to 48"
– Pressure Class: ANSI Class 150 to 2500
– Temperature Range: –20°C to 200°C (–4°F to 392°F)
– End Connections:
 • Flanged Ends – ASME B16.5 / ASME B16.47 / MSS SP-44 (NPS 22 only)
 • Socket Weld – ASME B16.11
 • Butt Weld – ASME B16.25
 • Screwed Ends – ANSI/ASME B1.20.1
– Design Standard: API 600, API 603, ASME B16.34
– Face-to-Face Standard: ASME B16.10
– Testing & Inspection: API 6D, API 598
– Fire Safe Design: API 6FA, API 607
– Corrosion Compliance: NACE MR-0175 / MR-0103, ISO 15848
– Material (Body & Components):
 • Aluminium Bronze
 • Other options: A216 WCB, WC6, WC9, A350 LCB, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A/6A, Alloy 20, Monel, Inconel, Hastelloy
– Stem Design: Rising Stem, OS&Y
– Bonnet Type: Bolted Bonnet or Pressure Seal Bonnet
– Disc Type: Flexible or Solid Wedge
– Bore Type: Full Bore or Reduced Bore
– Seat Type: Renewable Seat Rings
– Sealing Class: Zero Leakage
– Stem Features: Anti-Blowout Stem
– Optional Testing: PMI, UT, RT, PT, MT
