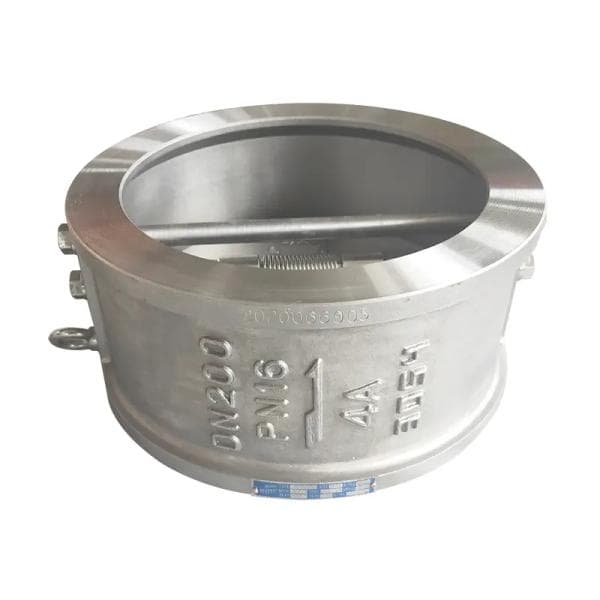

NSW API 594 Check Valve – Class 150 to 2500, NPS 2" to 48"

The NSW API 594 check valve is engineered for high-efficiency non-return operation in water treatment, petrochemical, HVAC, and industrial piping systems. Designed to prevent backflow of fluid automatically, these check valves operate via the flow-induced movement of the valve disc. Offered in dual plate, single plate, and retainerless designs, with end connections including wafer, lug, and flanged types, the valves are manufactured using a wide selection of materials such as WCB, stainless steel, duplex, nickel alloys, and bronze. Sizes range from NPS 2" to 48", covering pressure classes from ANSI Class 150 to 2500. Manufactured per API 594 and tested according to API 598, these valves ensure reliable sealing, minimal pressure drop, and long service life.

Specifications:

– Manufacturer: NSW
– Valve Type: Check Valve
– Size Range: NPS 2" to 48"
– Pressure Class: ANSI Class 150 to 2500
– End Connection Types:
 • Wafer
 • Flanged (RF, FF, RTJ)
– Body Materials Available:
 • Cast Iron
 • Ductile Iron
 • ASTM A216 WCB
 • ASTM A351 CF3, CF8, CF3M, CF8M
 • ASTM A995 4A, 5A (Duplex)
 • ASTM A352 LCB, LCC, LC2
 • Monel, Inconel, Hastelloy, UB6
 • Bronze, C95800
– Disc Configuration: Dual Plate or Single Plate
– Design Standard: API 594
– Face-to-Face Standard: ASME B16.10, EN 558-1
– Flange Standards: ASME B16.5, ASME B16.47, MSS SP-44 (for NPS 22 only)
– Test & Inspection: API 598
– Fire Safe Design: Available on request (per API 6FA, API 607)
– Corrosion Compliance: NACE MR-0175, MR-0103, ISO 15848
– Optional Testing Methods: PMI, UT, RT, PT, MT
