API 600 Cast Steel Gate Valve – NSW | NPS 2" to 48", Class 150–2500

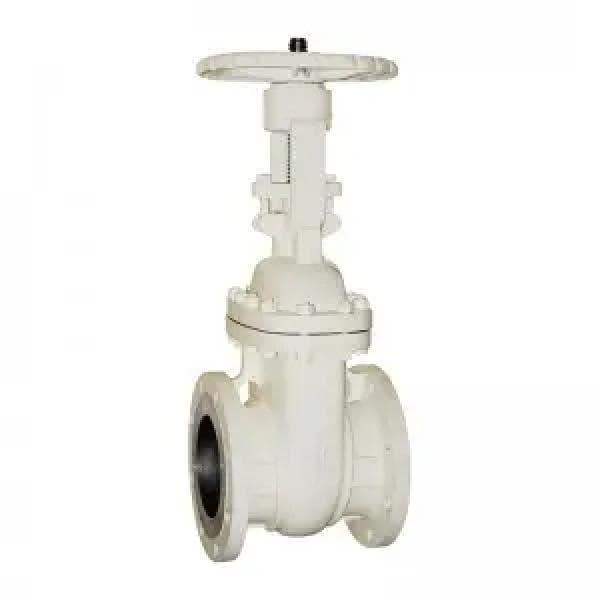

The NSW API 600 Cast Steel Gate Valve is a high-integrity valve engineered for shut-off applications in demanding industrial environments. These valves are available in sizes from NPS 2 to 48 inches and pressure classes from Class 150 to Class 2500, supporting a wide range of operational pressures and temperatures (-20°C to 200°C / -4°F to 392°F).

Constructed from robust forged and cast materials such as A216 WCB, WC6, WC9, A351 CF8/CF8M, and advanced alloys like Monel, Inconel, and Hastelloy, the valve ensures mechanical reliability and corrosion resistance. The valve design features an outside screw and yoke (OS&Y), rising stem, bolted or pressure seal bonnet, and flexible or solid wedge options to deliver enhanced sealing and long-term performance.

Meeting rigorous industry standards including API 600, API 603, and ASME B16.34, the NSW gate valve ensures compatibility with most industrial piping systems. Fire-safe by API 6FA/API 607 and tested per API 598/API 6D, the valve is also available with renewable seat rings and various flange, butt-weld, socket weld, and screwed end configurations. It’s ideal for applications in oil & gas, petrochemical, power, and general industrial services.

Specifications:

– Manufacturer: NSW (Newsway Valve)
– Valve Type: Gate Valve
– Size Range: NPS 2" to 48"
– Pressure Class: ANSI Class 150 to 2500
– Temperature Range: -20°C to 200°C (–4°F to 392°F)
– End Connections:
 • Flange Ends (ASME B16.5 / B16.47 / MSS SP-44 for NPS 22 only)
 • Socket Weld (ASME B16.11)
 • Butt Weld (ASME B16.25)
 • Screwed Ends (ANSI/ASME B1.20.1)
– Body Material Options (Cast): A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A/5A/6A
– Body Material Options (Forged): A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5
– Other Alloys Available: Alloy 20, Monel, Inconel, Hastelloy
– Bonnet Type: Bolted Bonnet or Pressure Seal Bonnet
– Wedge Type: Flexible or Solid
– Stem Type: Outside Screw & Yoke (OS&Y), Rising Stem
– Seat Rings: Renewable
– Stem Design: Anti Blow-Out
– Bore Options: Full Bore or Reduced Bore
– Design Standards: API 600, API 603, ASME B16.34
– Face-to-Face Standard: ASME B16.10
– Testing & Inspection: API 598, API 6D
– Fire Safe Compliance: API 6FA, API 607
– Corrosion Standards: NACE MR-0175, MR-0103, ISO 15848
– NDT Options: PMI, UT, RT, PT, MT
– Leakage Performance: Zero Leakage

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
