Short Description

Forged steel globe valve designed as per API 602 standard, suitable for pressure classes up to 2500 and available in various materials including A105, F316, Monel, and more. Offered with SW, NPT, BW, or flanged ends.

Description

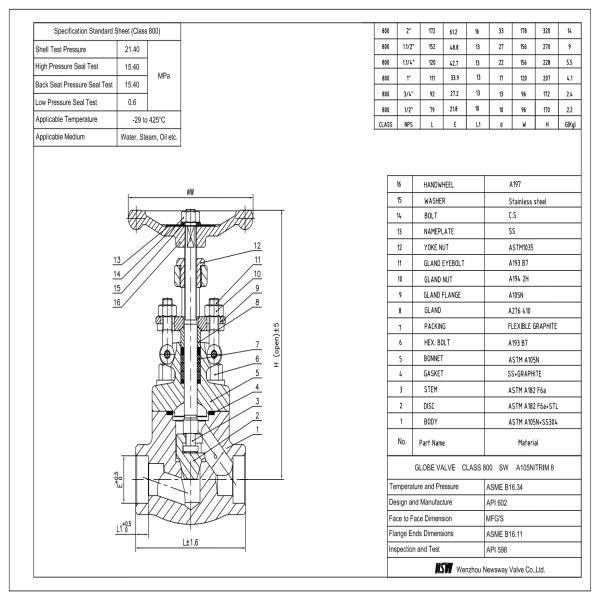

API 602 Forged Steel Globe Valve | Class 150 to 2500, 1/2”–2” – NSW

The NSW API 602 Globe Valve is a precision-engineered forged steel valve built for high-pressure applications in oil, gas, petrochemical, and industrial services. Conforming to API 602 and ASME B16.34 standards, this globe valve is ideal for critical shut-off control, offering enhanced performance, durability, and safety in demanding service conditions.

Designed with an outside screw and yoke (OS&Y), rising stem, and bolted or welded bonnet options, it supports multiple end connections including flanged, socket weld, butt weld, and threaded. Its integral backseat and spiral wound gasket ensure optimal sealing performance. The valve is fire-safe and can be supplied to meet NACE MR-0175/0103 and ISO 15848 for sour and fugitive emission services.

Specifications:

General Information
– Valve Type: Globe Valve
– Design Standard: API 602, ASME B16.34, BS 5352
– Sizes: NPS 1/2" to 2" (DN15 to DN50)
– Pressure Classes: Class 800, 150, 300, 600, 900, 1500, 2500

Body & Trim Materials (Forged)
– Carbon Steel: ASTM A105, A350 LF2
– Alloy Steel: A182 F5, F11, F22
– Stainless Steel: A182 F304(L), F316(L), F321, F347
– Duplex & Special Alloys: F51, Alloy 20, Monel, Inconel, Hastelloy

Design Features
– Forged Steel Construction
– Outside Screw and Yoke (OS&Y), Rising Stem
– Non-Rising Handwheel
– Integral Backseat
– Reduced Bore or Full Port Options
– Solid Wedge, Renewable Seat Rings
– Spiral Wound Gasket
– Bonnet Types: Bolted Bonnet, Welded Bonnet, Pressure Sealed Bonnet
– Actuation: Manual, Pneumatic, Electric, Gas-Liquid Linkage

End Connections
– Flanged Ends: ASME B16.5
– Socket Weld Ends: ASME B16.11
– Butt Weld Ends: ASME B16.25
– Screwed Ends: ANSI/ASME B1.20.1

Testing & Compliance
– Test & Inspection: API 598
– Fire Safe Design
– NACE Compliance: MR-0175 / MR-0103
– Fugitive Emission Compliance: ISO 15848
– Optional NDT: PMI, UT, RT, PT, MT
