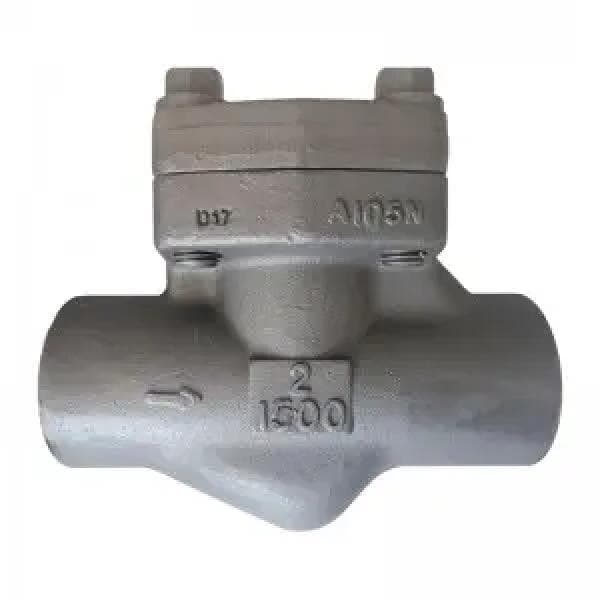

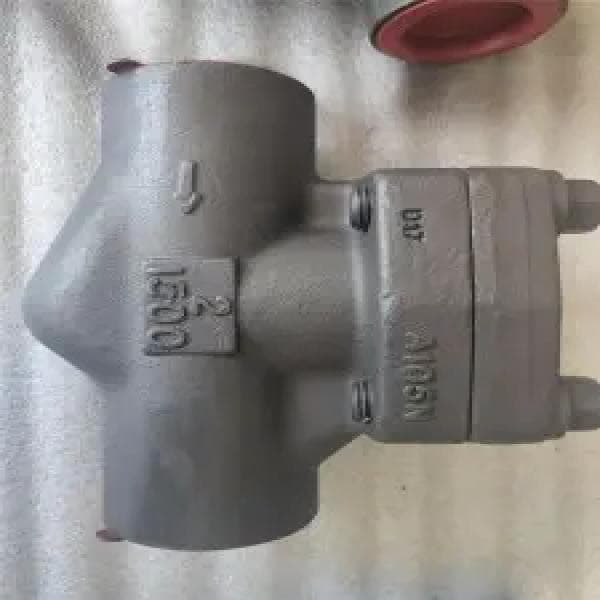

NSW API 602 Forged Steel Piston Check Valve – Class 150 to 2500, NPS 1/2" to 2"

The NSW API 602 Piston Check Valve is a forged steel, non-return valve engineered for critical flow control in high-pressure applications. Available in sizes from NPS 1/2" to 2", this valve is designed to prevent reverse flow automatically without operator intervention, ideal for compact pipeline installations across the oil & gas, chemical, and power sectors.

Manufactured according to API 602, ASME B16.34, and BS 5352, it features either piston, ball, or swing-type internals based on process needs. The valve offers options for integral body seat for piston/ball check types or separated seat ring design for swing check versions. It supports a wide variety of end connections including Socket Weld (SW), Butt Weld (BW), NPT, RF, FF, and RTJ.

These valves are compliant with API 598 for pressure testing and API 6FA/API 607 for fire-safe design. NACE MR0175/MR0103 and ISO 15848 compliance are also available for sour service and fugitive emission control.

Specifications:

Valve Details
– Valve Type: Piston Check Valve (also available in Ball or Swing Type)
– Size Range: NPS 1/2" to 2" (DN15 to DN50)
– Pressure Class: Class 150, 300, 600, 800, 900, 1500, 2500
– Bore Type: Reduced Bore or Full Port
– Flow Pattern: T-Pattern or Y-Pattern
– Operation: Non-actuated (passive flow control)

Material Options (Forged)
– Carbon Steel: A105, A350 LF2, LF3, LF5
– Stainless Steel: A182 F304, F304L, F316, F316L
– Duplex & Super Duplex: A182 F51, F53
– Other Alloys: Available on request

End Connections
– Socket Weld: ASME B16.11
– Butt Weld: ASME B16.25
– Flanged: ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22)
– Threaded (NPT): ANSI/ASME B1.20.1
– Face Types: RF, FF, RTJ

Design & Compliance
– Design Standards: API 602, ASME B16.34, BS 5352
– Face-to-Face: MFG’s standard
– Test Standard: API 598
– Fire Safe: API 6FA, API 607
– Sour Service: NACE MR-0175 / MR-0103
– Emission Control: ISO 15848
– Gaskets: Spiral Wound or Oval Ring Joint
– Inspection: PMI, UT, RT, PT, MT

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
