NSW API 602 Forged Steel Swing Check Valve – Class 150 to 2500, NPS 1/2" to 2"

The NSW API 602 Swing Check Valve is a forged steel, unidirectional valve designed to prevent reverse flow in critical process pipelines. Available in sizes from NPS 1/2” to 2” and pressure classes ranging from 150 to 2500, it offers versatile integration into compact and high-pressure systems in oil & gas, refining, petrochemical, and utility sectors.

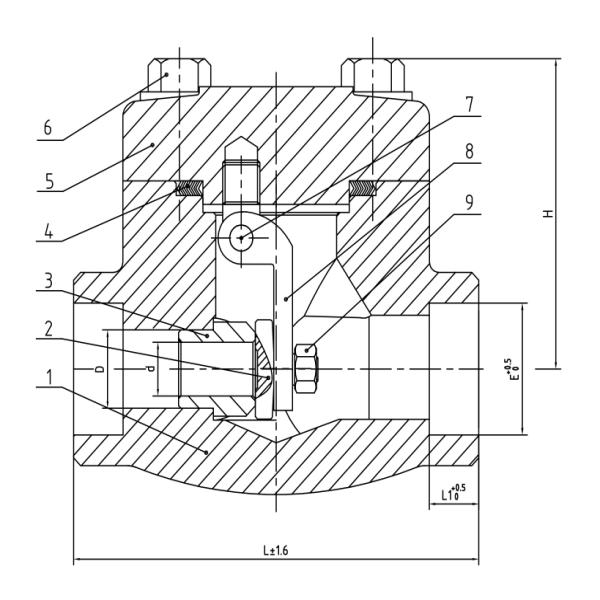

The valve is manufactured in accordance with API 602, ASME B16.34, and BS 5352 standards. Designed with a separated seat ring, the swing check configuration allows free swing of the disc for full-bore, low-resistance flow. Materials include forged carbon steels, stainless steels, and duplex alloys.

End connections are available in Socket Weld, Butt Weld, NPT, and a full range of flanged types (RF, FF, RTJ). These valves also support fire-safe certification to API 6FA/API 607 and sour service compliance to NACE MR-0175/0103. Testing is per API 598 and optional inspections include PMI, UT, RT, PT, and MT.

Specifications:

Valve Details
– Valve Type: Swing Check Valve
– Design: Forged Steel, Non-return, Swing Disc
– Size Range: NPS 1/2” to 2” (DN15 to DN50)
– Pressure Ratings: Class 150, 300, 600, 800, 900, 1500, 2500
– Bore Type: Reduced Bore or Full Port
– Body Pattern: T-Pattern or Y-Pattern
– Operation: Passive (No actuator)

Material Options
– Carbon Steel: ASTM A105, A350 LF2, LF3, LF5
– Stainless Steel: ASTM A182 F304, F304L, F316, F316L
– Duplex & Super Duplex: ASTM A182 F51, F53
– Others: Available upon request

End Connections
– Socket Weld (SW): ASME B16.11
– Butt Weld (BW): ASME B16.25
– Threaded (NPT): ANSI/ASME B1.20.1
– Flanged: ASME B16.5, B16.47, MSS SP-44
– Face Types: RF, FF, RTJ

Standards & Certifications
– Design & Manufacture: API 602, ASME B16.34, BS 5352
– Testing: API 598
– Fire-Safe: API 6FA, API 607
– Sour Service: NACE MR-0175 / MR-0103
– Fugitive Emissions: ISO 15848
– Optional Testing: PMI, UT, RT, PT, MT
– Face-to-Face: As per MFG’s standard
– Gaskets: Spiral Wound or Oval Ring Joint

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
