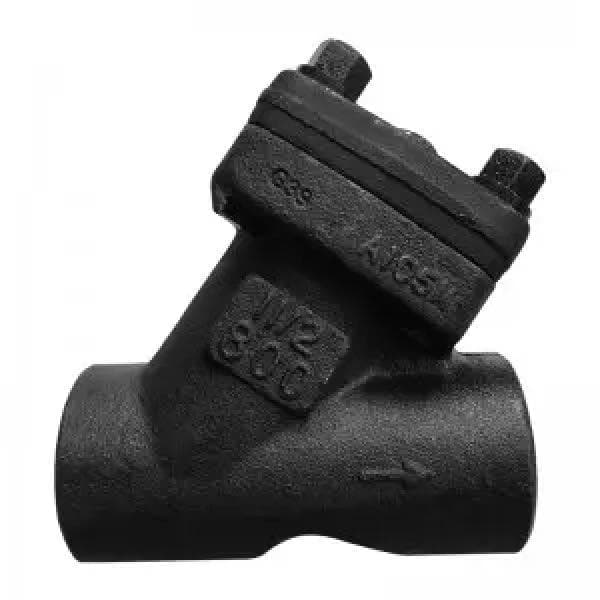

NSW API 602 Y-Type Forged Strainer – Class 800, A105 Body, SW/NPT/BW Ends

The NSW API 602 Y-Type Forged Strainer is a compact and durable filtration device used to remove solid contaminants from process fluids in small-bore, high-pressure piping systems. Designed and manufactured to API 602 and ASME B16.34 standards, this strainer features a robust forged A105 carbon steel body with a bolted bonnet for secure closure and easy maintenance access. The internal filter element captures particulate matter such as sand, rust, and debris, protecting downstream equipment like control valves, pumps, and instrumentation. The Y-pattern construction ensures low pressure drop while offering flexible installation options. End connections are available in socket weld (SW), threaded (NPT), or butt weld (BW) configurations, making it suitable for oil & gas, petrochemical, and power plant applications.

Specifications:

– Product Type: Y-Type Forged Strainer
– Size Range: 1/2" to 2" (DN15 to DN50)
– Pressure Class: 800# (Also available in Class 150–2500)
– Body Material: ASTM A105 (Carbon Steel)
– Other Material Options: A182 F304/F304L, F316/F316L, F51, F53, A350 LF2/LF3/LF5
– Bonnet Type: Bolted Bonnet
– Filter Cartridge: Perforated/Mesh (Removable)
– End Connections:
  – Socket Weld (ASME B16.11)
  – Threaded/NPT (ASME B1.20.1)
  – Butt Weld (ASME B16.25)
  – Optional Flanged (ASME B16.5)
– Face-to-Face: As per BS 5352
– Design Standard: API 602, ASME B16.34
– Testing Standard: API 598
– Optional Features:
  – Fire Safe Design
  – Compliance with NACE MR-0175 / MR-0103
  – ISO 15848 Fugitive Emissions
  – NDE: PMI, UT, RT, PT, MT
– Installation Orientation: Horizontal or vertical
– Operation: Non-operable (Passive filtration)
– Applications: Filtration in process lines to protect equipment from solid impurities in oil, gas, steam, or water service
