NSW API 609 Butterfly Valve – Class 150–900, Eccentric Design, WCB/CF8M Body Options

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

High-performance butterfly valve per API 609, available from 1/2" to 80" in Class 150 to 900 pressure ratings. Cast WCB, CF8M, or exotic alloy body with wafer, lug, or flanged ends. Designed for on-off and throttling applications in industrial fluid systems.

Description

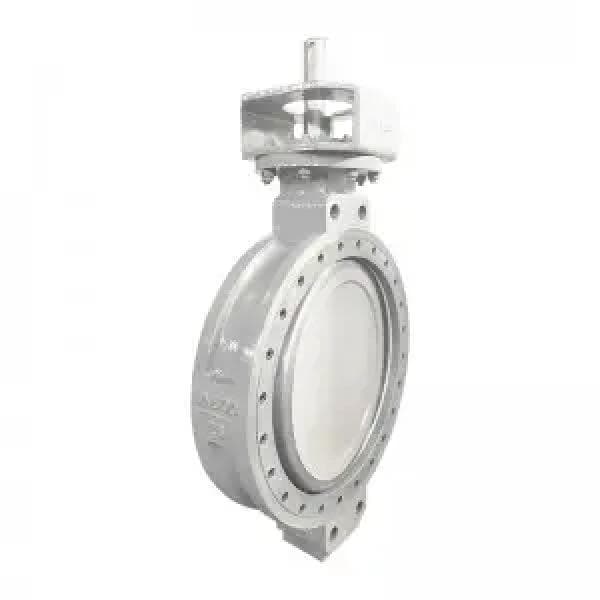

NSW API 609 Butterfly Valve – Class 150–900, Eccentric Design, WCB/CF8M Body Options

The NSW API 609 Butterfly Valve is a precision-engineered valve designed for on-off and modulating service in a wide variety of fluid systems. Manufactured in accordance with API 609, EN 593, and ISO 10631 standards, this butterfly valve is suitable for critical applications in the oil & gas, petrochemical, power, water treatment, and marine industries.

Available in a wide range of body materials including ASTM A216 WCB, A351 CF8M, A352 LCB, duplex and super duplex stainless steels, Monel, Inconel, Hastelloy, and C95800, the valve supports both corrosive and high-pressure environments. Face-to-face dimensions conform to API 609, ASME B16.10, and ISO 5752 Series 13.

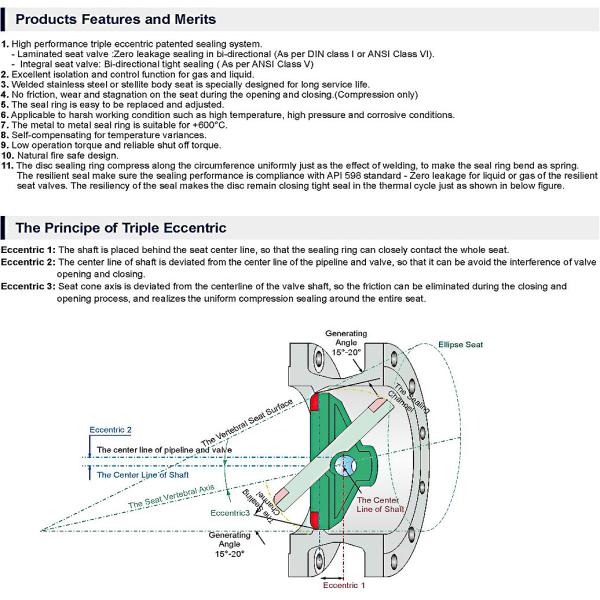

With soft-seated or metal-seated options, the valve is offered in concentric, double eccentric, or triple eccentric configurations depending on service requirements. Its disc rotates on a central axis to enable quick shutoff or precise throttling, with tight shutoff performance meeting API 598 and EN12266-1 leak standards. Fire-safe design per API 607, and available compliance with NACE MR0175 and ISO 15848 fugitive emission requirements.

Specifications:
– Valve Type: Butterfly Valve (Concentric / Double / Triple Eccentric)
– Operation: Manual, Gear, Electric, or Pneumatic (based on configuration)
– Size Range: 1/2" to 80" (DN15 to DN2000)
– Pressure Class: 150#, 300#, 600#, 900#
– Body Materials:
– Carbon Steel: ASTM A216 WCB
– Stainless Steel: ASTM A351 CF8, CF3, CF8M, CF3M
– Low Temp Carbon Steel: ASTM A352 LCB, LCC, LC1
– Chrome-Moly: WC6, WC9
– Duplex/Super Duplex: A995 4A, 5A; 2205, 2507
– Other Alloys: Monel, Inconel, Hastelloy, C95800, 904L
– Disc & Seat Options: Soft Seated / Metal-to-Metal
– End Connections:
– Wafer (API 609, ASME B16.11)
– Lug (API 609, ASME B16.11)
– Flanged (ASME B16.5, B16.47 Series B)
– Face-to-Face Dimensions: API 609, ASME B16.10, ISO 5752 Series 13, EN 558
– Design Standards: API 609, EN 593, ISO 10631
– Testing Standards: API 598, EN 12266-1, ISO 5208
– Fire Safe Design: API 607 compliant
– Optional Standards:
– NACE MR-0175 / MR-0103
– ISO 15848 (Fugitive Emissions)
– NDE: PMI, UT, RT, PT, MT
– Temperature Range: -10°C to +150°C (higher for metal-seated types)
– Media Compatibility: Water, air, steam, gas, slurry, oil, seawater, corrosive fluids
– Applications: Oil & gas, chemical, petrochemical, power generation, metallurgy, marine, PSA systems, HVAC, process control, utility isolation

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
