NSW API 6D Ball Valve – Class 150–2500, WCB/F316/F51, Trunnion or Floating Design

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

High-performance API 6D ball valve available in sizes 2" to 60", pressure class 150 to 2500, with WCB, F316, or duplex body materials. Features full or reduced bore, trunnion-mounted or floating ball, DBB/DIB capability, and fire-safe design. End connections include RF, RTJ, BW, and SW.

Description

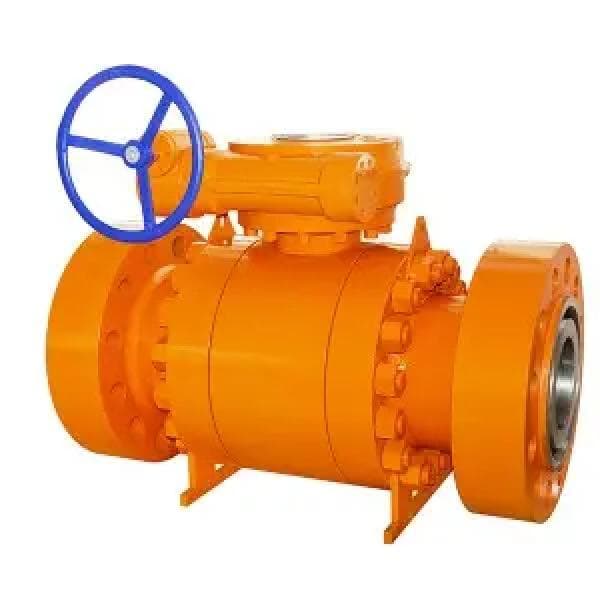

NSW API 6D Ball Valve – Class 150–2500, WCB/F316/F51, Trunnion or Floating Design

The NSW API 6D Ball Valve is a heavy-duty isolation valve designed for high-integrity pipeline service in oil & gas, petrochemical, and power industries. Manufactured in accordance with API 6D and ASME B16.34, it is available in floating or trunnion-mounted configurations with full or reduced bore. Sizes range from 2" to 60" and pressure ratings from Class 150 to Class 2500, making it ideal for low to high-pressure systems.

The valve is offered in side-entry, top-entry, or fully welded body designs. Standard features include anti-blowout stem, anti-static device, fire-safe construction per API 6FA/API 607, and optional emergency seat/stem sealant injection. With options for double block & bleed (DBB) or double isolation & bleed (DIB), it is suitable for critical shutoff and control applications.

The ball valve’s internal cavity offers low turbulence and minimal pressure drop. Materials include cast or forged carbon steel, stainless steel, duplex, super duplex, and high-nickel alloys, allowing compatibility with water, gas, oil, acid, steam, and aggressive media.

Specifications:

– Valve Type: API 6D Ball Valve (Floating or Trunnion-Mounted)
– Operation: Manual, Gear, Electric, Pneumatic, or Hydraulic
– Size Range: NPS 2" to NPS 60"
– Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
– Bore Options: Full Bore / Reduced Bore
– Body Design: 2-Piece, 3-Piece; Side Entry, Top Entry, or Welded Body
– End Connections:
– RF, FF, RTJ Flanged (ASME B16.5 / B16.47 / MSS SP-44)
– Socket Weld (ASME B16.11)
– Butt Weld (ASME B16.25)
– Screwed/NPT (ANSI B1.20.1)
– Face-to-Face: ASME B16.10, EN 558-1
– Body Materials:
– Cast: A216 WCB, A351 CF8/CF8M, CF3/CF3M, A352 LCB/LCC/LC2
– Duplex/Super Duplex: A995 4A, 5A, 2205, 2507
– High Alloys: Monel, Inconel, Hastelloy, UB6
– Forged: A105, A182 F304/F304L, F316/F316L, F51, F53, A350 LF2/LF3/LF5
– Seat Design: Floating Seat / Spring-Loaded Trunnion
– Sealing Options: Soft Seat / Metal-to-Metal / Oil-Sealed
– Fire Safe Design: API 6FA, API 607
– Testing Standards: API 598, API 6D, DIN 3230
– Special Features:
– Double Block & Bleed (DBB)
– Double Isolation & Bleed (DIB)
– Emergency Seat & Stem Injection
– Anti-Static Device
– Anti-Blowout Stem
– Cryogenic or High-Temp Extended Stem
– Applicable Standards: API 6D, ASME B16.34, NACE MR-0175/MR-0103, ISO 15848
– Applications: Pipeline isolation, tank farm control, gas distribution, chemical processing, power plant systems, offshore and onshore installations
– Temperature Range: -46°C to 200°C (depends on materials and sealing type)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
