ARI-Armaturen STEVI 405 Globe-Type Control Valve with Pneumatic Actuator

ReflowX SKU: REF-2027

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ARI-Armaturen
Equipment code

Get Quotation Whatsapp

Short Description

Globe-type modulating control valve with pneumatic actuator, rated PN16, suitable for steam, water, oils, and various process fluids. Ideal for precise flow regulation in industrial process systems.

Description

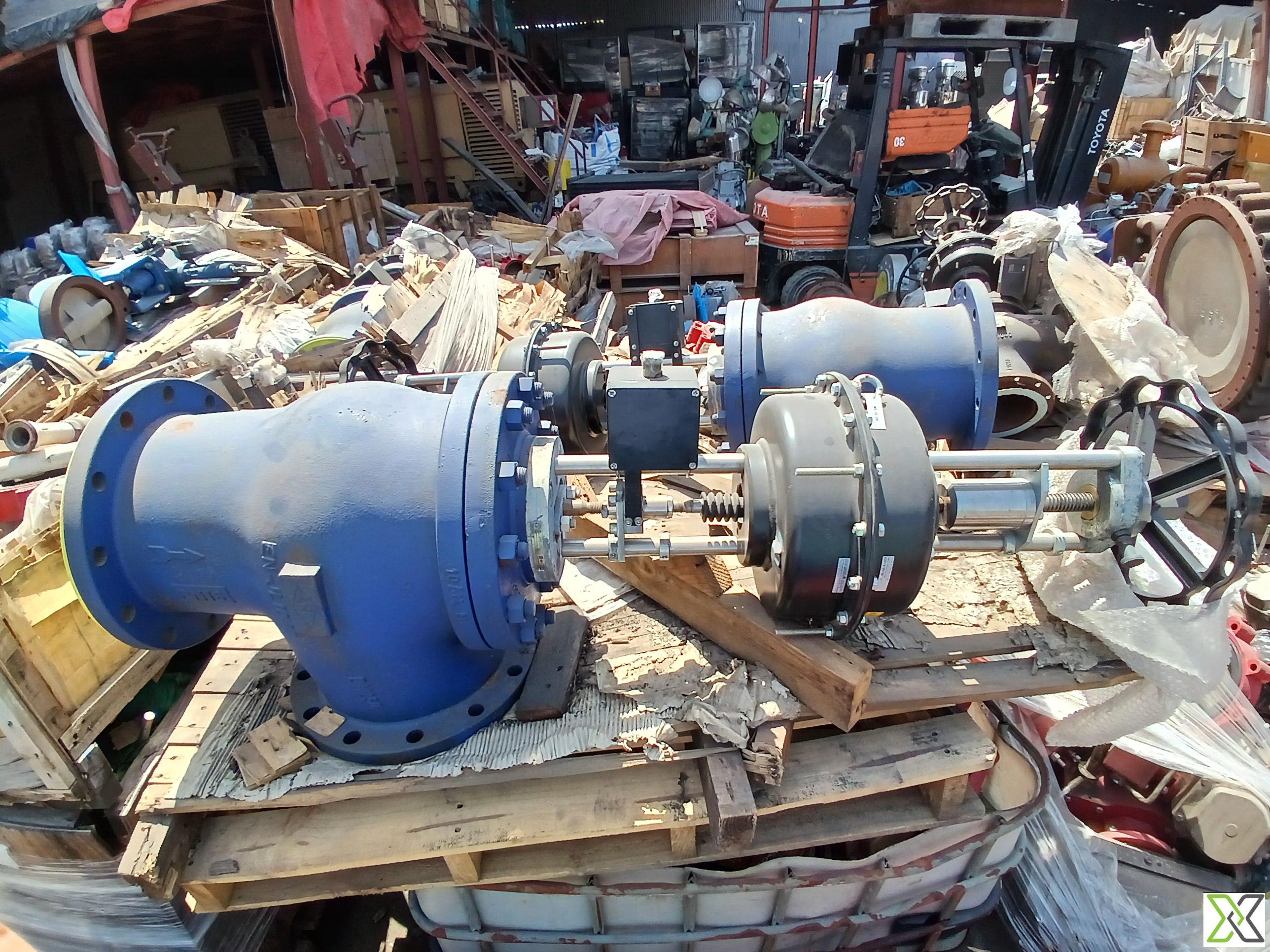

ARI-Armaturen STEVI 405 Globe-Type Control Valve with Pneumatic Actuator

The ARI-Armaturen STEVI 405 is a robust and versatile globe-type control valve designed for precise flow regulation in industrial process systems. Engineered in Germany, it is equipped with a pneumatic actuator (tag: WB-XV-590) for reliable control in both modulating and ON/OFF applications. This valve features a soft NBR seal, offering excellent compatibility with water, light oils, air, and industrial fluids, and ensures Class VI tight shutoff.

Constructed from EN-GJL-250 (cast iron) or EN-GJS-400-15 (ductile iron), the valve body is paired with internal trim components in stainless steel or bronze/brass alloy, depending on fluid compatibility. The valve supports linear or equal percentage flow characteristics and includes flanged ends in accordance with EN 1092-2 for easy integration into PN16 piping systems.

With a design pressure of 16 bar and service temperatures up to 100°C, this valve is ideal for HVAC, steam, and general utility service. The actuator supports standard pneumatic signals (3–15 psi) or can be configured with an electro-pneumatic positioner. Optional features include limit switches, solenoid valves (NAMUR interface), and fail-safe (open or close) spring-return configurations.

Specifications:

– Manufacturer: ARI-Armaturen GmbH & Co. KG (Germany)

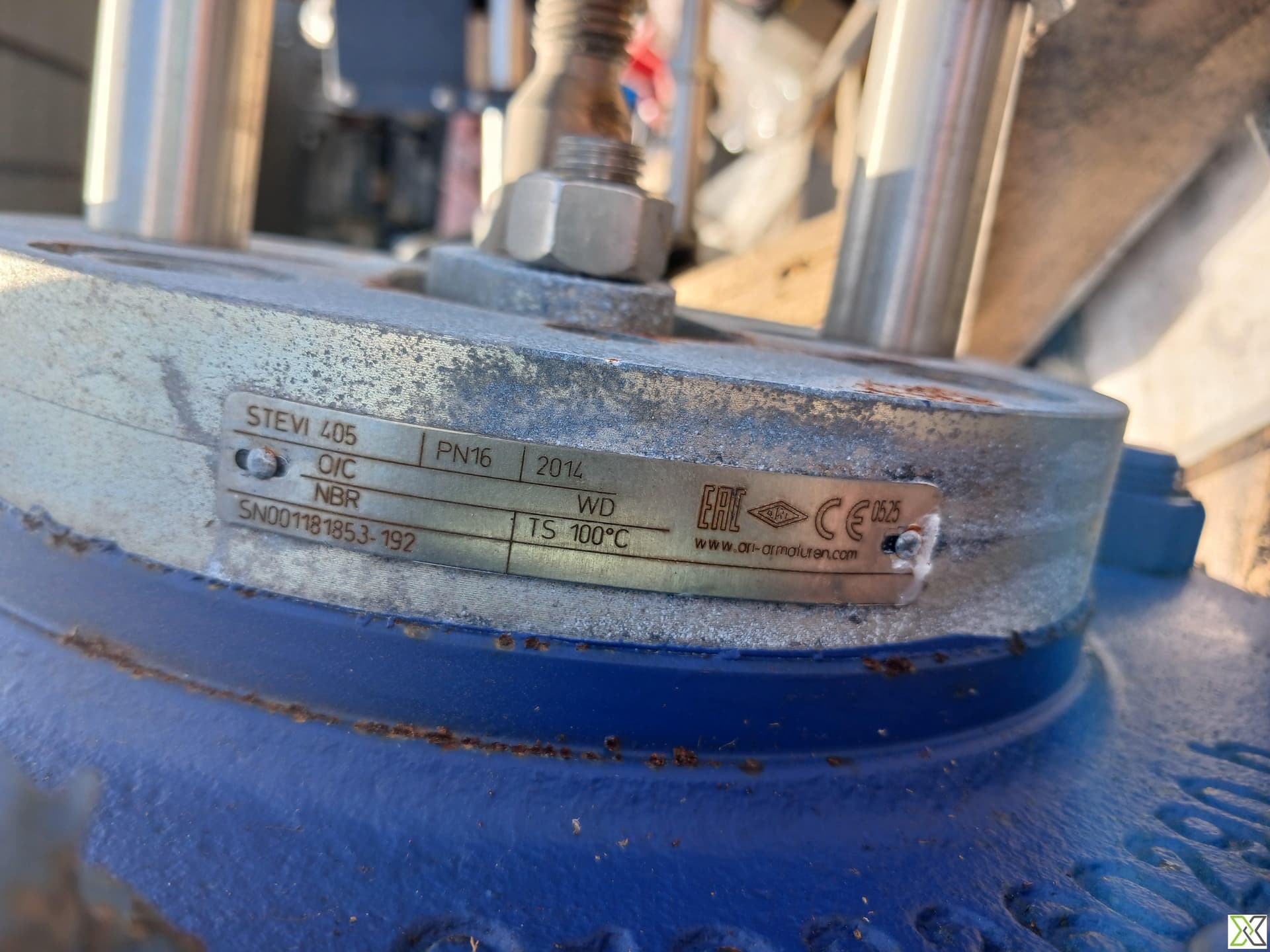

– Model: STEVI 405
– Valve Type: Globe Control Valve – Modulating

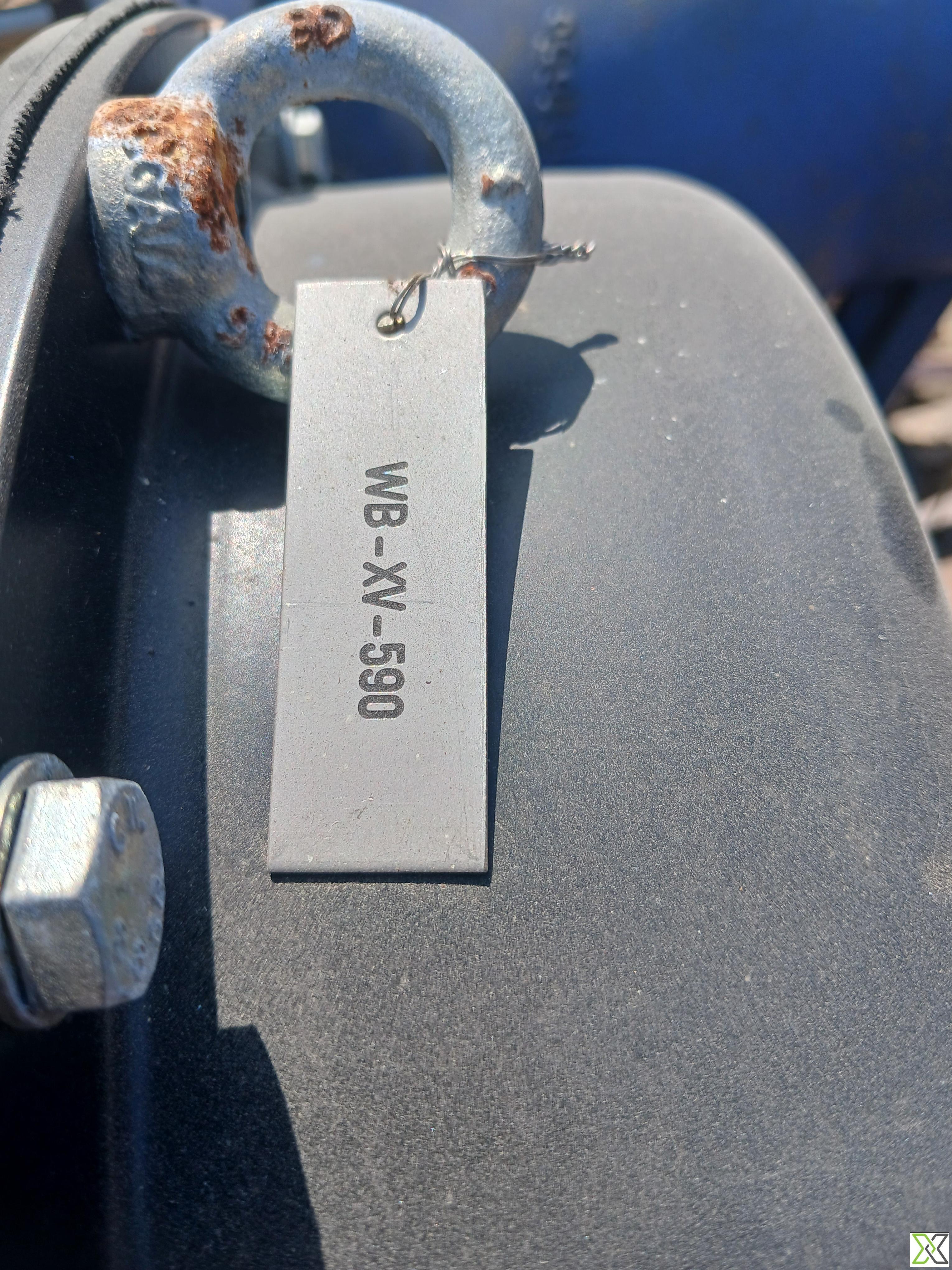

– Actuator Tag: WB-XV-590
– Actuation Type: Pneumatic – Single or Double Acting
– Control Signal: 3–15 psi (0.2–1.0 bar) or electro-pneumatic
– Pressure Rating: PN16 (16 bar / 232 psi)
– Temperature Rating: Max 100°C
– Seal Material: NBR (Nitrile Butadiene Rubber)
– Leakage Class: Class VI (soft seat) or Class IV (metal seat) – per ANSI/FCI 70-2
– Flow Characteristic: Linear or Equal Percentage (trim-dependent)
– Media Compatibility: Steam, water, air, oils, industrial fluids
– Valve Body Materials: EN-GJL-250 (cast iron) or EN-GJS-400-15 (ductile iron)
– Internal Trim Materials: Stainless steel, bronze, or brass alloy (application dependent)
– End Connections: Flanged per EN 1092-2 – PN16
– Mounting Standard: ISO 5211 compatible
– Mounting Orientation: Horizontal or vertical (actuator upright preferred)
– Flow Direction: Indicated by arrow on valve body
– Fail-Safe Position: Fail-open or fail-close (spring return actuator)
– Position Feedback: Optional – Limit switch or position transmitter
– Solenoid Interface: NAMUR standard compliant
– Design Temperature Range: 0°C to +100°C
– Piping System Compatibility: DIN/EN flanged PN16

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2014
ISO 15926 Pt 4	10554
Model Number	STEVI 405
Year of Manufacturing	2014
Height	250 mm
Width	150 mm
Length	196 mm
Weight	7.5 kg
Color	Industrial Grey
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Control Globe Valve
Failure Action	Spring Return
Fluid Name	Water, Steam, Light Oil, Air
Full Opening Valve	No
Nominal Diameter	DN25 to DN150
Normal Operating Pressure	16 bar (PN16)
Normal Operating Temperature	Up to 100°C
Piping Class	DIN PN16
UNSPSC Code	40141600
