Explosion-Proof Solenoid Valve Housing – 85V

ReflowX SKU: REF-7794

Product Details

Quantity

100
Availability (Lead Time)

2-4 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Luce, France
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty explosion-proof solenoid valve housing rated for 85V, 60 Hz, and 9W power consumption. Suitable for air, gas, and water in hazardous areas with flameproof Ex d protection. Made in Luce, France.

Description

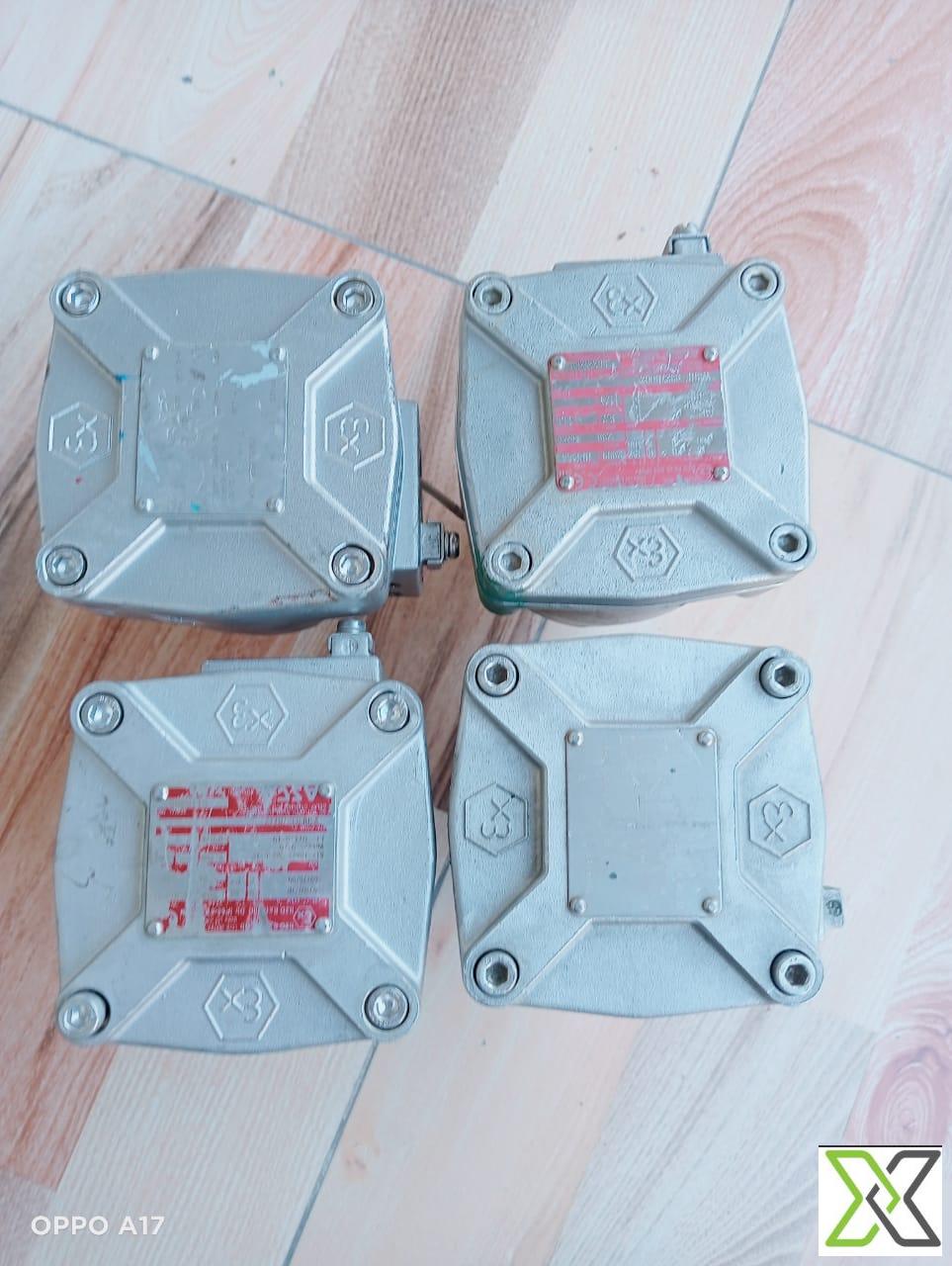

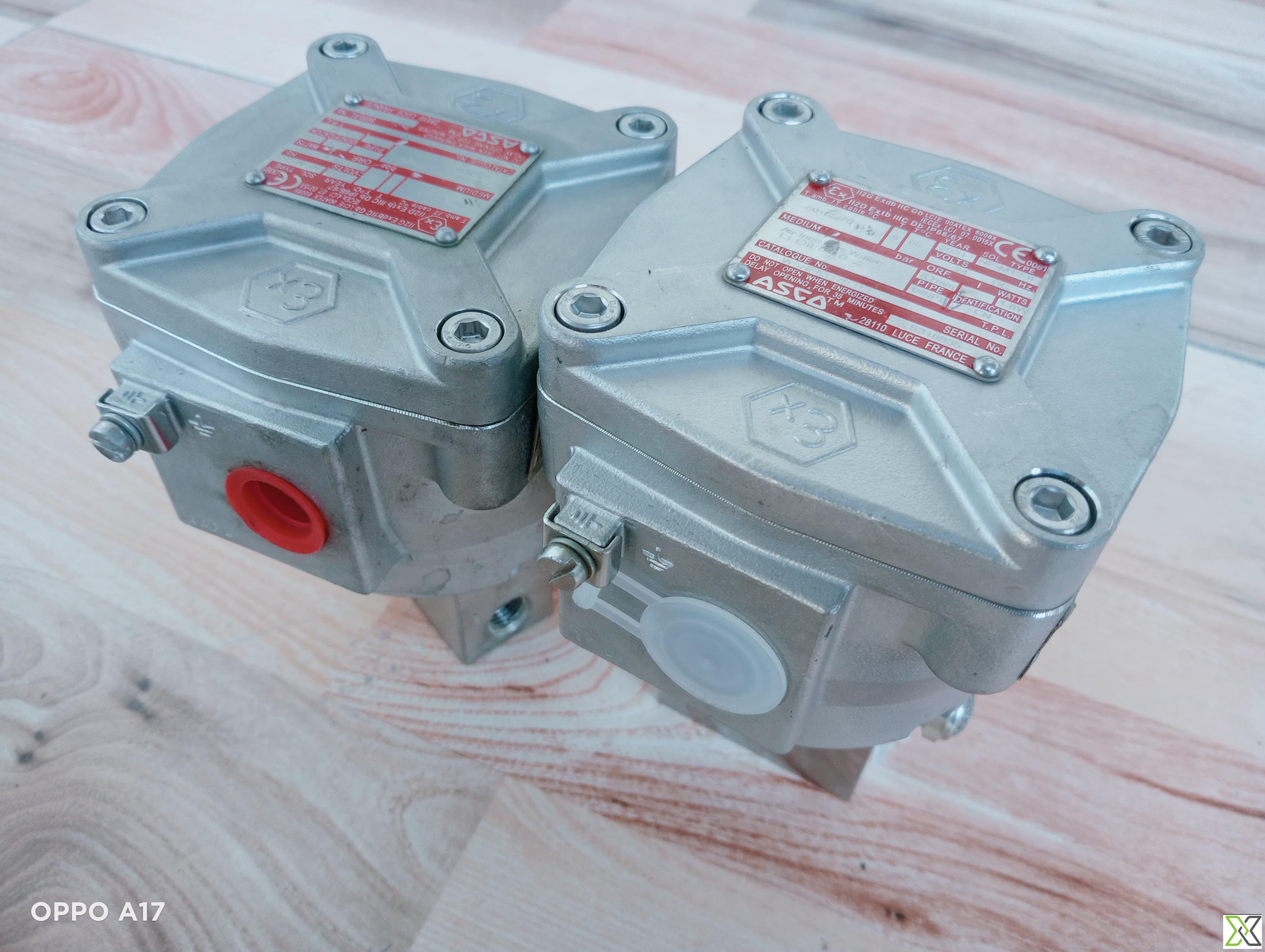

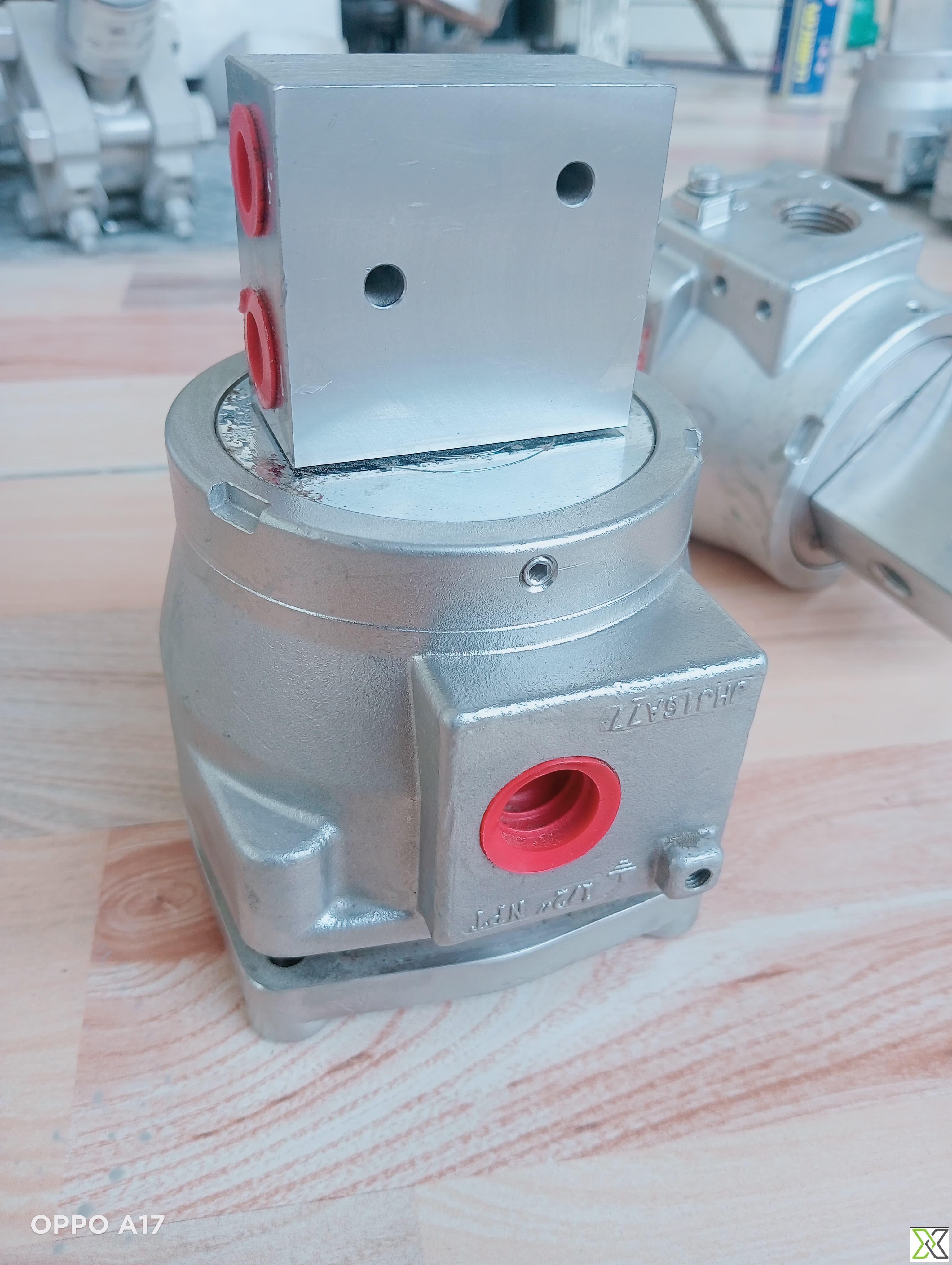

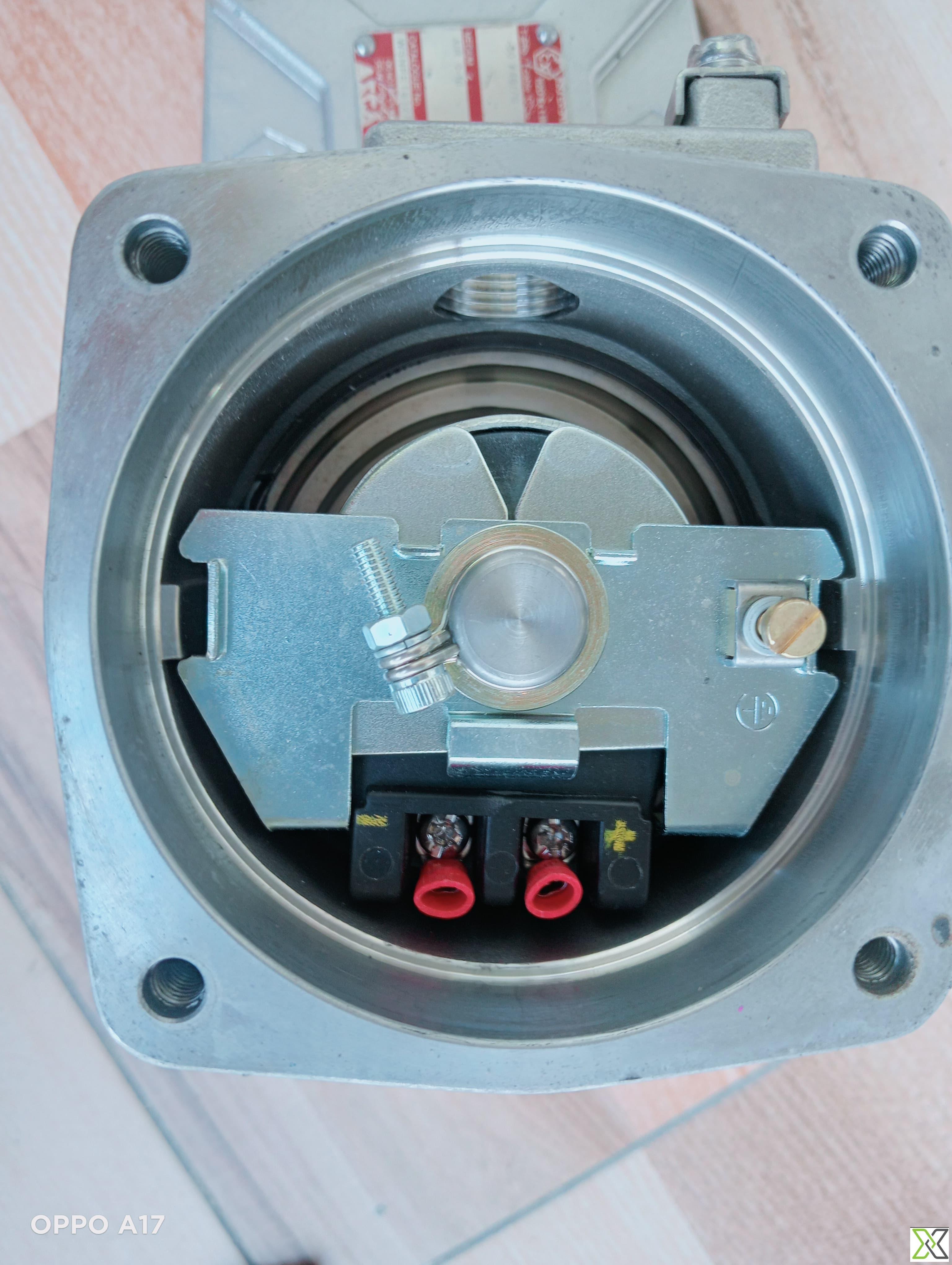

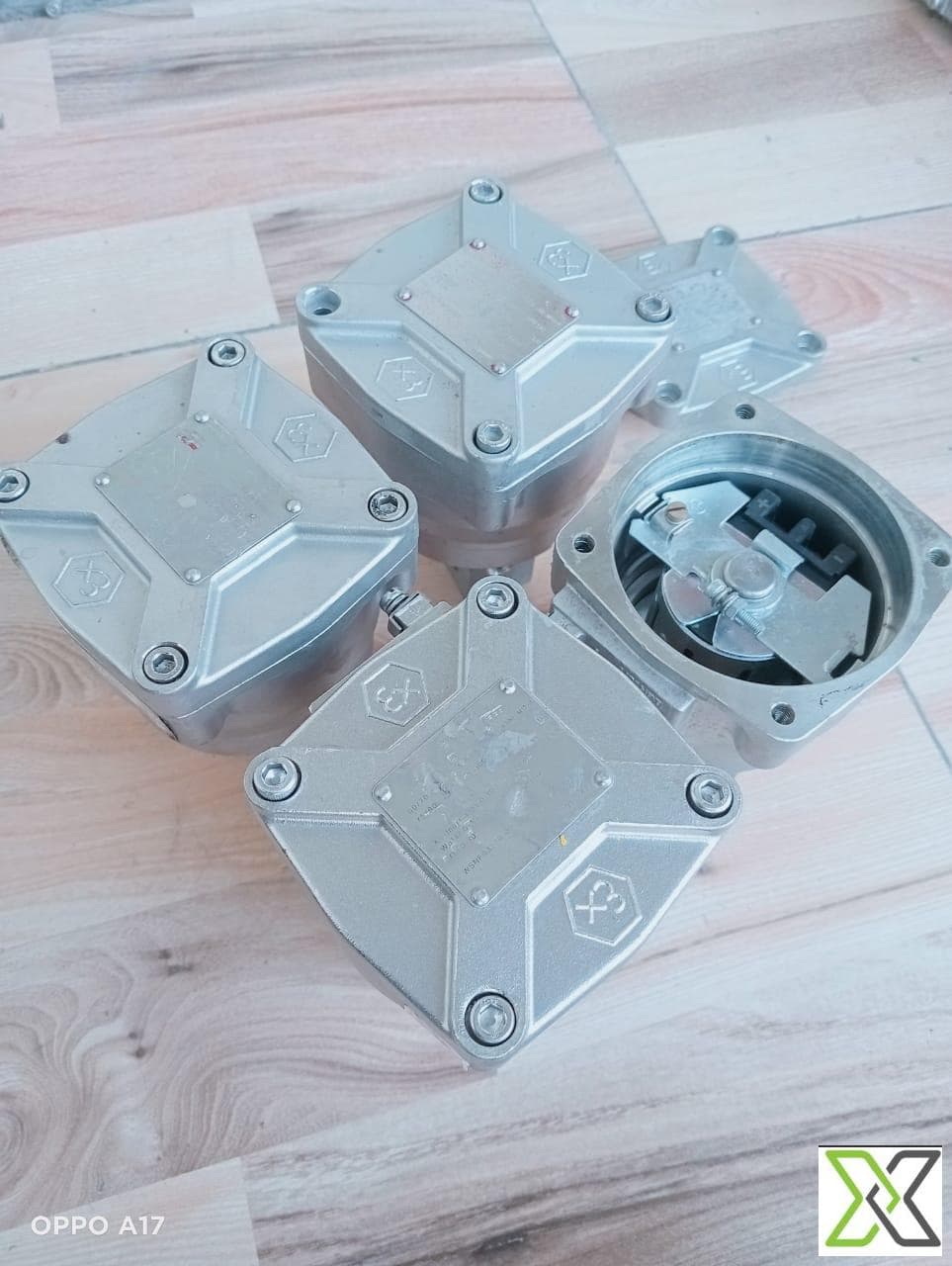

Explosion-Proof Solenoid Valve Housing – 85V

This explosion-proof solenoid valve housing is designed for demanding industrial applications where hazardous gas atmospheres are present. Engineered with a rugged metallic enclosure, it provides reliable flameproof (Ex d) protection and corrosion resistance, ensuring safe operation in classified environments.

With a voltage rating of 85V and a frequency of 60 Hz, the unit consumes only 9 watts, making it energy-efficient while maintaining robust operational performance. It supports a wide range of compatible media including air, light gases, and water, and is ideal for process control and fluid actuation systems in oil, gas, chemical, and other high-risk industries.

The housing is rated for ambient operating temperatures from -10°C to +60°C and is classified under temperature classes T6 to T5 depending on actual application conditions. It can be mounted via pipe or bracket installations and is suitable for use in systems identified with the T.P.L. pipe marking.

Manufactured in Luce, France, this solenoid valve housing meets international explosion-proof safety standards and is built to perform reliably in the most challenging operational environments.

Specifications:

– Product Type: Solenoid Valve Housing (Explosion-Proof / Flameproof)
– Medium Compatibility: Air, Light Gas, Water
– Pipe Identification: T.P.L
– Voltage Rating: 85V
– Frequency: 60 Hz
– Power Consumption: 9 Watts

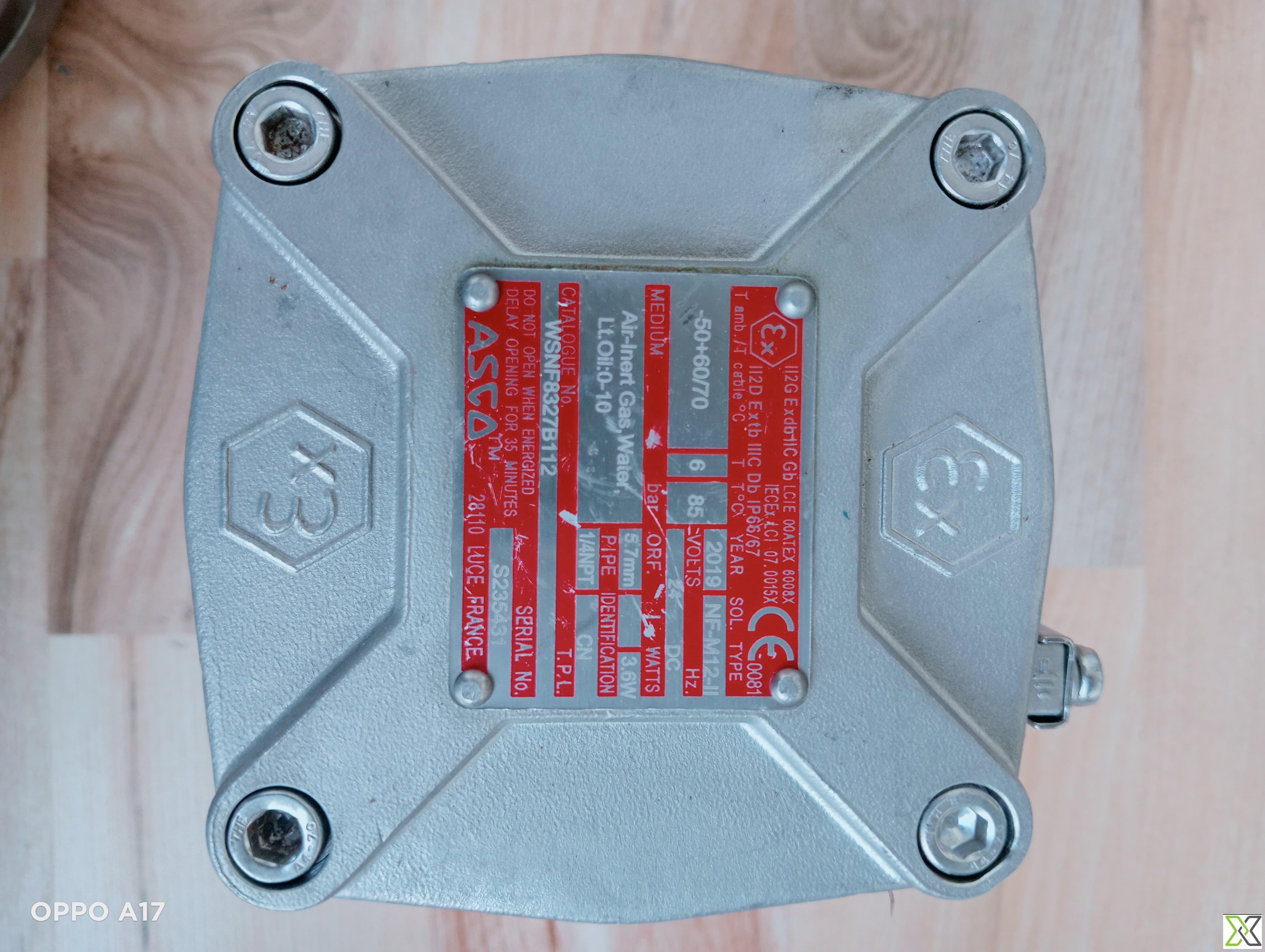

– Serial Number: S203260018
– Catalogue Number: L1L00710
– Manufacturing Location: Luce, France
– Ambient Operating Temperature: -10°C to +60°C
– Temperature Class: T6…T5 (application dependent)
– Housing Type: Flameproof / Explosion-Proof
– Protection Concept: Ex d (Flameproof enclosure)
– Enclosure Rating: Suitable for explosive gas atmospheres
– Build Quality: Heavy-duty metallic housing with corrosion resistance
– Mounting: Pipe or bracket mountable
– Compliance: Designed for hazardous area standards

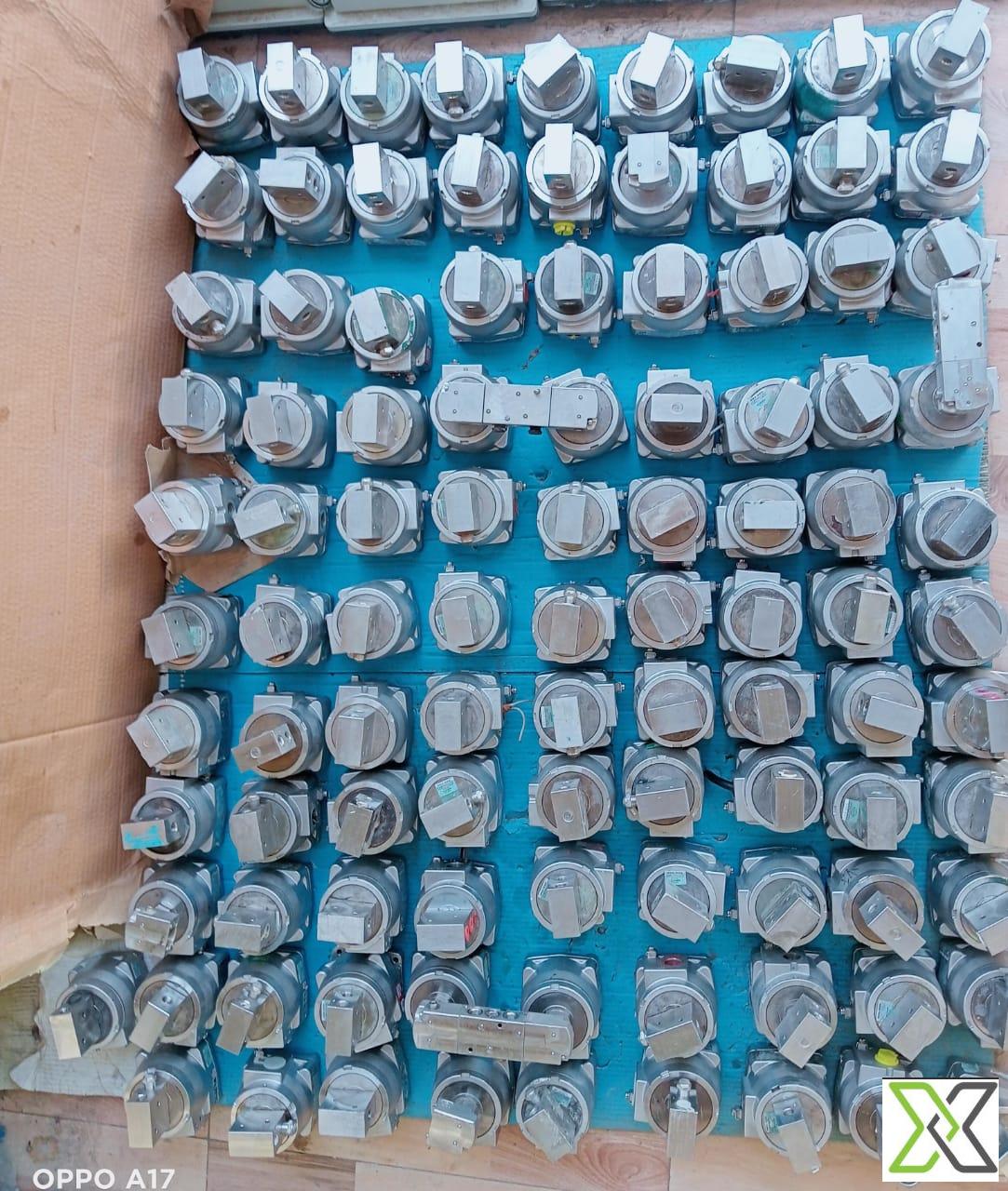

– Quantity Available: Specify upon request
– Delivery: Available on request
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	Approximately 98 mm
Width	Approximately 77 mm
Length	Approximately 65 mm
Weight	1.16 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Aluminium or Stainless Steel
Failure Action	normally closed or normally open
Full Opening Valve	Yes
Nominal Diameter	1/4" to 1/2" NPT.
Normal Operating Temperature	T6 to T4
Piping Class	Class 150 or Class 300
UNSPSC Code	40141600
