4" Full Bore Flanged Ball Valve – ANSI Class 300

ReflowX SKU: REF-5551

Product Details

Quantity

5
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ARGUS
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty DN100 (4-inch) flanged ball valve with ANSI Class 300 rating and full bore design, suitable for water, oil, and gas (WOG) applications.

Description

4" Full Bore Flanged Ball Valve – ANSI Class 300

This DN100 (4") full bore flanged-end ball valve is designed for robust performance in industrial water, oil, and gas (WOG) systems. Rated for ANSI Class 300 (PN 50) pressure conditions, the valve offers reliable shutoff and flow control with a full bore passage to minimize pressure drop. The body is designated as “100G”, with either a 2-piece or 3-piece construction based on process requirements. Flanged ends conform to ASME B16.5 Class 300 standards, with raised face (RF) connections for secure installation. While the trim materials are not specified, markings such as “EP 305 DN 100” on end caps and “1.05” and “08 01” suggest manufacturing or quality control identifiers. Each unit is painted and labeled with stock tag “50.05” and carries a unique ordering number. This model is part of a lot of three identical valves visible in the same batch.

Specifications:

– Valve Type: Ball Valve
– Size (Nominal Diameter): DN 100 (4 Inch)
– Pressure Rating: ANSI Class 300 (PN 50 equivalent)
– Application Compatibility: WOG (Water, Oil, Gas)
– Bore Type: Full Bore
– Body Type: 2-Piece or 3-Piece Body
– End Connection: Flanged Ends – ASME B16.5, Raised Face (RF)
– Body Marking: 100G
– End Cap Markings: EP 305 DN 100

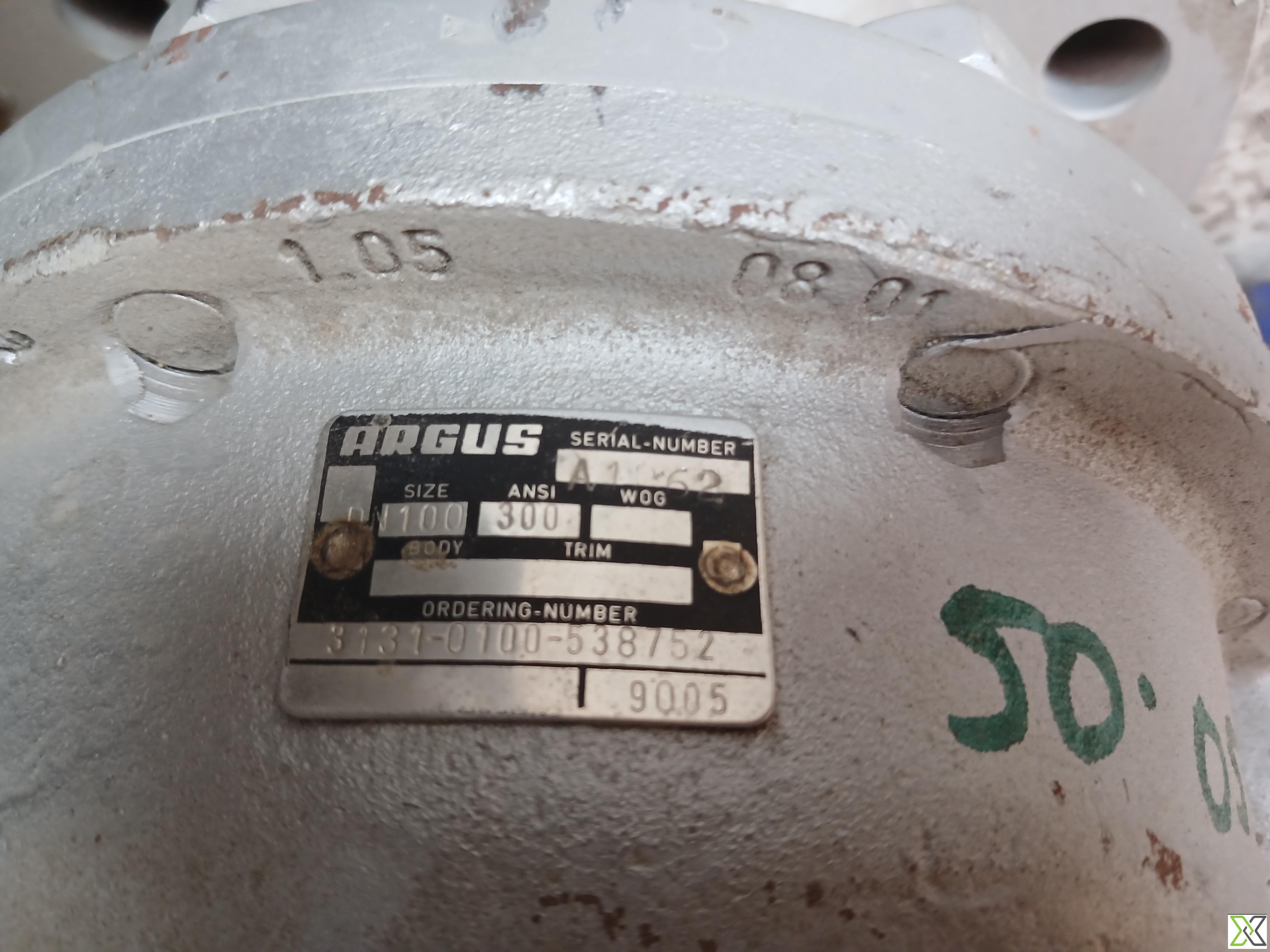

– Ordering Number: 3131-0100-538752
– Serial Number: A11562
– Tag / Markings: “1.05”, “08 01” (likely date or heat code)
– Stock Label: “50.05” (painted marking)

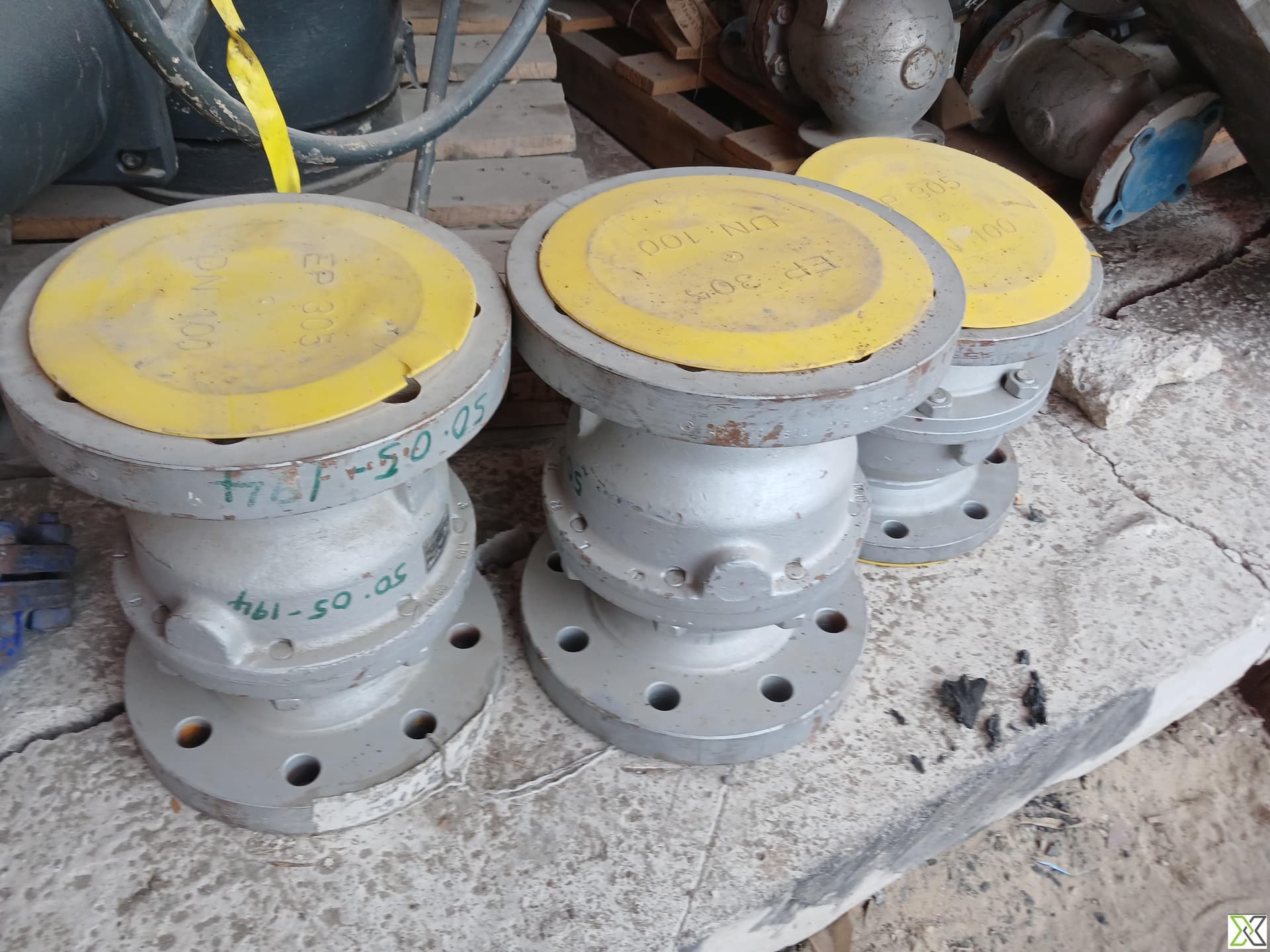

– Quantity Observed: 3 Identical Units

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	450 mm
Width	320 mm
Length	432 mm
Weight	35–50 kg
Color	Silver
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
Speed	Manual lever – Immediate quarter-turn (90°)
IFC Class	IfcValve
Design Specification	API 608 / ISO 17292 / ASME B16.34
Failure Action	actuator-dependent
Fluid Name	Water, Oil, Gas, Air, Steam, or General Industrial Fluids
Full Opening Valve	Yes
Normal Operating Pressure	Up to 50 bar (725 psi)
Normal Operating Temperature	-29°C to +200°C
Piping Class	Class 300 piping systems
UNSPSC Code	40141600
