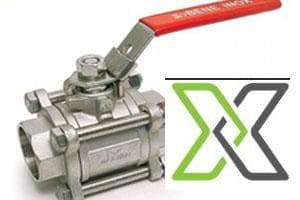

Ball Valves | Floating & Trunnion Mounted | ANSI Class up to 1500 lbs | RF & RTJ Connections

ReflowX SKU: REF-9880

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

High-quality Floating and Trunnion Mounted Ball Valves available in sizes from 1/2" to 56", designed for ANSI pressure classes up to 1500 lbs. Offered in both reduced and full bore executions with RF and RTJ connections, meeting BS5351 and API 6D standards for reliable industrial and oilfield applications.

Description

Ball Valves | Floating & Trunnion Mounted | ANSI Class up to 1500 lbs | RF & RTJ Connections
Description:

Our range of Ball Valves includes both Floating and Trunnion Mounted designs, engineered to provide dependable flow control in various industrial and oilfield environments. Floating Ball Valves conform to BS5351 standards and are available in reduced and full bore executions for sizes ranging from 1/2" to 12", with ANSI Class ratings up to 1500 lbs for smaller sizes (1/2" to 2") and up to 600 lbs for larger sizes (3" to 12").

Trunnion Mounted Ball Valves are manufactured to API 6D specifications and are available in sizes from 2" to 56", designed for ANSI Class ratings up to 1500 lbs. Both valve types feature robust construction, precise sealing, and multiple connection options including Raised Face (RF) and Ring Type Joint (RTJ), ensuring compatibility with a broad range of piping systems.

These Ball Valves are suitable for critical applications where tight shutoff, low torque operation, and durability under high pressure and temperature conditions are essential. They are widely used in oil & gas, petrochemical, refining, and industrial processes.

Specifications:

– Model: Floating Ball Valve and Trunnion Mounted Ball Valve
– Size Range Floating Ball: 1/2" – 12"
– Size Range Trunnion Mounted: 2" – 56"
– ANSI Class Rating Floating Ball: Up to 1500 lbs (1/2" – 2"), Up to 600 lbs (3" – 12")
– ANSI Class Rating Trunnion Mounted: Up to 1500 lbs
– Bore Type: Reduced Bore and Full Bore Execution
– Connection Type: Raised Face (RF), Ring Type Joint (RTJ)
– Design Standard Floating Ball Valve: BS5351
– Design Standard Trunnion Mounted Ball Valve: API 6D
– Body Material: [Specify per manufacturer - typically Carbon Steel, Stainless Steel, Duplex, etc.]
– Operation: Manual, Gear Operated, or Automated (as per configuration)
– Seat Material: [Specify - PTFE, PEEK, Metal, etc.]
– Temperature Range: Typically -29°C to +232°C (depends on material and seat type)
– Pressure Rating: Up to ANSI Class 1500 lbs
– Face-to-Face Dimensions: API 6D
– End Connections: RF and RTJ Flanged
– Application: Oil & Gas, Petrochemical, Refining, Industrial Process Control
– Testing Standard: API 598
– Color: Manufacturer Standard
– Compliance: Meets BS5351, API 6D, ANSI standards

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Floating Ball Valve and Trunnion Mounted Ball Valve
Height	100 mm to 500 mm
Width	75 mm to 1000+ mm
Length	150 mm to 1200+ mm
Weight	5 kg to 30 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Floating Ball (BS5351)
Failure Action	Ball rotates to a closed position under torque or actuator failure
Fluid Name	Crude oil, natural gas, water, steam, chemical fluids
Full Opening Valve	Yes
Nominal Diameter	2” to 56”
Normal Operating Pressure	ANSI Class 1500 lbs
Normal Operating Temperature	-29°C to +200°C
Piping Class	Class 150, 300, 600, 900, 1500 lbs
UNSPSC Code	40141600

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
