1-1/2" 150LB Lining Ball Valve FF CF8+PFA Lever GB/T12237-2007

Description

Product Description:

Overview:

This 1-1/2" 150LB Lining Ball Valve is designed according to the GB/T12237-2007 standard, providing reliable performance in systems handling highly corrosive chemical media. The valve body is made from CF8+PFA, offering extremely high chemical stability and resistance to corrosion. The valve features fluorine lining, which enhances its performance in challenging environments.

The FF (Flat Face) connection ensures a secure, leak-proof installation, while the lever operation allows for smooth and easy manual control. This valve is ideal for use in water, oil, and gas systems, and it operates effectively within the temperature range specified by the GB/T12237-2007 standard.

Specifications:

Feature	Details
Type	Ball Valve
Size	1-1/2"
Pressure Rating	150LB
Connection	FF (Flat Face Flange)
Operation	Lever Operated
Body Material	CF8+PFA

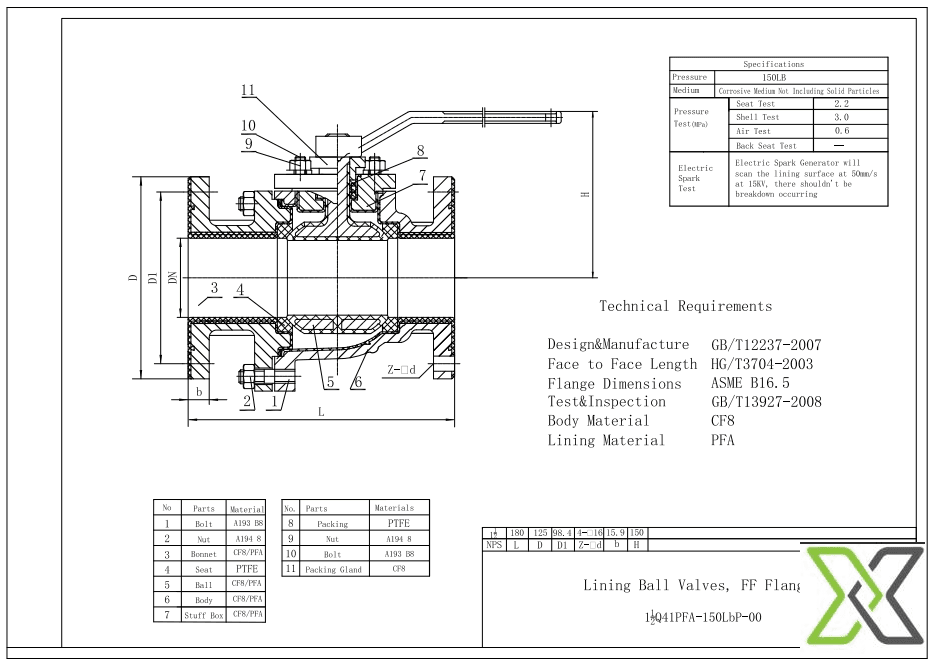

Design Standard	GB/T12237-2007
Face to Face Length	HG/T3704-2003
Flange Dimensions	ASME B16.5
Test & Inspection Code	GB/T13927-2008
Applicable Medium	Water, Oil, Gas

Features:

Chemical Resistance: The CF8+PFA body and fluorine lining offer exceptional resistance to aggressive chemicals, making it ideal for highly corrosive applications.

Full Floating Ball Design: Ensures efficient flow control and easy ball sweeping, enhancing the valve’s maintenance and performance.

Lever Operation: Simple and effective manual control for smooth valve operation.

FF Connections: Flat Face Flange connections provide a reliable, leak-proof seal for secure installation.

Durability: The valve is designed to withstand harsh conditions, ensuring long-term performance in water, oil, and gas systems.

If you require any further information on this listing please contact info@reflowx.com
