- 1" Metal Seated Ball Valve Class 300 RF Lever Operated
Description
roduct Description

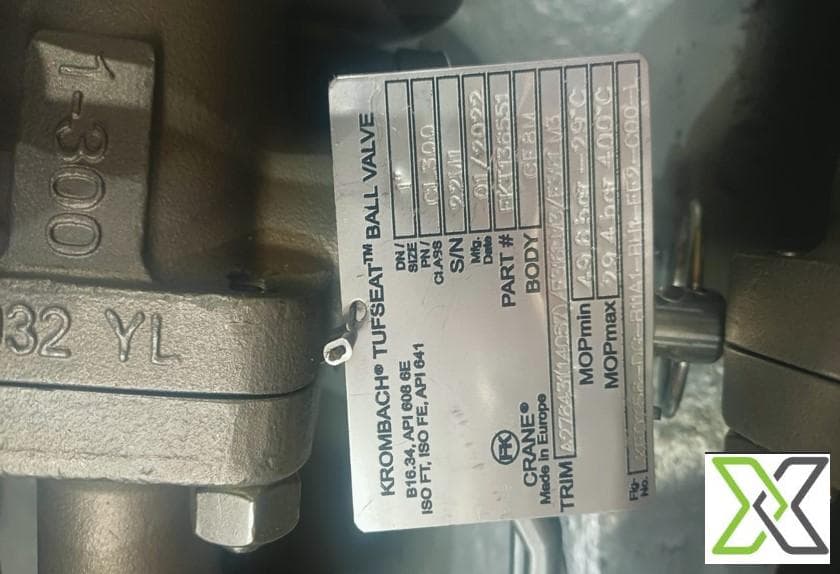

KROMBACH TUFSEAT metal seated ball valve featuring a 2-piece body construction with floating ball configuration. The valve is designed with double seat, bi-directional sealing and full port flow.
The unit is supplied with flanged RF end connections in accordance with ASME B16.5 and face-to-face dimensions per ASME B16.10 long pattern. The valve includes a lever operator and is manufactured using CF8M body material with hard nickel alloy coated internal components.
This unit is available as surplus inventory.
Specifications
| Parameter | Details |
|---|---|
| Manufacturer | KROMBACH |
| Valve Type | Metal Seated Ball Valve |
| Model | TUFSEAT KFO1156 |
| Size | 1" |
| Pressure Class | Class 300 |
| Body Style | 2-Piece Body |
| Ball Configuration | Floating Ball |
| Seat Type | Double Seat, Bi-directional |
| Port | Full Bore |
| End Connection | Flanged RF (ASME B16.5) |
| Face to Face | ASME B16.10 Long Pattern |
| Operator | Lever Operated |
| Body Material | ASTM A351 CF8M |
| Stem Material | ASTM A276 Gr. 431 |
| Ball Material | ASTM A182 F316L (Hard Nickel Alloy Coated) |
| Seat Material | ASTM A182 F316L (Hard Nickel Alloy Coated) |
| Seal | Standard Graphite |
| Quantity Available | 3 Units |
If you require any further information on this listing please contact info@reflowx.com
