Product Description:

Overview:

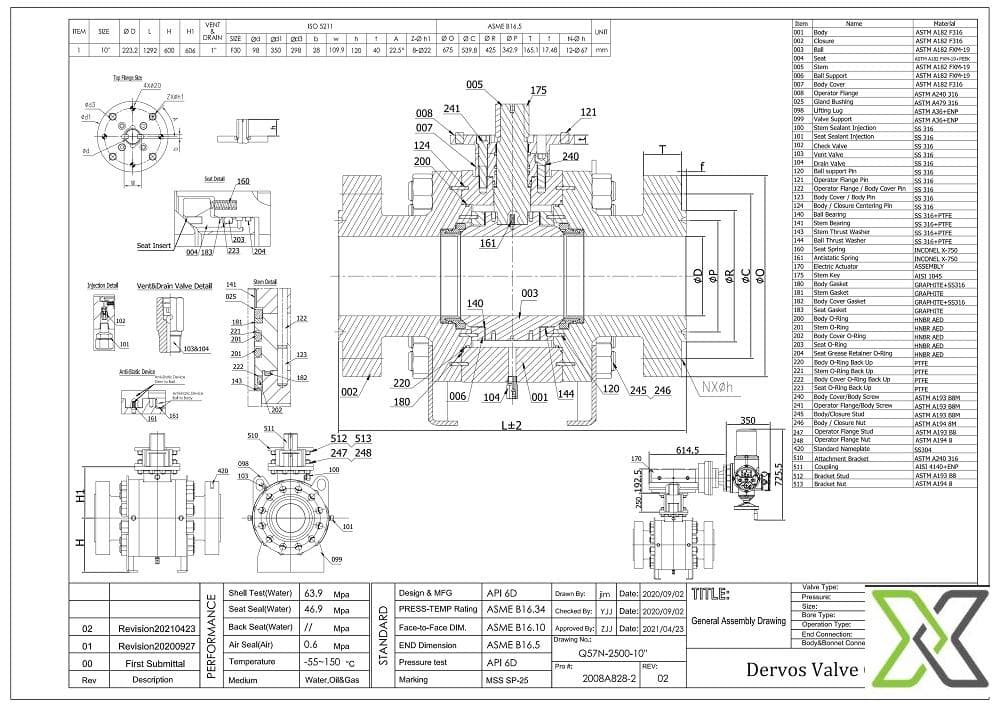

This 10" 2500LB Trunnion Mounted Ball Valve is designed in compliance with API6D standards, featuring a robust ASTM A182 F316 stainless steel body for superior corrosion resistance. The valve has a full bore design, ensuring minimal flow restriction and high flow capacity. The valve’s connection mode is RTJ (Ring-Type Joint), ensuring a secure, leak-proof connection for high-pressure applications.

It operates with an electric actuator, allowing for remote operation, which enhances system efficiency and reduces the need for manual intervention. This valve is ideal for water, oil, and gas systems, and it operates within a temperature range of -60°C to 150°C.

Specifications:

Features:

High-Pressure Resistance: Designed to handle 2500LB pressure rating, ideal for demanding applications.

Corrosion Resistance: Constructed from F316 stainless steel, providing excellent resistance to corrosion in harsh environments.

Advanced Sealing Technology: Ensures excellent sealing performance with PEEK valve seats for zero leakage and light torque operation.

Electric Actuator: Allows for convenient operation and remote control, enhancing system efficiency.

Robust Structure: Built to withstand high pressures and ensure long-term reliability in critical systems.

Wide Applicability: Suitable for use in petroleum, chemical, natural gas, and metallurgy industries.

If you require any further information on this listing please contact info@reflowx.com
