Product Description:

Overview:

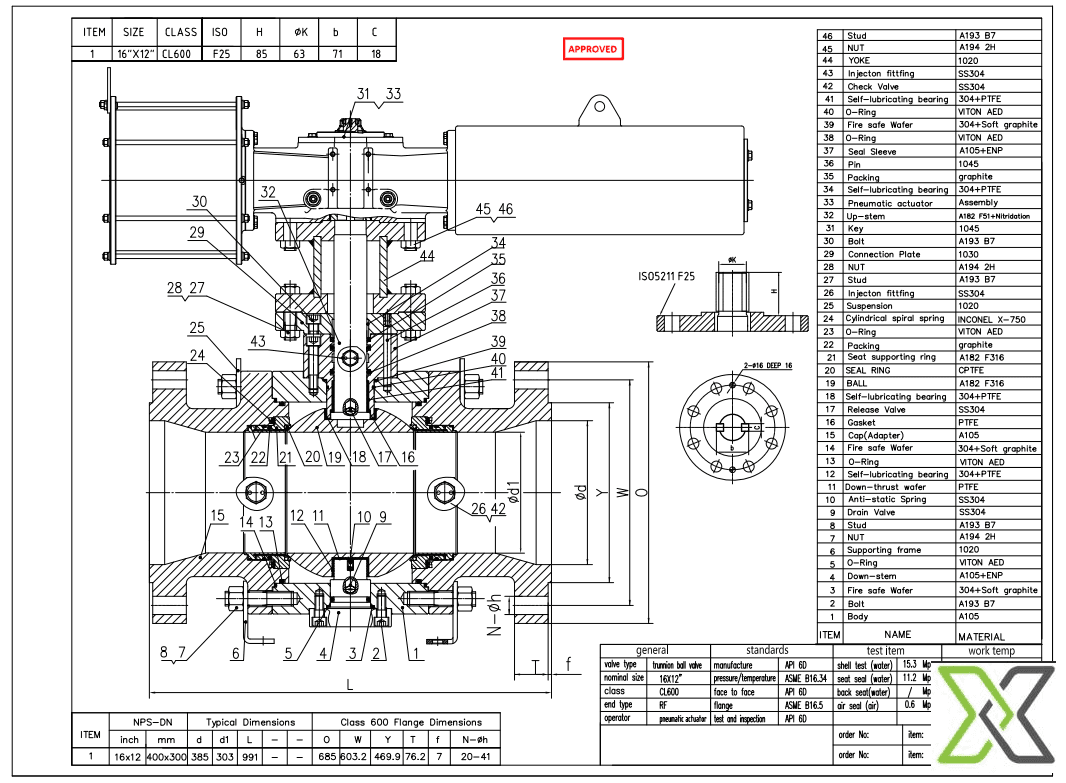

This 16" x 12" 600LB Trunnion Mounted Ball Valve is built in compliance with API 6D standards. The valve body is made from A105 carbon steel, providing exceptional strength and reliability. The split-type design features a side-mounted, fixed ball, and reduced diameter, making it suitable for large-diameter, high-pressure systems.

Equipped with a pneumatic actuator, the valve operates through an air supply, enabling remote automation for increased efficiency and reduced manual intervention. The RF (Raised Face) connection mode ensures a secure and leak-proof installation.

This valve is ideal for use in water, oil, and gas systems and operates effectively within a temperature range of -29°C to 121°C.

Specifications:

Features:

Pneumatic Actuator: Provides remote automation, reducing manual intervention and increasing efficiency.

Trunnion-Mounted Design: Fixes the ball with upper and lower bearings, enabling the valve to withstand high pressure and torque.

Full Bore Passage: Reduces flow resistance, providing optimal performance in high-pressure systems.

Durable Construction: A105 body material ensures strength and resistance for long-lasting operation in demanding conditions.

Remote Control: Pneumatic actuator allows for easy operation in hard-to-reach or hazardous locations.

If you require any further information on this listing please contact info@reflowx.com
