Product Description:

Overview:

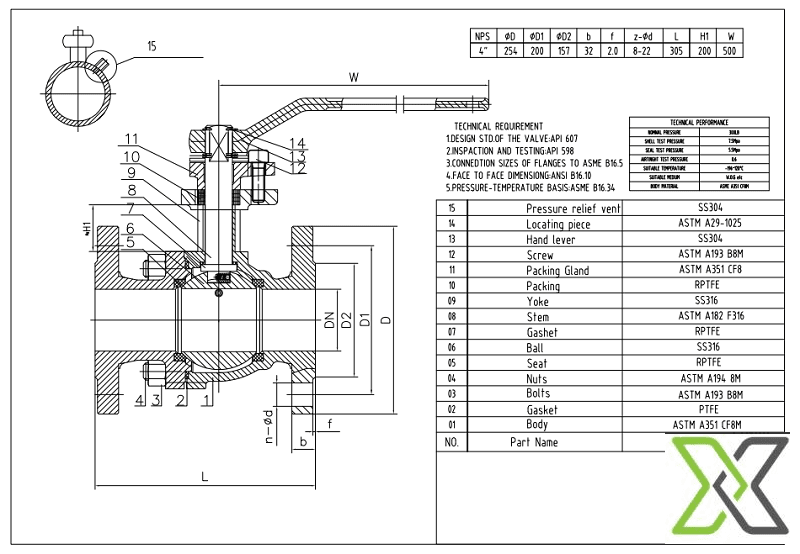

This 4 Inch Cryogenic Floating Ball Valve is manufactured to API609 standards, providing reliable performance in cryogenic conditions. The valve body is made from F316 stainless steel, ensuring excellent corrosion resistance, particularly in extreme environments. The valve features a full port design with RF connections and is equipped with a lever-operated mechanism for easy manual control.

The valve is designed with cryogenic features such as an extended stem and bonnet to protect the stem packing from cryogenic fluid, ensuring smooth operation even in low temperatures. High-density seats and seals enable the valve to operate effectively down to -196°C.

This valve is ideal for use in oil, water, and gas systems, operating within a temperature range of -196°C to +120°C.

Specifications:

Design Features:

Extended Stem and Bonnet: Positions the stem packing above the cryogenic fluid and provides a column of warmer vapor to insulate the stem seal from low temperatures.

High-Density Seats and Seals: Designed to function in cryogenic service, with the valve rated for operation down to -196°C.

Vent Hole on the Upstream Face of the Ball: Prevents cold liquids from becoming trapped in the valve, ensuring smooth operation in low temperatures.

Blow-Out Proof Stem Design: The stem primary seal and bearing are located near the packing end of the extended stem, protecting them from cryogenic temperatures.

Special Cleaning and Packaging: Valves are specially cleaned to remove all grease and oils that may react with the service media. Each valve is packaged and sealed in a heavy poly bag to keep it clean until installation.
