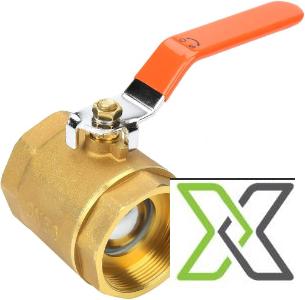

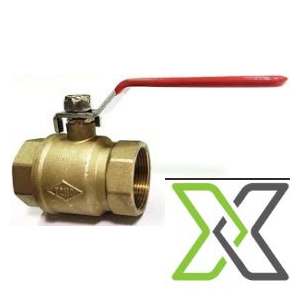

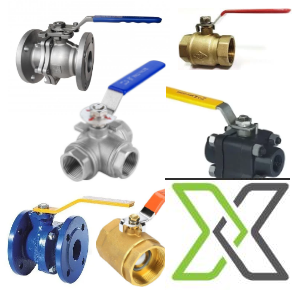

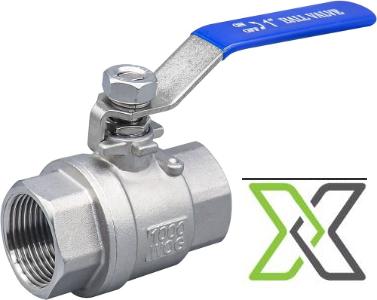

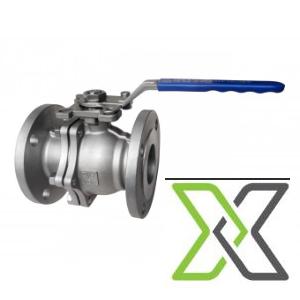

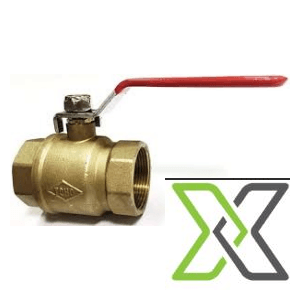

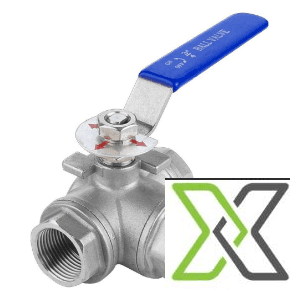

Industrial Ball Valves – ½” to 12”, Steel/Bronze/SS, Threaded & Flanged

ReflowX SKU: REF-8916

Product Details

Quantity

300
Availability (Lead Time)

6-10 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

USA, Singapore, India, China, Korea
Equipment code

Get Quotation Whatsapp

Short Description

Robust industrial ball valves ranging from ½” to 12”, available in cast steel, stainless steel, brass/bronze, and forged materials. Offered in threaded, socket weld, and flanged end connections, suitable for pressures up to 1000 PSI.

Description

Industrial Ball Valves – ½” to 12”, Steel/Bronze/SS, Threaded & Flanged
Description:

These industrial-grade ball valves offer reliable shut-off and control in high-performance applications across a wide range of fluids, including water, oil, gas, and steam. Designed according to international standards such as ANSI, DIN, and JIS, they are offered in multiple pressure classes including PN10, PN16, 5K, 10K, CL150, CL200, and CL900, with options available for pressure ratings up to 1000 PSI. The valves are manufactured in a variety of materials including cast iron, cast steel, brass/bronze, forged steel, and stainless steel (SS304/316), with end connections available in NPT threaded, socket weld, or flanged configurations. These valves are sourced from reputed manufacturers in the USA, Singapore, India, China, and Korea, making them suitable for demanding industrial environments such as oil & gas, HVAC, water treatment, and process plants.

Specification:

– Product Type: Industrial Ball Valves
– Material:
• Cast Iron
• Cast Steel
• Brass/Bronze
• Forged Steel
• Stainless Steel (SS304, SS316)
– Size Range: ½” to 12”
– Pressure Ratings:
• PN Ratings: PN10, PN16
• JIS Ratings: 5K, 10K
• ANSI Ratings: CL150, CL200, CL900
• Special: Up to 1000 PSI
– Standards: JIS, DIN, ANSI
– End Connections:
• NPT Threaded
• Socket Weld
• Flanged
– Design Features:
• Quarter-turn operation
• Full port or reduced port options
• Blowout-proof stem
• Anti-static design (available)
– Surface Finish:
• Painted or coated (CS/CI)
• Machined or polished (Bronze/SS)
– Typical Applications:
• Oil and gas distribution
• Steam and utility lines
• Chemical and process industries
• HVAC and building utilities
• Marine and offshore installations
– Origin: USA, Singapore, India, China, Korea

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	100 mm to 450 mm
Width	70 mm to 300 mm
Length	60 mm to 200 mm
Weight	1.5 kg to 120 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Stays in last operated position
Fluid Name	Water, Oil and hydrocarbons, Natural Gas / LPG, Compressed Air / Inert Gases, Steam
Full Opening Valve	Yes
Nominal Diameter	½” (DN15) to 12” (DN300)
Normal Operating Pressure	Up to 1000 PSI
Normal Operating Temperature	-20°C to +180°C
UNSPSC Code	40141600
