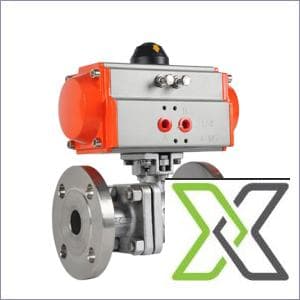

Ball Valves with Actuator – Carbon Steel, Stainless Steel, UPVC

ReflowX SKU: REF-1052

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Automated ball valves available in carbon steel, stainless steel, ductile iron, and UPVC materials with flanged, screwed, or socket weld ends. Sizes from ¼″ to 12″, ANSI and DIN compliant.

Description

Ball Valves with Actuator – Carbon Steel, Stainless Steel, UPVC
Description:

Ball valves with actuator assemblies are engineered for automated flow control across industrial applications. These valves are constructed from robust materials including carbon steel (WCB A216), forged steel (A105), ductile iron, stainless steel, and UPVC, ensuring high durability and resistance to corrosion. The valves support ANSI and DIN standards and are suitable for integration in both new and existing pipelines. Options include flanged, screwed, and socket weld end connections to accommodate varied installation environments. Designed for smooth operation and dependable sealing, they are ideal for use in process automation, chemical plants, water treatment, and more.

Specification:

– Product Type: Ball Valve with Actuator
– Available Materials:
• Carbon Steel (WCB A216)
• Forged Steel (A105)
• Ductile Iron
• Stainless Steel
• UPVC
– Available Sizes: ¼″ to 12″
– Standards: ANSI, DINg
– End Connections: Flanged, Screwed, Socket Weld
– Actuation Type: Pneumatic or Electric actuator (as per requirement)
– Operation: ON/OFF or Modulating
– Typical Applications: Water & wastewater, process industry, petrochemical, HVAC, automation
– Temperature Range: Varies by material; up to 200°C for metallic construction
– Origin: India, China, Singapore, USA
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Ball Valve with Actuator
Height	200 mm - 1200 mm
Width	90 mm - 600 mm
Length	70 mm - 500 mm
Weight	4 kg –180 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Fail-Open or Fail-Close depending on actuator setup
Fluid Name	Water, Oil, Steam, Air, Gas (natural gas, compressed air), Chemicals
Full Opening Valve	yes
Nominal Diameter	½″ to 12″
Normal Operating Pressure	DIN PN16 / PN25 / PN40
Normal Operating Temperature	–20°C to +425°C
Piping Class	Class 150 / 300
UNSPSC Code	40141600

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
