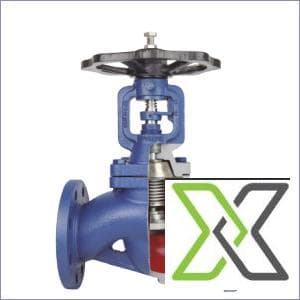

Bellow Seal Valves – Carbon Steel & Cast Iron, ANSI/DIN Standards

ReflowX SKU: REF-1801

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

High-integrity bellow seal valves made from carbon steel (WCB A216) and cast iron, designed for zero-leakage performance with flanged ends, compliant with ANSI and DIN standards

Description

Bellow Seal Valves – Carbon Steel & Cast Iron, ANSI/DIN Standards
Description:

Our Bellow Seal Valves are engineered for applications requiring zero leakage and high safety performance, particularly in hazardous, toxic, or high-temperature services. These valves incorporate a welded or mechanically formed bellow that isolates the stem and sealing components from the process fluid, ensuring long service life and emission-free operation. Manufactured from carbon steel (WCB A216) and cast iron, they are suitable for a wide range of industrial uses including chemical processing, power generation, and oil & gas systems. Available in sizes from ½″ to 12″, these valves conform to ANSI and DIN standards and are provided with flanged end connections for secure installation and maintenance.

Specification:

– Product Type: Bellow Seal Globe Valve
– Available Materials:
• Carbon Steel (WCB A216)
• Cast Iron
– Size Range: ½″ to 12″
– Standards Compliance:
• ANSI
• DIN
– End Connections:
• Flanged
– Design Features:
• Zero stem leakage
• Flexible metallic bellows welded to stem and bonnet
• Backseat arrangement for added safety
– Applications:
• Steam systems
• Toxic and hazardous fluid handling
• Chemical and petrochemical industries
• Vacuum systems
– Origin: China, India, Korea
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	ellow Seal Globe Valve
Height	180 mm to 1000 mm
Width	150 mm to 700 mm
Length	150 mm to 600 mm
Weight	8 kg to 220 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Fail-in-place
Fluid Name	Steam, Heat transfer oil, Ammonia, Hydrocarbons, Nitrogen, Hazardous gases
Full Opening Valve	No
Nominal Diameter	½” to 12”
Normal Operating Pressure	50 bar
Normal Operating Temperature	–10°C to +220°C
Piping Class	Class 150, 300, 600
UNSPSC Code	40141600
