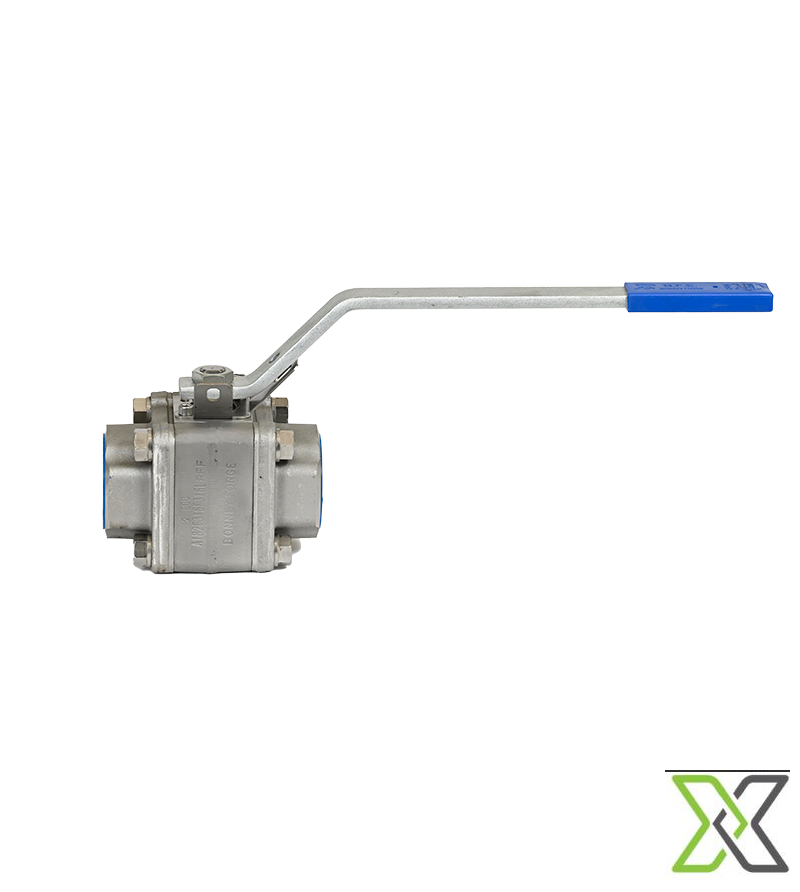

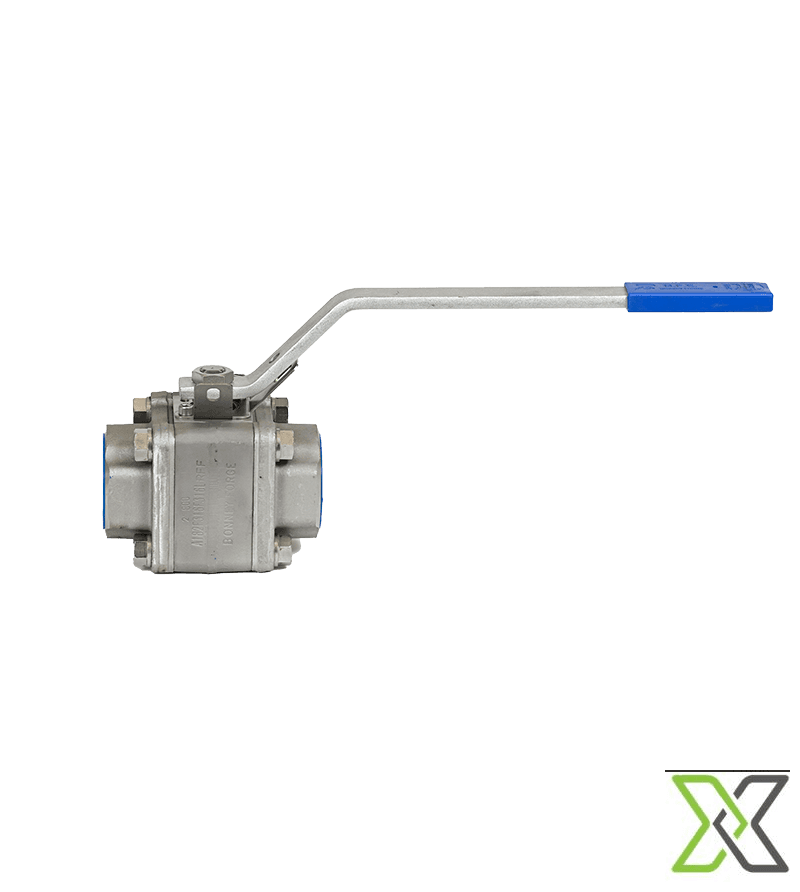

Bonney Forge Forged Ball Valves – ½” to 2”, Class 150 to 1500, Italy

ReflowX SKU: REF-4592

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

BONNEY FORGE VALVES, ITALY
Equipment code

Get Quotation Whatsapp

Short Description

Bonney Forge forged steel ball valves, sizes ½” to 2”, pressure classes 150 to 1500, engineered in Italy for critical industrial service. Precision-built to meet demanding flow control standards.

Description

Bonney Forge Forged Ball Valves – ½” to 2”, Class 150 to 1500, Italy
Description:

Bonney Forge forged ball valves are trusted globally for their durability, tight shutoff, and performance in high-pressure, high-temperature service conditions. Manufactured in Italy and available in sizes from ½” to 2”, these valves are offered in pressure classes 150, 300, 600, 800, and 1500. Designed to meet or exceed the most stringent industry standards, Bonney Forge ball valves are crafted from high-integrity forged steel, ensuring superior strength, corrosion resistance, and pressure containment. With a reputation for excellence in manufacturing, Bonney Forge provides flow control solutions for oil & gas, petrochemical, power generation, and process industries. These valves are suitable for isolation applications where compact forged construction is preferred.

Specifications:

– Manufacturer: Bonney Forge, Italy
– Valve Type: Forged Steel Ball Valve
– Size Range: ½” to 2”
– Pressure Classes:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 1500
– Body Construction: Forged Steel (ASTM grade per spec)
– Design Features:
• Two- or three-piece body construction (model-dependent)
• Blowout-proof stem
• Fire-safe design (API 607 compliant upon request)
• Antistatic device
– Seat Options: PTFE, RPTFE, or metal-seated (based on service)
– End Connections:
• Threaded (NPT)
• Socket Weld (SW)
• Butt Weld (BW)
• Flanged (ANSI B16.5 – select models)
– Design Standards:
• API 6D / API 608
• ASME B16.34
• MSS SP-25 (Marking)
• API 598 (Testing)
– Applications:
• Oil & Gas
• Refining & Petrochemicals
• Power Plants
• Industrial Processing
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Forged Steel Ball Valve
Manufacturer Name	Bonney Forge, Italy
Height	90 mm to 240 mm
Width	50 mm to 130 mm
Length	108 mm (1” Class 150), up to ~216 mm (2” Class 1500)
Weight	1.5 kg (½” Class 150) to 12+ kg (2” Class 1500)
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 608, API 6D, ASME B16.34
Failure Action	Quarter-turn shutoff – valve closes fully upon 90° rotation
Fluid Name	Oil, gas, condensate, Steam, Water, air, inert gases, Chemical process fluids
Full Opening Valve	Yes, Full Bore standard for most models
Nominal Diameter	½” to 2”
Normal Operating Pressure	Class 150 = ~19 bar to Class 1500 = ~250 bar
Normal Operating Temperature	-29°C to +200°C
Piping Class	ASME B31.3, B31.1, and API 1104 systems
UNSPSC Code	40141600
