Bonney Forge Forged Gate Valves – Extended Body, ½” to 2

ReflowX SKU: REF-3310

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

BONNEY FORGE VALVES, ITALY
Equipment code

Get Quotation Whatsapp

Short Description

Bonney Forge extended body forged gate valves, ½” to 2”, Class 800 and 1500, with RD or FB bore, available in A105N, F316L, or LF2. End connections include RF, NPT, SW, or plain end.

Description

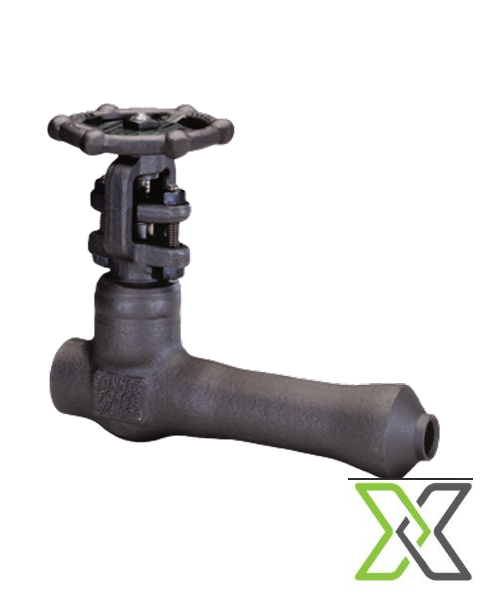

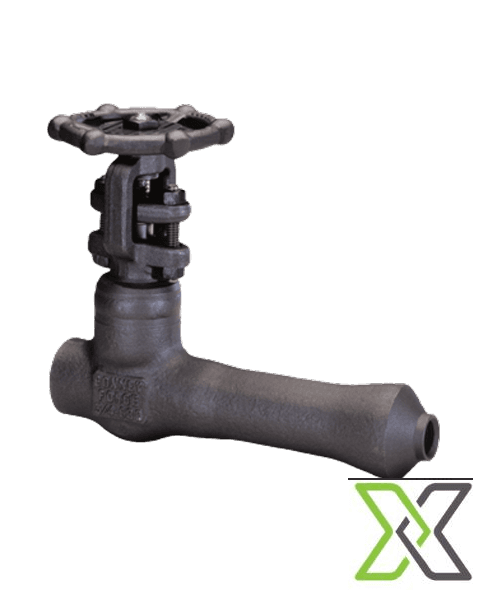

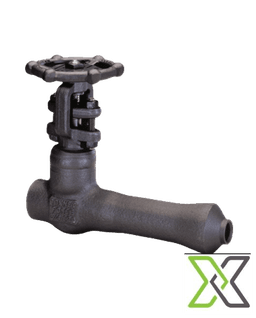

Bonney Forge Forged Gate Valves – Extended Body, ½” to 2

Bonney Forge forged gate valves with extended body design are engineered for applications requiring added stem or body length—ideal for insulated systems or specialized installations. Available in ½” to 2” sizes and pressure classes 800 and 1500, these valves are manufactured from high-quality forged materials including A105N carbon steel, F316L stainless steel, and LF2 low-temperature carbon steel. These valves offer both Reduced Bore (RD) and Full Bore (FB) options and are configured with multiple end connections such as Raised Face (RF), Socket Weld (SW), Threaded (NPT), and Plain End for flexible installation. The extended body design allows for easy operation and accessibility in tight or recessed locations. Built to meet API, ASME, and ANSI standards, Bonney Forge valves ensure high reliability, long service life, and excellent shutoff performance for critical industrial systems.

Specifications:

– Manufacturer: Bonney Forge, Italy
– Valve Type: Forged Gate Valve – Extended Body
– Size Range: ½” to 2”
– Pressure Classes:
• Class 800
• Class 1500
– Body Materials:
• A105N – Forged Carbon Steel
• F316L – Forged Stainless Steel
• LF2 – Forged Low Temperature Carbon Steel
– Bore Options:
• Reduced Bore (RD)
• Full Bore (FB)
– End Connections:
• RF – Raised Face
• NPT – Threaded (ASME B1.20.1)
• SW – Socket Weld (ASME B16.11)
• Plain End – Weldable/cut-fit connections
– Design Features:
• Extended body for insulated or recessed systems
• OS&Y (Outside Screw & Yoke) rising stem
• Integral backseat
• Bolted bonnet
• Solid wedge (standard)
– Compliance Standards:
• API 602
• ASME B16.34
• API 598 (Pressure Testing)
• MSS SP-25 (Marking)
– Applications:
• Insulated pipeline systems
• High-pressure steam or thermal service
• Oil & Gas
• Power generation
• Petrochemical plants
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Forged Gate Valve – Extended Body
Manufacturer Name	Bonney Forge, Italy
Height	180 mm to 320 mm
Width	70 mm to 160 mm
Length	90 mm to 210 mm
Weight	2.0 kg (½” Class 800) to ~15+ kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 602, ASME B16.34
Failure Action	Manual isolation — stays in last position upon failure
Fluid Name	hydrocarbons, steam, water, gas, and industrial process fluids
Full Opening Valve	Available in Full Bore (FB) and Reduced Bore (RD) versions
Nominal Diameter	½” to 2” (DN15 to DN50)
Normal Operating Pressure	137 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B31.1
UNSPSC Code	40141600
