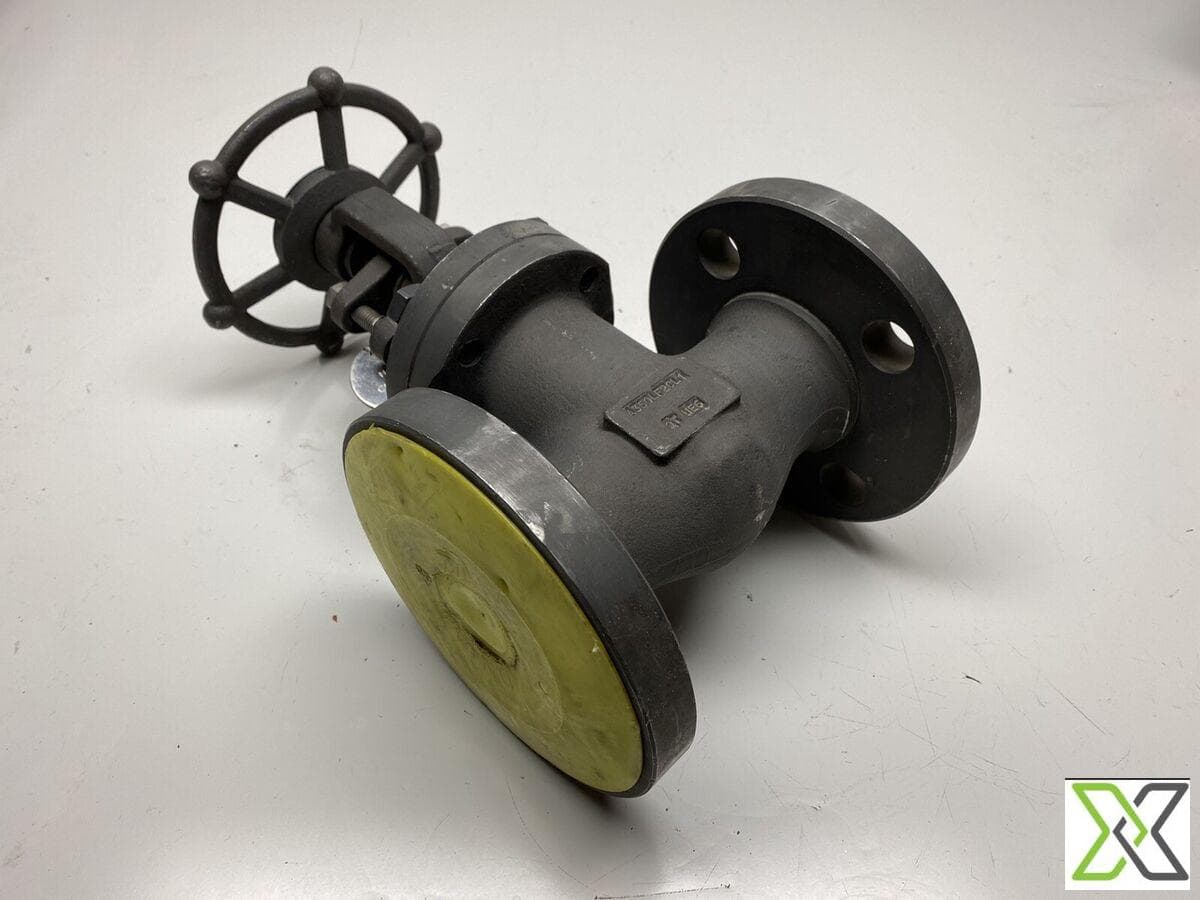

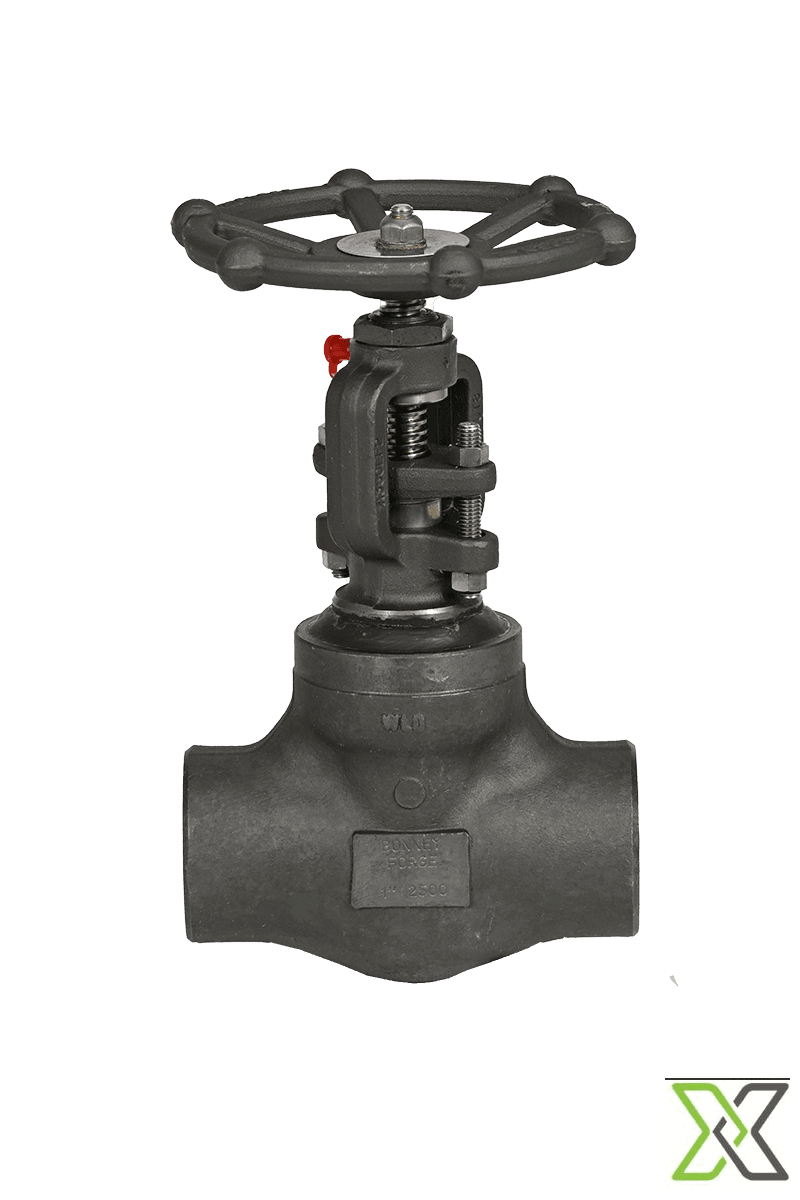

Bonney Forge Forged Globe Valves – ½” to 2

ReflowX SKU: REF-7457

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

BONNEY FORGE VALVES, ITALY
Equipment code

Get Quotation Whatsapp

Short Description

Bonney Forge forged globe valves, ½” to 2”, pressure classes 150 to 1500, available in A105N, F316L, and LF2 bodies with RF, NPT, SW, or plain ends. RD or FB bore options for precision flow control.

Description

Bonney Forge Forged Globe Valves – ½” to 2”, Class 150 to 1500, A105N/F316L/LF2

Bonney Forge forged globe valves are designed for efficient throttling and precise flow regulation in high-pressure and high-temperature service environments. Built in compact sizes from ½” to 2” and available in pressure classes from 150 to 1500, these valves are constructed from forged materials including A105N carbon steel, F316L stainless steel, and LF2 low-temperature carbon steel. These globe valves feature robust body construction, reliable seating, and tight shutoff capabilities. They are available with a variety of end connections such as Raised Face (RF), Socket Weld (SW), Threaded (NPT), and Plain End to suit different installation requirements. With both Reduced Bore (RD) and Full Bore (FB) options, Bonney Forge globe valves are suitable for demanding industrial applications including oil & gas, chemical processing, power generation, and more. Each valve meets API, ASME, and ANSI standards, ensuring long-term reliability and safety.

Specifications:

– Manufacturer: Bonney Forge, Italy
– Valve Type: Forged Globe Valve
– Size Range: ½” to 2”
– Pressure Classes:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 1500
– Body Materials:
• A105N – Forged Carbon Steel
• F316L – Forged Stainless Steel
• LF2 – Forged Low-Temperature Carbon Steel
– End Connections:
• RF – Raised Face Flanged
• NPT – Threaded (ASME B1.20.1)
• SW – Socket Weld (ASME B16.11)
• Plain End – Weldable/cut-fit connections
– Bore Options:
• Reduced Bore (RD)
• Full Bore (FB)
– Design Features:
• OS&Y (Outside Screw & Yoke) rising stem
• Bolted bonnet
• Renewable seat and disc
• Integral backseat
• Precise linear flow control
– Design Standards:
• API 602
• ASME B16.34
• API 598 (Pressure Testing)
• MSS SP-25 (Marking)
– Applications:
• Oil & Gas
• Petrochemical Plants
• Power Generation
• Steam & Utility Systems
• Industrial Processing
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Forged Globe Valve
Manufacturer Name	Bonney Forge, Italy
Height	90 mm to 260 mm
Width	60 mm to 170 mm
Length	110 mm to 210 mm
Weight	2 kg (½” Class 150) up to ~18 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 602
Failure Action	Manual fail-close by default
Fluid Name	Compatible with steam, condensate, hydrocarbons, gas, oil, and process chemicals
Full Opening Valve	Full Bore (FB) and Reduced Bore (RD)
Nominal Diameter	½” to 2”
Normal Operating Pressure	Class 150: ~19 bar - Class 1500: ~250 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B31.1
UNSPSC Code	40141600
