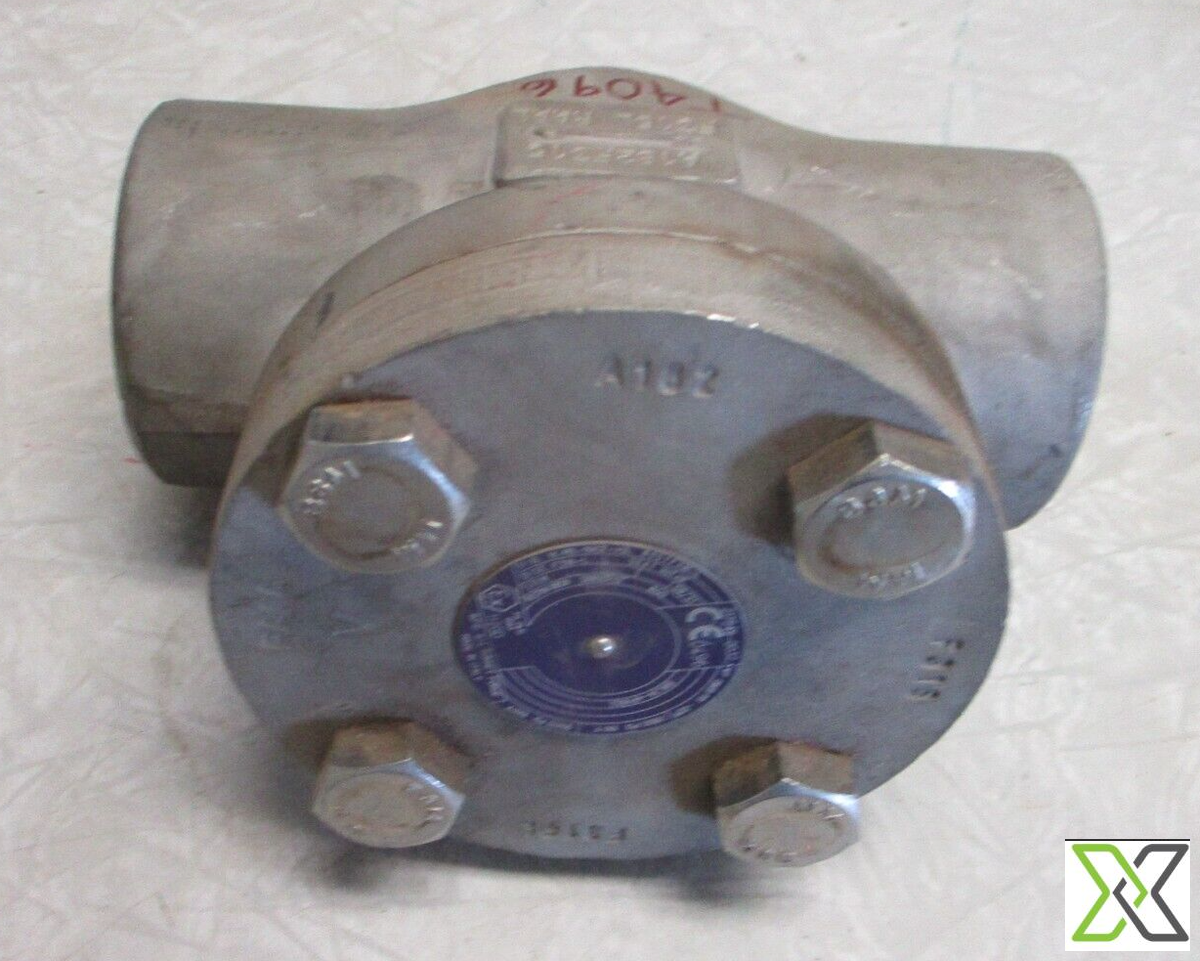

Bonney Forge Forged Piston Check Valves – ½” to 2

ReflowX SKU: REF-2968

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

BONNEY FORGE VALVES, ITALY
Equipment code

Get Quotation Whatsapp

Short Description

High-integrity Bonney Forge forged piston check valves, ½” to 2”, Class 150 to 2500, in A105N, F316L, and LF2 bodies. Available with RF, NPT, SW, or plain ends and RD or FB bore options

Description

Bonney Forge Forged Piston Check Valves – ½” to 2”, Class 150 to 2500, A105N/F316L/LF2

Bonney Forge forged piston check valves are engineered for non-return flow control in high-pressure, high-temperature systems where space and performance are critical. Offered in compact ½” to 2” sizes and pressure classes ranging from 150 to 2500, these valves utilize a piston-guided design to provide a more controlled and consistent seating action compared to conventional lift check valves. Manufactured from top-grade forged materials including A105N carbon steel, F316L stainless steel, and LF2 low-temperature carbon steel, these valves are ideal for severe service environments. Bore options include Reduced Bore (RD) and Full Bore (FB), and end connections include RF (Raised Face), NPT (Threaded), SW (Socket Weld), and plain end, offering excellent flexibility for installation. Compliant with international design and testing standards, Bonney Forge piston check valves are widely used in oil & gas, petrochemical, and power generation applications.

Specifications:

– Manufacturer: Bonney Forge, Italy
– Valve Type: Forged Piston Check Valve
– Size Range: ½” to 2”
– Pressure Classes:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 1500
• Class 2500
– Body Materials:
• A105N – Forged Carbon Steel
• F316L – Forged Stainless Steel
• LF2 – Forged Low-Temperature Carbon Steel
– End Connections:
• RF – Raised Face Flanged
• NPT – Threaded (ASME B1.20.1)
• SW – Socket Weld (ASME B16.11)
• Plain End – For direct weld fit
– Bore Options:
• Reduced Bore (RD)
• Full Bore (FB)
– Design Standards:
• API 602
• ASME B16.34
• API 598 (Testing)
• MSS SP-25 (Marking)
– Design Features:
• Piston-guided non-return function
• Compact forged body
• Spring-loaded or gravity-assisted closure (design dependent)
• Vertical or horizontal installation
– Applications:
• High-pressure process lines
• Steam, gas, and hydrocarbon systems
• Refineries
• Petrochemical plants
• Power and utility systems
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Forged Piston Check Valve
Manufacturer Name	Bonney Forge, Italy
Height	90 mm (½" Class 150) to 250 mm (2" Class 2500)
Width	60 mm to 180 mm
Length	80 mm to 190 mm
Weight	1.5 kg (½” Class 150) up to ~18 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	ASME B16.34
Failure Action	Closes automatically on reverse flow
Fluid Name	Steam, condensate, refined hydrocarbons, gas, water, chemical fluids
Full Opening Valve	Full Bore (FB) and Reduced Bore (RD)
Nominal Diameter	½” to 2” (DN15 to DN50)
Normal Operating Pressure	Class 150: ~19 bar - Class 2500: ~420 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B31.1, B31.3 piping codes
UNSPSC Code	40141600
