NSW BS 1868 Swing Check Valve – Class 150–2500, WCB/CF8M Body, RF/RTJ/BW Ends

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Swing-type check valve designed to BS 1868, available in sizes 2" to 32", pressure Class 150–2500. Constructed with WCB, CF8M, duplex, or high-alloy body. Features bolted or pressure seal bonnet, full or reduced bore, and end connections in RF, RTJ, or butt weld.

Description

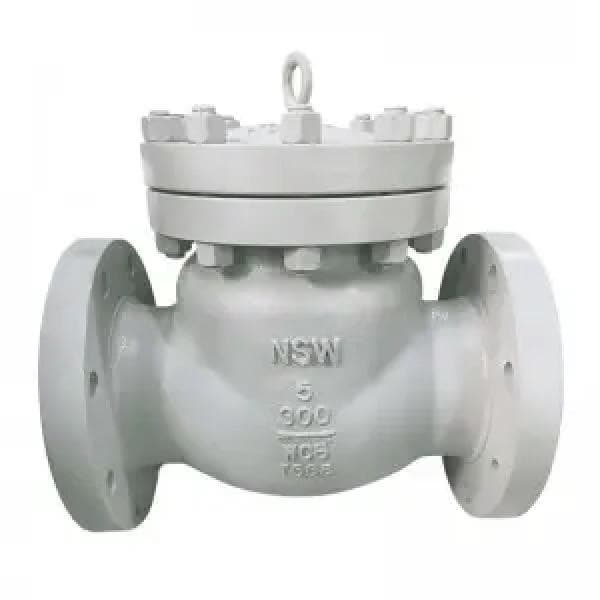

NSW BS 1868 Swing Check Valve – Class 150–2500, WCB/CF8M Body, RF/RTJ/BW Ends

The NSW BS 1868 Swing Check Valve is a high-performance automatic non-return valve engineered to prevent backflow in critical pipeline systems. Designed in accordance with BS 1868 and API 6D, this valve is commonly installed in one-way flow pipelines across the oil & gas, chemical, petrochemical, and power industries.

Available in sizes from NPS 2" to NPS 32" and pressure classes 150 to 2500, the valve features a heavy-duty swing disc mechanism that operates solely under flow force. The disc swings open with forward flow and closes tightly upon flow reversal, ensuring protection for pumps, compressors, and sensitive equipment.

Constructed from a wide selection of cast or forged materials—including carbon steel, stainless steel, duplex, and exotic alloys—the BS 1868 swing check valve is built for versatility in handling a wide variety of aggressive fluids such as water, steam, nitric acid, urea, and oxidizers. It comes with optional fire-safe design, bolted or pressure seal cover, and a choice of full or reduced bore configurations.

Specifications:

– Valve Type: Swing Check Valve (BS 1868 Type)
– Operation: Flow-actuated, non-return (automatic)
– Size Range: NPS 2" to NPS 32"
– Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
– Bore Options: Full Bore / Reduced Bore
– Body Materials:
– Cast: A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LCB, LCC, LC2
– Duplex/Super Duplex: A995 4A, 5A
– Special Alloys: Monel, Inconel, Hastelloy, UB6
– Forged: A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5
– Disc Design: Swing type with rocker arm
– Cover Type: Bolted Cover or Pressure Seal Cover
– End Connections:
– Raised Face (RF), Flat Face (FF), or Ring Type Joint (RTJ) Flanged (ASME B16.5 / B16.47)
– Butt Weld (ASME B16.25)
– Socket Weld (ASME B16.11)
– Face-to-Face Dimensions: ASME B16.10
– Design Standards: BS 1868, API 6D
– Testing Standards: API 598
– Fire Safe Design: Optional per API 6FA / API 607
– Compliance Options:
– NACE MR-0175 / MR-0103
– ISO 15848 (Fugitive Emissions)
– Non-Destructive Testing: PMI, UT, RT, PT, MT
– Installation Orientation: Typically horizontal
– Media Compatibility: Water, steam, crude oil, nitric acid, acetic acid, oxidizing fluids, urea
– Applications: Petroleum pipelines, chemical plants, pharmaceutical processing, fertilizer units, power plants
– Temperature Range: Based on material class and pressure rating
– Sealing Performance: Precision ground sealing surfaces for extended life and tight shutoff
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
