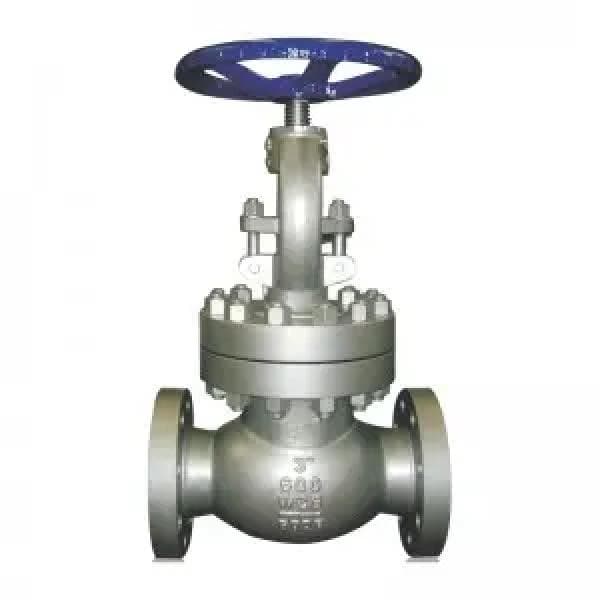

NSW BS 1873 Globe Valve – Class 150–2500, WCB/CF8M Body, Flanged/BW Ends

ReflowX SKU: REF-0066

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

BS 1873 standard globe valve, sizes 2" to 24", pressure Class 150 to 2500. Constructed in WCB, CF8M, or alloy body with RF, RTJ, or BW ends. OS&Y or non-rising stem with bolted or pressure seal bonnet for shutoff or flow regulation.

Description

NSW BS 1873 Globe Valve – Class 150–2500, WCB/CF8M Body, Flanged/BW Ends

The NSW BS 1873 Globe Valve is a precision-engineered control valve designed for reliable throttling and shut-off in high-pressure pipeline systems. Built to the BS 1873 standard and available in sizes NPS 2" to 24", this globe valve is suitable for use in industries such as oil & gas, petrochemical, power generation, steel, and water treatment.

This valve uses a plug-type disc that moves linearly against a flat or conical seat to regulate or stop flow. It is offered with either an outside screw and yoke (OS&Y) rising stem design or a non-rising stem version, and includes a bolted bonnet or optional pressure seal bonnet for enhanced sealing at higher pressures.

The BS 1873 globe valve can be constructed in cast or forged materials, including carbon steel (WCB), stainless steel (CF8M), duplex (A995 4A/5A), and high-performance alloys like Monel, Inconel, and Hastelloy. End connections include RF, FF, RTJ, socket weld, and butt weld to suit varied installation environments.

Ideal for critical flow regulation, this valve’s linear stem movement enables precise control, while its short stroke design ensures reliable shut-off. It is particularly suited to applications involving steam, oil, corrosive media, and radioactive or high-viscosity fluids.

Specifications:
– Valve Type: Globe Valve
– Design Standard: BS 1873
– Size Range: NPS 2" to 24"
– Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
– Body Materials:
– Cast Steel: A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LCB, LCC, LC2
– Duplex/Super Duplex: A995 4A, 5A
– Special Alloys: Monel, Inconel, Hastelloy, UB6
– Forged Steel: A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5
– End Connections:
– Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) (ASME B16.5 / B16.47)
– Socket Weld (ASME B16.11)
– Butt Weld (ASME B16.25)
– Face-to-Face Dimensions: ASME B16.10
– Bonnet Options: Bolted Bonnet or Pressure Seal Bonnet
– Stem Design: OS&Y Rising Stem or Non-Rising Stem
– Disc Type: Plug-shaped disc (flat or conical sealing surface)
– Operation: Manual (Handwheel), Electric or Gear Operation (optional)
– Testing Standards: API 598
– Fire Safe Design: Optional per API 6FA / API 607
– Compliance Options:
– NACE MR-0175 / MR-0103
– ISO 15848 (Fugitive Emission)
– Non-Destructive Testing: PMI, UT, RT, PT, MT
– Applications: Flow control for air, water, steam, oil, corrosive chemicals, radioactive fluids
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
