Bray GE8M Series 28-Inch Butterfly Valve – ASME B16.34, Class 150

ReflowX SKU: REF-1932

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Bray Controls
Equipment code

Get Quotation Whatsapp

Short Description

High-performance 28" Bray GE8M butterfly valve with ASME B16.34 compliance, RTFE seat, and stainless steel trim. Rated for 285 PSI pressure applications.

Description

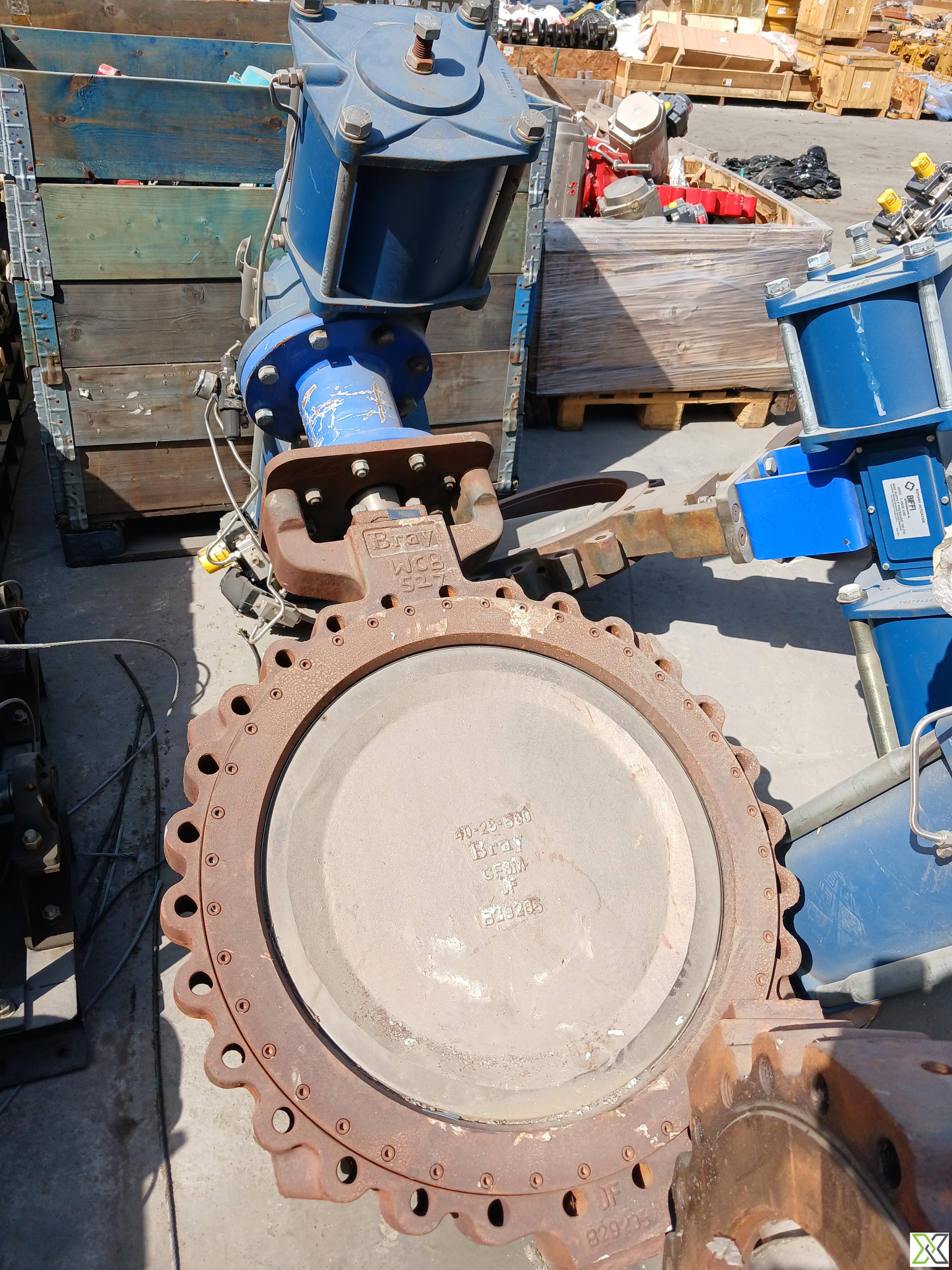

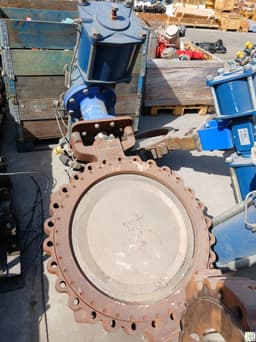

Bray GE8M Series 28-Inch Butterfly Valve – ASME B16.34, Class 150

The Bray GE8M series butterfly valve is engineered for large-diameter flow control applications in industrial and process systems. With a 28-inch nominal bore (indicated by the 40-28-580 casting mark), this valve conforms to ASME B16.34 standards and is pressure-rated for Class 150 service (285 PSI). The valve trim includes a resilient RTFE seat and likely 316 stainless steel disc and stem components, offering excellent corrosion resistance and compatibility with a wide range of media. Designed and manufactured in 2015, the valve features casting number 131203001 and bears additional markings including "Bray GE8M", "JF", and "B29265". The GE8M is a robust, reliable solution for large-scale isolation and throttling service in pipelines.

Specifications:

– Model / Series: GE8M Series
– Valve Size: 28 Inch

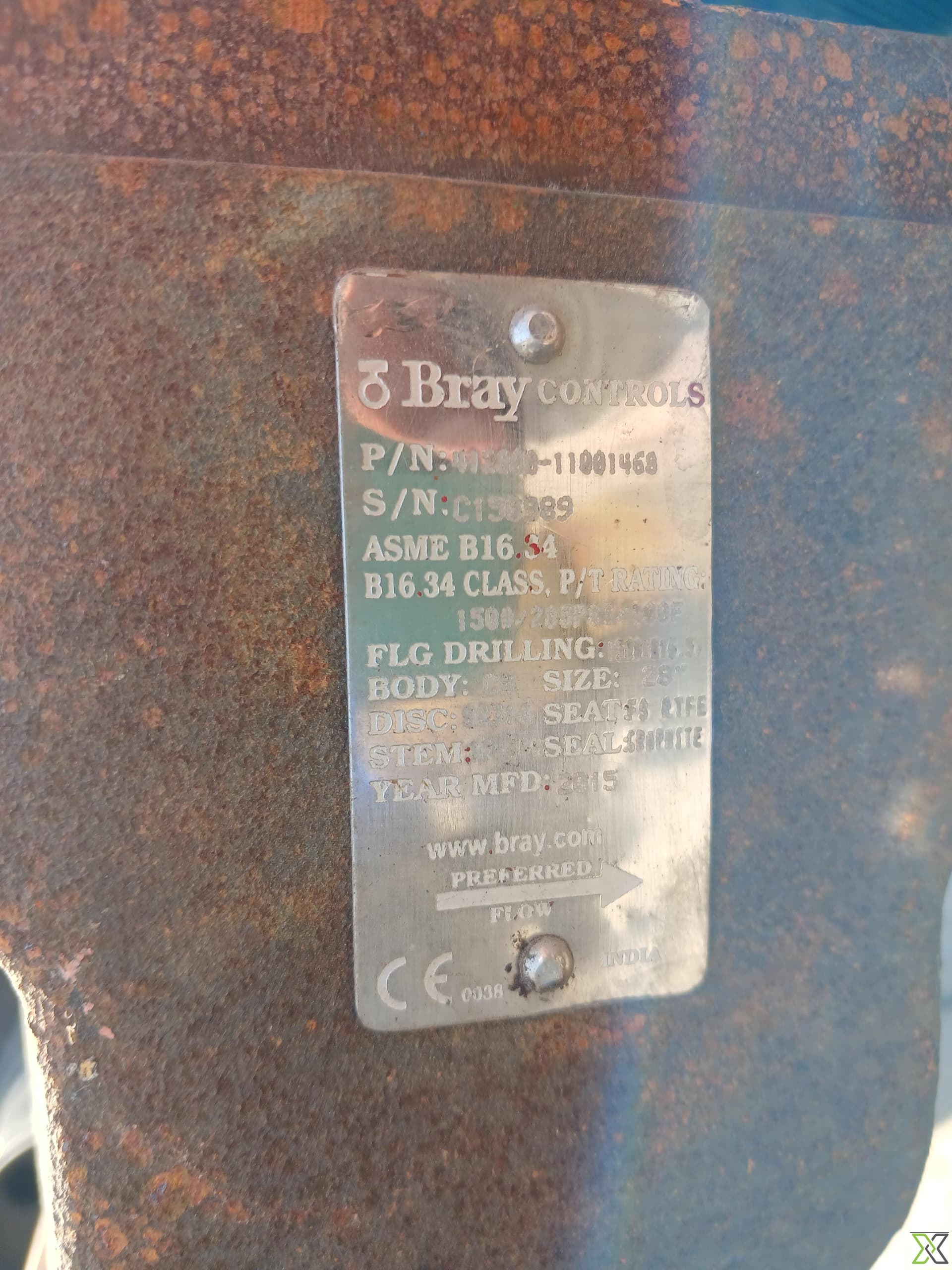

– Part Number (P/N): Possibly 3R3030-11001460 (partially worn)
– Serial Number (S/N): CT13989
– Standard Compliance: ASME B16.34
– Pressure Class / Rating: Class 150 / 285 PSI
– Disc Material: Possibly 316 Stainless Steel
– Seat Material: RTFE (Reinforced PTFE)
– Stem Material: Likely 316 Stainless Steel
– Seal Material: Possibly RTFE
– Year of Manufacture: 2015

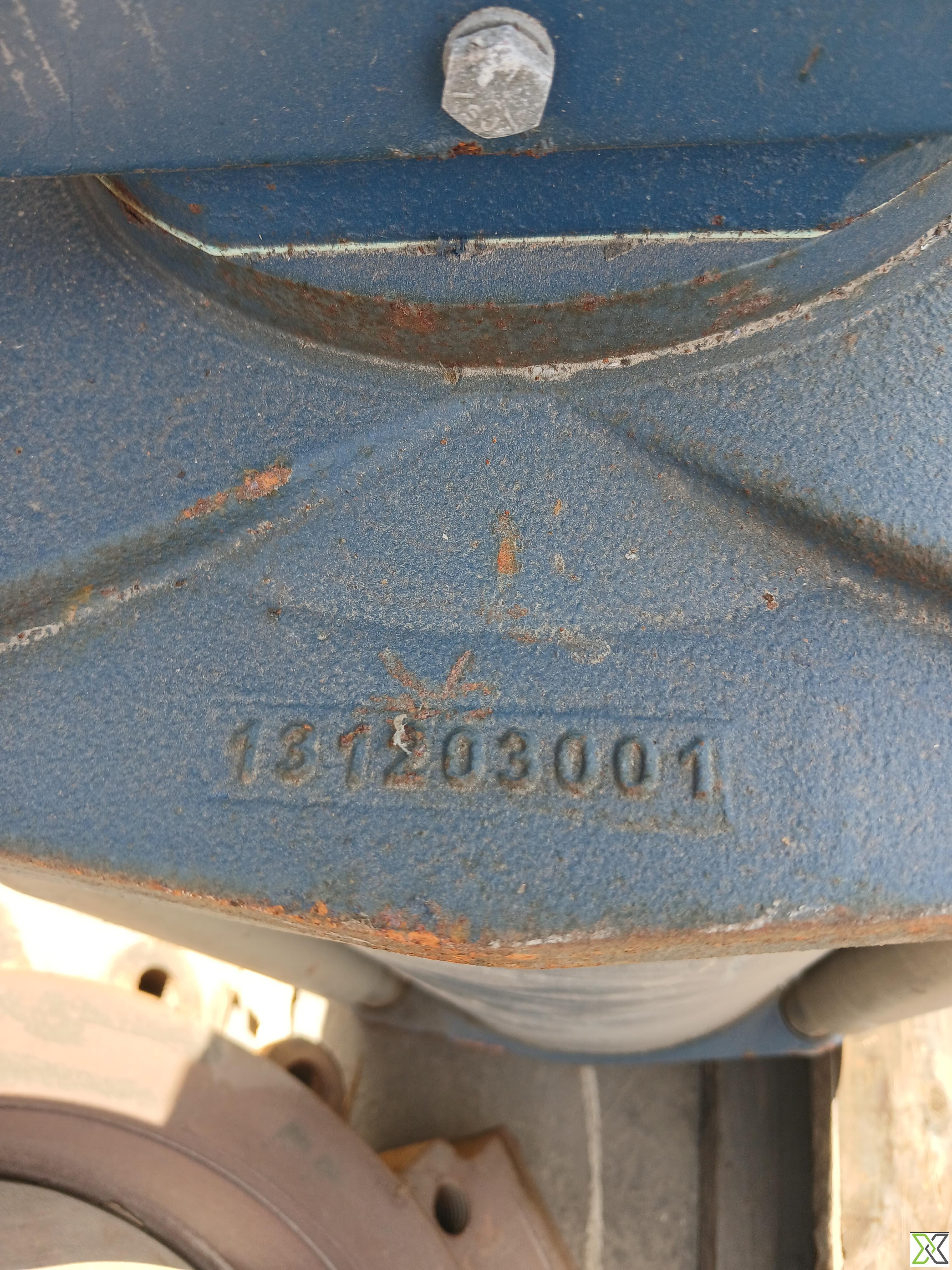

– Casting Number: 131203001

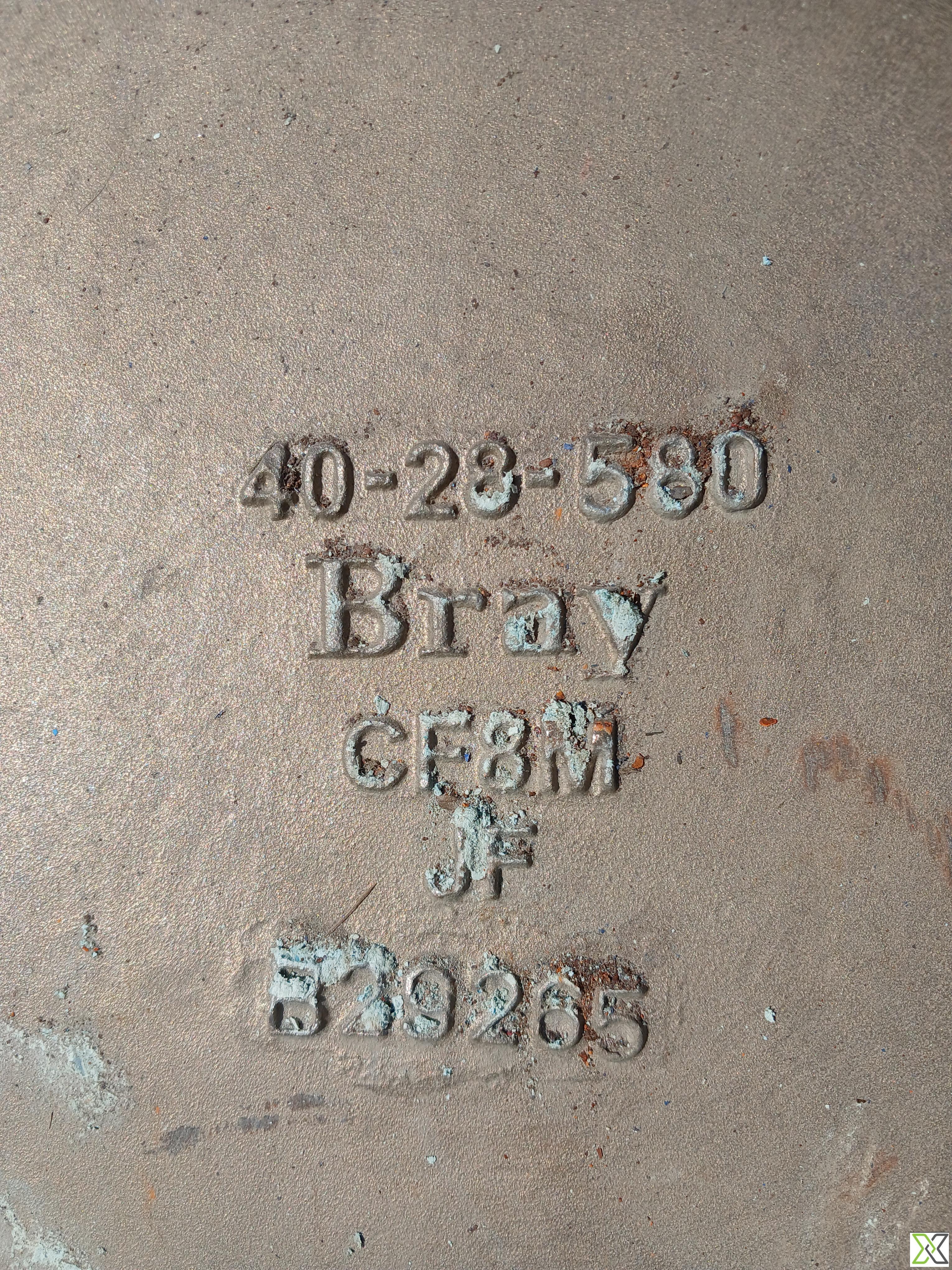

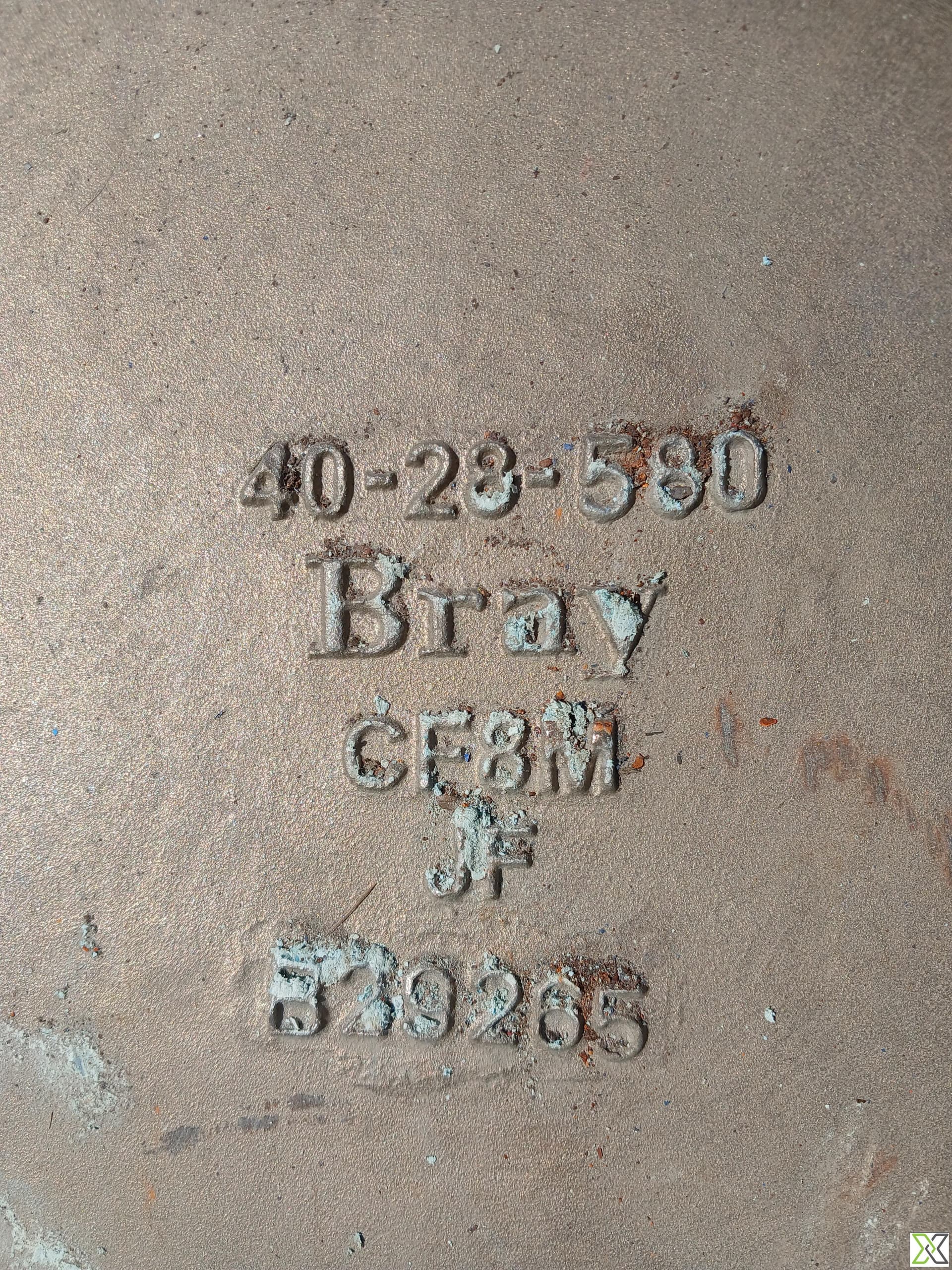

– Casting Markings: 40-28-580, Bray GE8M, JF, B29265
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	2015
ISO 15926 Pt 4	10554
Model Number	285 PSI
Year of Manufacturing	2015
Height	600–1000 mm
Width	250–400 mm
Length	56 mm
Weight	30–100 kg
Color	Blue
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	Centered or Double Eccentric
Failure Action	Lock-in-place
Full Opening Valve	Yes
Normal Operating Pressure	285 psi
Normal Operating Temperature	-29°C to +200°C
Piping Class	Compatible with ASME B31.1/B31.3 Class 150
UNSPSC Code	40141600
