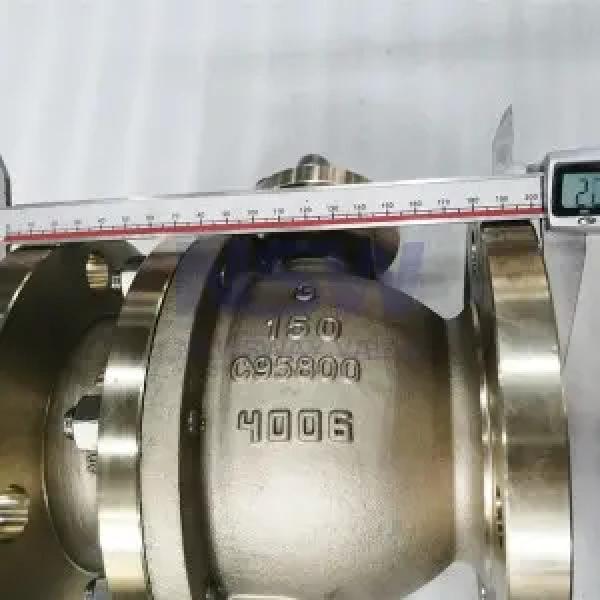

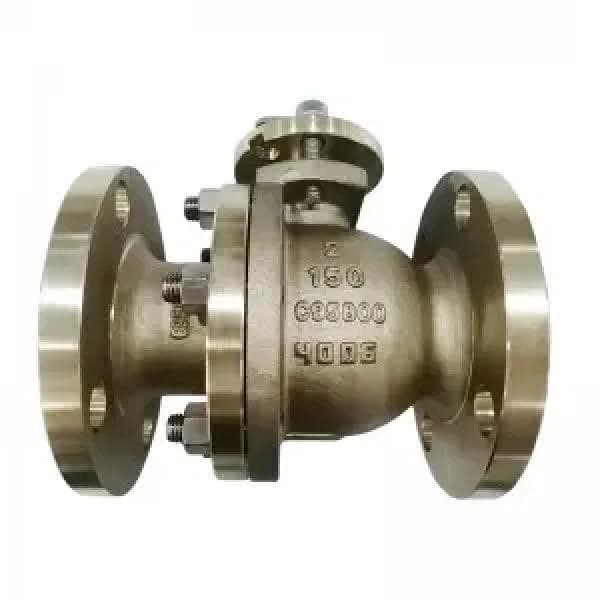

NSW C95800 Bronze Ball Valve – Full Port, Class 150/300, BSP/NPT Threaded & Flanged Ends

The NSW C95800 Bronze Ball Valve is a high-performance, corrosion-resistant valve designed for marine, offshore, and industrial fluid control applications. Manufactured with C95800 nickel-aluminum bronze or equivalent alloys (C95700, C95820, C95900, C63000), this valve provides exceptional resistance to seawater, brine, and chemically aggressive media.

Available in sizes DN15 to DN200 (1/2" to 8") and pressure classes DIN PN16–40, ANSI 150–300Lb, or JIS 10K, the valve supports multiple international connection standards, including BSPP, BSPT, NPT, and DIN/ISO threads. Its full-port design ensures minimal pressure drop, while advanced features such as an anti-static device, pressure balance hole in the ball, and anti-blowout stem deliver reliable performance and safety in demanding environments.

Constructed using silica sol precision casting, the valve exhibits high dimensional accuracy and surface finish. Optional locking devices and fire-safe design per API 6FA/API 607 further enhance operational security. This valve is suitable for a wide range of fluid types including seawater, oil, brine, fuel, and mildly corrosive chemicals.

Specifications:

– Valve Type: Full Port Ball Valve
– Design Standards: ANSI B16.34, BS5351, DIN 3337
– Size Range: DN15 to DN200 (1/2" – 8")
– Pressure Ratings:
  – DIN PN16 to PN40
  – ANSI 150Lb, 300Lb
  – JIS 10K
– Temperature Range: -20°C to +200°C (-4℉ to 392℉)
– Body & Trim Materials:
  – C95800 (Ni-Al Bronze)
  – Other Available: C95700, C95820, C95900, C63000, B62, Al-Bronze, Brass
– Thread Types (Optional): BSPP, BSPT, NPT, DIN 2999-259, ISO 228-1
– End Connections:
  – Flanged: ANSI B16.5, DIN 2632–2635, JIS B2212
  – Threaded: BSP/NPT
  – Face-to-Face: ANSI B16.10, DIN 3202 F1/F4/F5, GB/T 12221, JIS B2002
– Seat Design: Full port
– Stem Design: Anti-blowout stem with anti-static device
– Ball Feature: Pressure balance hole
– Casting Process: Silica sol precision casting
– Operation: Lever-operated, optional lockable handle
– Testing Standards: API 598, MSS SP-100, EN 12266, ISO 5208
– Fire Safe Design: API 6FA, API 607
– Compliance Options:
  – NACE MR-0175 / MR-0103
  – ISO 15848 (Fugitive Emission)
  – Non-Destructive Testing: PMI, UT, RT, PT, MT
– Applications: Marine, desalination, offshore platforms, brine systems, fuel handling, cooling water
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
