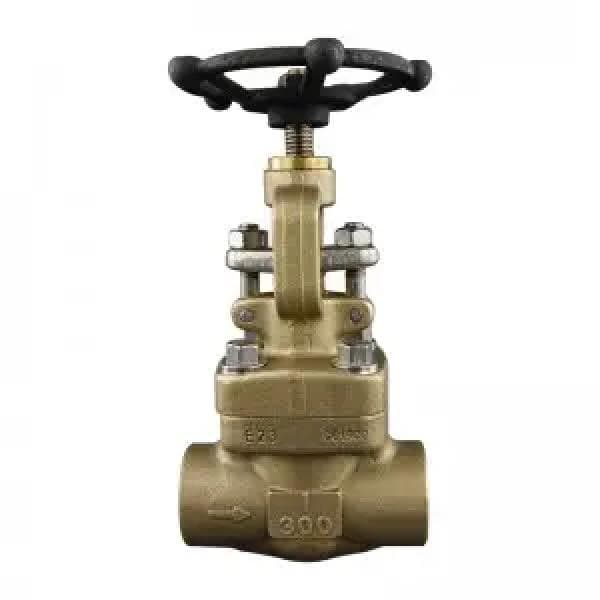

NSW C95800 Forged Globe Valve – API 602, Class 800–2500, OS&Y, Full/Reduced Port

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Forged C95800 aluminum bronze globe valve, Class 800 to 2500, NPS 1/2" to 2", with OS&Y rising stem, bolted/pressure seal bonnet, available in SW, NPT, BW, and flanged ends. Suitable for seawater, corrosive media, and high-pressure service.

Description

NSW C95800 Forged Globe Valve – API 602, Class 800–2500, OS&Y, Full/Reduced Port

The NSW C95800 Forged Globe Valve is a high-performance industrial valve designed per API 602 and ASME B16.34 standards for compact, high-pressure fluid control systems. Made from forged C95800 nickel-aluminum bronze, this valve offers exceptional resistance to corrosion, erosion, and marine conditions. With its high strength, corrosion fatigue resistance, and outstanding performance in saltwater, freshwater, and aggressive chemical media, the C95800 forged globe valve is ideally suited for demanding offshore, marine, and chemical applications.

Available in NPS 1/2" to 2" sizes and pressure classes from Class 800 to Class 2500, this valve is constructed with an outside screw and yoke (OS&Y), rising stem, solid wedge disc, renewable seat rings, and spiral wound gaskets. The design supports socket weld, butt weld, threaded, and flanged connections. It can be configured with bolted, pressure seal, or welded bonnets for flexible use in thermal, chemical, or high-pressure pipeline systems.

Forged steel globe valves like this C95800 variant provide superior performance in throttling or shutoff applications. Their self-sealing design increases sealing reliability as pressure rises, making them ideal for air, steam, oil, water, radioactive fluids, and corrosive media.

Specifications:

– Valve Type: Forged Globe Valve
– Design Standards: API 602 / ASME B16.34
– Size Range: NPS 1/2" to 2"
– Pressure Class: 800#, 150#, 300#, 600#, 900#, 1500#, 2500#
– Body Material: C95800 (Nickel-Aluminum Bronze)
– Other Material Options: A105, A182 F304/F304L/F316/F316L, F51, F53, A350 LF2/LF3/LF5, Monel, Inconel, Hastelloy, Alloy 20
– Design Features:
1. Forged construction
2. OS&Y (Outside Screw & Yoke)
3. Rising stem with non-rising handwheel
4. Solid wedge disc
5. Renewable seat rings
6. Spiral wound gasket
7. Bolted Bonnet / Welded Bonnet / Pressure Seal Bonnet
8. Integral backseat
9. Reduced Bore or Full Port
– End Connection Options:
– Socket Weld: ASME B16.11
– Butt Weld: ASME B16.25
– Threaded (NPT): ASME B1.20.1
– Flanged: ASME B16.5, B16.47, MSS SP-44 (NPS 22 Only)
– Face-to-Face: ASME B16.10
– Testing & Inspection: API 598
– Fire Safe Design: Optional per API 6FA / API 607
– Compliance Options:
– NACE MR-0175 / MR-0103
– ISO 15848 (Fugitive Emissions)
– Non-Destructive Testing: PMI, UT, RT, PT, MT

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
