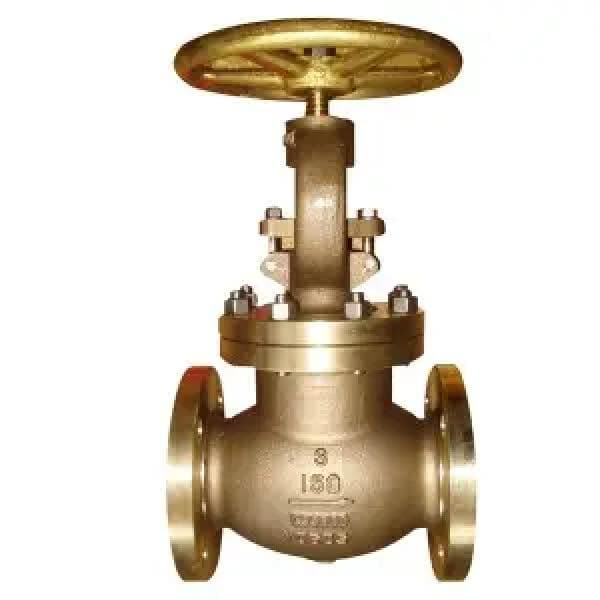

NSW C95800 Globe Valve – Class 150–600, OS&Y, Bolted Bonnet, Flanged

The NSW C95800 Globe Valve is a corrosion-resistant, heavy-duty shutoff valve designed for marine, offshore, and industrial service requiring precise flow regulation and dependable sealing. Manufactured from premium C95800 nickel-aluminum bronze or similar alloys (Al-Bronze, ASTM B61, B62, Monel, Inconel, Hastelloy), this valve excels in seawater, brine, and corrosive process fluid environments.

Engineered to BS 1873 and ANSI B16.34 standards, this globe valve is offered in sizes ranging from NPS 2" to 48" with pressure ratings from Class 150 to 600. The valve features a straight pattern body, outside screw and yoke (OS&Y) configuration, bolted bonnet (BB), rising stem with loose disc (plug or ball option), and renewable seat rings for long service life and ease of maintenance. Available with flanged or butt weld ends, and optional gear operator for sizes 10” and above.

The valve is a force-sealed type, requiring the application of pressure to the disc to achieve effective shut-off. C95800 bronze provides excellent strength, elasticity, and corrosion resistance in seawater, fresh water, and mild acid environments. It is weldable and supports both horizontal and vertical installation orientations.

Specifications:

– Valve Type: Globe Valve
– Design Standards: BS 1873 / ANSI B16.34
– Size Range: NPS 2" to 48"
– Pressure Class: 150#, 300#, 600#
– Body Material Options:
  – C95800 (Nickel-Aluminum Bronze)
  – ASTM B61 (C92200), B62 (C83600), B148 (C95800)
  – Aluminum Bronze, Ni-Al-Bronze
  – Monel, Inconel, Hastelloy
– Trim Options: Plug or Ball Type Loose Disc
– Design Features:
  1. Straight pattern body design
  2. OS&Y (Outside Screw & Yoke)
  3. BB (Bolted Bonnet), yoke integral with bonnet
  4. Rising stem with handwheel
  5. Renewable seat ring
  6. Impact handwheel for NPS 10" and above
  7. Horizontal or vertical installation
  8. Gear operator available on request
– End Connection:
  – Flanged: ASME B16.5, B16.47, MSS SP-44 (NPS 22 Only)
  – Socket Weld: ASME B16.11
  – Butt Weld: ASME B16.25
  – Screwed: ANSI/ASME B1.20.1
– Face-to-Face: ASME B16.10
– Testing & Inspection: API 598
– Fire Safe Design: Optional per API 6FA / API 607
– Compliance Options:
  – NACE MR-0175 / MR-0103
  – ISO 15848 (Fugitive Emissions)
  – Non-Destructive Testing: PMI, UT, RT, PT, MT

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
