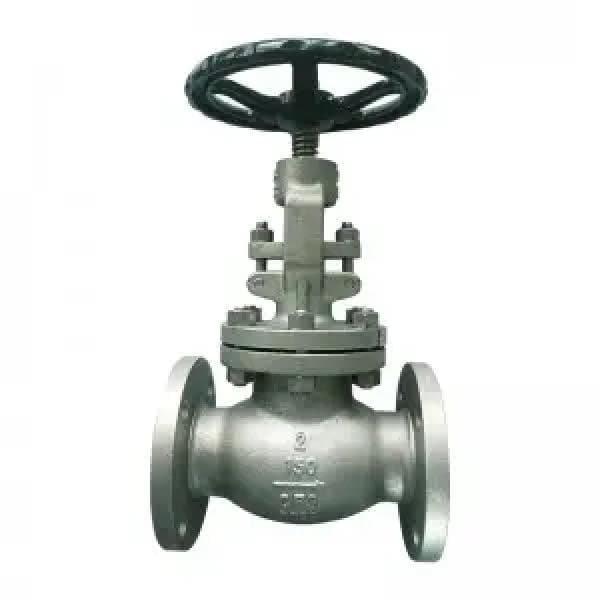

NSW CF3 Globe Valve – Class 150 to 2500, OS&Y, Bolted Bonnet, Flanged Ends

Product Details

Quantity

500
Availability (Lead Time)

4-6 Weeks
Product Location

China
Condition
OEM

WENZHOU NEWSWAY VALVE CO. LTD
Equipment code

Get Quotation Whatsapp

Short Description

Class 150–2500 CF3 globe valve with outside screw & yoke (OS&Y), rising or non-rising stem, bolted or pressure seal bonnet, and RF/RTJ/BW ends. Sizes NPS 2–24, API 598 tested.

Description

NSW CF3 Globe Valve – Class 150 to 2500, OS&Y, Bolted Bonnet, Flanged Ends

The NSW CF3 Globe Valve is a precision-engineered globe valve designed for robust shut-off and throttling service across a wide range of industrial applications. Constructed from ASTM A351 CF3 cast stainless steel, this valve offers excellent corrosion resistance and mechanical integrity in aggressive environments. Its plug-type disc ensures tight shut-off, with linear movement along the valve seat axis, suitable for precise flow regulation of air, water, steam, mud, corrosive fluids, and radioactive media. Available with outside screw & yoke (OS&Y), rising or non-rising stem configurations, the CF3 globe valve supports safe manual operation and ease of maintenance. Flanged, socket weld, or butt weld ends meet global piping standards. Designed to BS 1873 with ASME B16.10 face-to-face dimensions, it is fire-safe tested and compliant with API 598 and NACE MR-0175/MR-0103.

Specifications:

– Valve Type: Globe Valve
– Size Range: NPS 2 to NPS 24
– Pressure Class: 150, 300, 600, 900, 1500, 2500
– Body Material: ASTM A351 CF3 (Cast Austenitic Stainless Steel)
– Trim Material: Matching CF3 or equivalent stainless steel
– Operation: Manual (Handwheel), OS&Y, Rising/Non-Rising Stem
– Disc Type: Plug-type disc
– Bonnet Type: Bolted Bonnet or Pressure Seal Bonnet
– End Connection: RF, FF, RTJ, BW, SW (per ASME B16.5/B16.25/B16.11)
– Face-to-Face: ASME B16.10
– Design Standard: BS 1873, ASME B16.34
– Test Standard: API 598 (Shell, Seat, and Backseat test)
– Fire Safe Design: Optional to API 6FA / API 607
– NACE Compliance: Available per NACE MR-0175 / MR-0103
– Additional Inspection: PMI, UT, RT, PT, MT
– Applications: Petrochemical, Power, Water, Oil & Gas, Corrosive Fluid Systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
