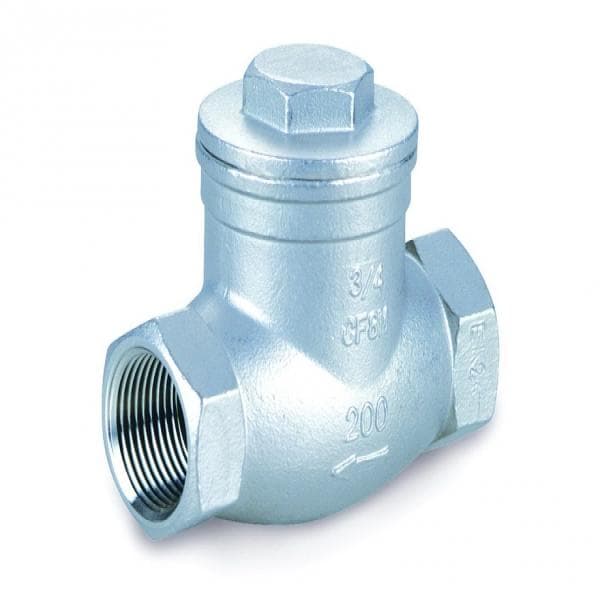

BT-CK Check Valve – 200psi, Threaded Ends, ASTM-A351-CF8M, Swing Type

The BT-CK Check Valve is designed to prevent reverse flow in pipelines, promoting system safety and efficiency. Built with a full port configuration, the valve ensures minimal flow resistance and maximum capacity. Its swing-type disc mechanism with integral seat allows smooth, automatic operation without the need for external actuation.

Manufactured from corrosion-resistant ASTM-A351-CF8M stainless steel, the valve is durable and suitable for a wide range of fluid applications. Threaded end connections simplify installation and maintenance, while the screwed cap design provides secure enclosure and ease of access. Ideal for use in moderate-pressure applications such as water supply systems, chemical lines, and industrial piping.

Specifications:

– Valve Type: Swing check valve
– Size Range: 1/4" to 3"
– Pressure Rating: 200psi
– Temperature Range: Up to 230°C (typical for CF8M construction)
– End Connections: Threaded (NPT)
– Design: Full port for optimized flow capacity
– Mechanism: Swing disc with integral seat
– Body Material: ASTM-A351-CF8M (stainless steel)
– Cap Type: Screwed cap
– Operation: Automatic (non-actuated)
– Applications: Water, oil, gas, chemical processing, general fluid service
