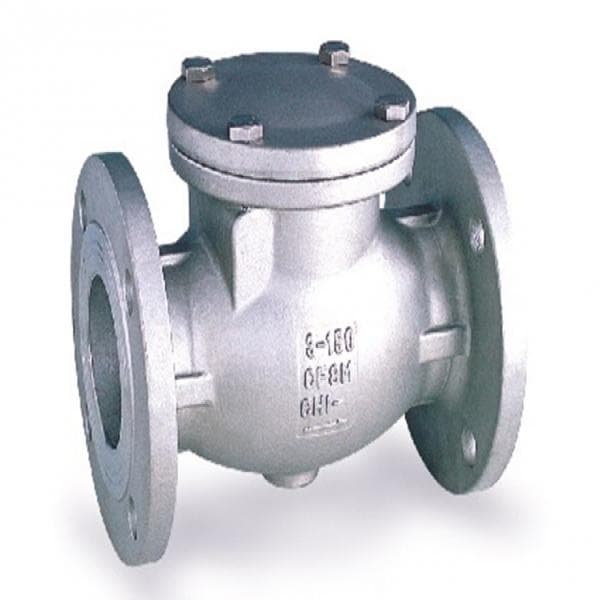

BT-FCK Check Valve – ANSI 150L / JIS 10K, Flanged, API 598 Tested

Product Details

Quantity

100
Availability (Lead Time)

4-6 Weeks
Product Location

Taiwan
Condition

New
OEM

Bola-Tek
Equipment code

CFIHOS-30000636

Get Quotation Whatsapp

Short Description

Flanged check valve rated for ANSI 150L and JIS 10K service. Available in sizes 1/2" to 12", with body materials including CF8M, CF8, and WCB. Designed to prevent backflow and maintain fluid integrity in pipeline systems.

Description

BT-FCK Check Valve – ANSI 150L / JIS 10K, Flanged, API 598 Tested

The BT-FCK Check Valve is a robust and efficient solution for preventing reverse flow in pipeline systems. Designed to handle pressures rated to ANSI 150L and JIS 10K, it is suitable for a wide range of industrial fluid applications including chemical, water, oil & gas, and process industries. This valve features flanged ends manufactured to ANSI B16.5 and JIS B2239 standards, ensuring seamless compatibility with piping systems worldwide.

To maintain proper installation geometry and spacing, the face-to-face dimensions follow ANSI B16.10 and JIS B2002. The valve body is engineered in compliance with ANSI B16.34 and each unit is tested to API 598, ensuring reliable sealing performance, even in demanding conditions.

The BT-FCK is offered in sizes from 1/2" to 12" and is available in a range of durable materials such as ASTM A351 CF8M (316SS), CF8 (304SS), and A216 WCB (carbon steel). For high-pressure needs, this model is also available in ANSI 300Lbs, JIS 20K, and DIN PN16 versions.

Specifications:

– Product Type: Check Valve
– Model: BT-FCK
– Size Range: 1/2" to 12"
– Pressure Ratings: ANSI 150Lbs, JIS 10K (Optional: ANSI 300Lbs, JIS 20K, DIN PN16)
– Design Standards: ANSI B16.34
– Face-to-Face Standards: ANSI B16.10, JIS B2002
– Flange Standards: ANSI B16.5, JIS B2239
– Testing Standard: API 598
– Body Material Options:
• ASTM A351 CF8M (316 Stainless Steel)
• ASTM A351 CF8 (304 Stainless Steel)
• ASTM A216 WCB (Carbon Steel)
– Function: Prevents reverse flow in pipelines
– Applications: Water supply, petrochemical, industrial process systems, HVAC, steam lines
– Connection Type: Flanged

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
