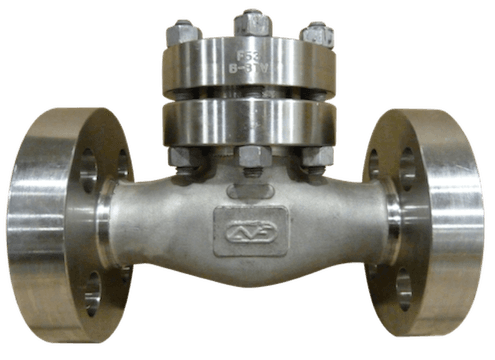

LVF 1" Class 1500 Piston Check Valve – A105N, FNPT, Trim 8, NACE Compliant

The LVF 1" #1500 Piston Check Valve is engineered for reliable backflow prevention in high-pressure systems. Constructed from A105N forged carbon steel and equipped with a bolted cover, this valve ensures mechanical robustness and leak-tight integrity. The FNPT threaded connections simplify installation, while the internal Trim 8 configuration provides excellent resistance to wear and corrosion. Fully compliant with NACE MR0103 and MR0175 standards, the valve is suitable for sour gas applications and meets the rigorous demands of the oil & gas, petrochemical, and power generation sectors.

Specifications:

– Valve Type: Piston Check Valve
– Size: 1 inch
– Pressure Rating: Class 1500
– Body Material: A105N Forged Carbon Steel
– End Connection: FNPT (Female NPT Threaded Ends)
– Bore Type: Reduced Bore (RB)
– Trim: Trim 8 (corrosion-resistant configuration)
– Cover: Bolted Cover
– Operation: Automatic check (non-return)
– Service: High-pressure, corrosive, and sour service
– Compliance: NACE MR0103 / MR0175
– Application Areas: Oil & gas pipelines, chemical processing, refineries, and offshore installations
