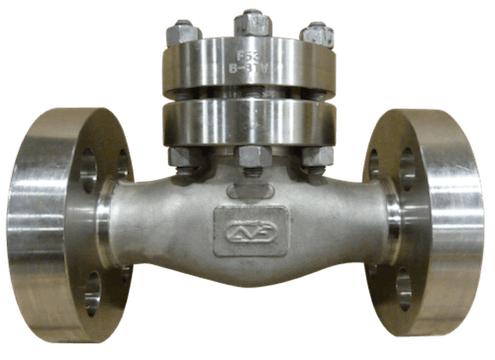

LVF 1/2" Class 1500 Piston Check Valve – A105N FNPT, Trim 8, NACE Compliant

The LVF 1/2" #1500 Piston Check Valve is a robust and compact non-return valve designed for critical high-pressure service in industrial applications. Constructed with a forged A105N carbon steel body, it ensures excellent mechanical strength and pressure handling. The valve includes FNPT threaded ends for easy piping integration, Trim 8 components for corrosion resistance, and a bolted cover for reliable sealing. This valve is particularly suitable for sour gas or chemically aggressive environments due to its NACE MR0103 / MR0175 compliance. Ideal for upstream and downstream oil & gas applications, chemical processing, and petrochemical services.

Specifications:

– Valve Type: Piston Check Valve
– Size: 1/2 inch
– Pressure Class: 1500
– Body Material: A105N Forged Carbon Steel
– End Connections: FNPT (Female NPT Threads)
– Bore Type: Reduced Bore (RB)
– Trim Type: Trim 8
– Cover Type: Bolted Cover
– Design: Piston-style non-return valve
– Compliance: NACE MR0103 / MR0175
– Operation: Automatic (non-return); no external operator required
– Typical Applications: High-pressure sour service lines, refineries, chemical process piping, gas handling systems
