Cryogenic gate valve for -196°C service in Class 150–1500 pressure ratings, available in sizes from 1/2″ to 36″. Constructed with LCB, CF8/CF8M materials, rising stem, OS&Y design, and extended bonnet for LNG and cryogenic applications.

Description

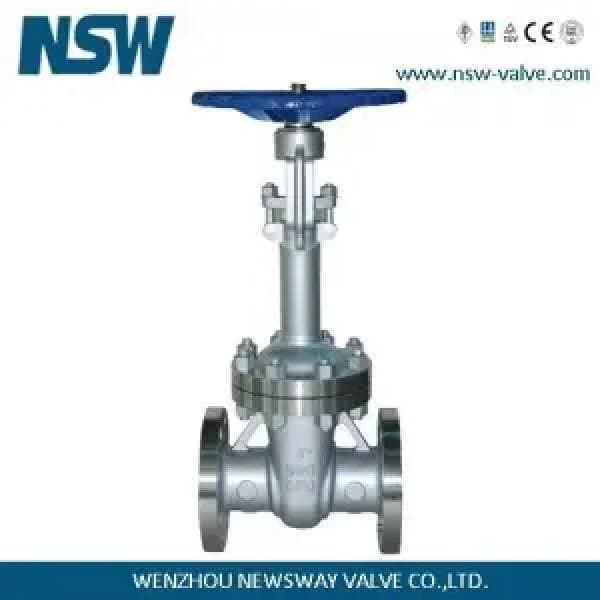

NSW Cryogenic Gate Valve – Class 150 to 1500, Extended Bonnet, OS&Y, -196°C Service

The NSW Cryogenic Gate Valve is designed for ultra-low temperature fluid isolation in critical applications such as LNG, liquid oxygen, nitrogen, ethylene, and other cryogenic chemical systems. Engineered to operate at temperatures down to -196°C, this valve incorporates a long-necked extended bonnet to isolate the stem packing from the cold zone, ensuring reliable sealing and thermal integrity. It is available in sizes from NPS 1/2″ to 36″ and pressure classes from Class 150 to Class 1500. The valve is constructed using cryogenic-grade materials such as LCB, CF8, CF8M, LF2, and stainless steels, and features a flexible or solid wedge, OS&Y rising stem, and bolted or pressure seal bonnet. Multiple end connections are offered, including RF, RTJ, butt weld, and socket weld. It is ideal for LNG terminals, air separation units, liquefied gas storage, and other cryogenic service environments.

Specifications:

– Valve Type: Cryogenic gate valve
– Size Range: NPS 1/2″ to NPS 36″
– Pressure Class: 150, 300, 600, 900, 1500
– Temperature Range: -40°C to -196°C
– Body Materials: LCB, LCC, LC3, CF8, CF8M, CF3, LF2, F304, F316, F304L, F316L
– Design Standards: API 600, API 602, BS 6364
– Face-to-Face: ASME B16.10 or manufacturer standard
– End Connections:
• Flanged: ASME B16.5, B16.47
• Socket Weld: ASME B16.11
• Butt Weld: ASME B16.25
• Threaded: ASME B1.20.1
– Wall Thickness: API 600 / ASME B16.34
– Testing Standards: API 6D, API 598
– Fire Safe Design: API 6FA, API 607
– Optional Compliance: NACE MR-0175 / MR-0103, ISO 15848
– Inspection Options: PMI, UT, RT, PT, MT
– Operation: Handwheel, worm gear, electric, pneumatic, pneumatic-hydraulic, electro-hydraulic
