DN350 Gate Valve – PN16, GJL250 Cast Iron Body, Flanged, Manual Operation

ReflowX SKU: REF-1455

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

DN350 (14”) Gate Valve with PN16 pressure rating, constructed from GJL250 cast iron. Flanged ends and manual handwheel operation with rising stem design for reliable shut-off in industrial pipeline systems.

Description

DN350 Gate Valve – PN16, GJL250 Cast Iron Body, Flanged, Manual Operation

Description:

This DN350 Gate Valve is a heavy-duty isolation valve designed for use in water, gas, oil, and general utility applications. Featuring a robust GJL250 cast iron body, it is rated for PN16 pressure and is equipped with flanged ends for secure connection to piping systems. The valve operates with a manual handwheel and rising stem mechanism, ensuring clear position indication and reliable sealing. Clearly marked with “PN16 DN350 GJL250” on the body for easy identification, this valve is suitable for non-corrosive and neutral media, providing efficient flow control and long-term performance in industrial and municipal installations.

Specification:

– Product Type: Gate Valve
– Size: DN350 (14”)
– Pressure Rating: PN16
– Body Material: GJL250 (Gray Cast Iron)
– Stem Type: Rising Stem
– Operation: Manual with Handwheel
– Connection Type: Flanged Ends

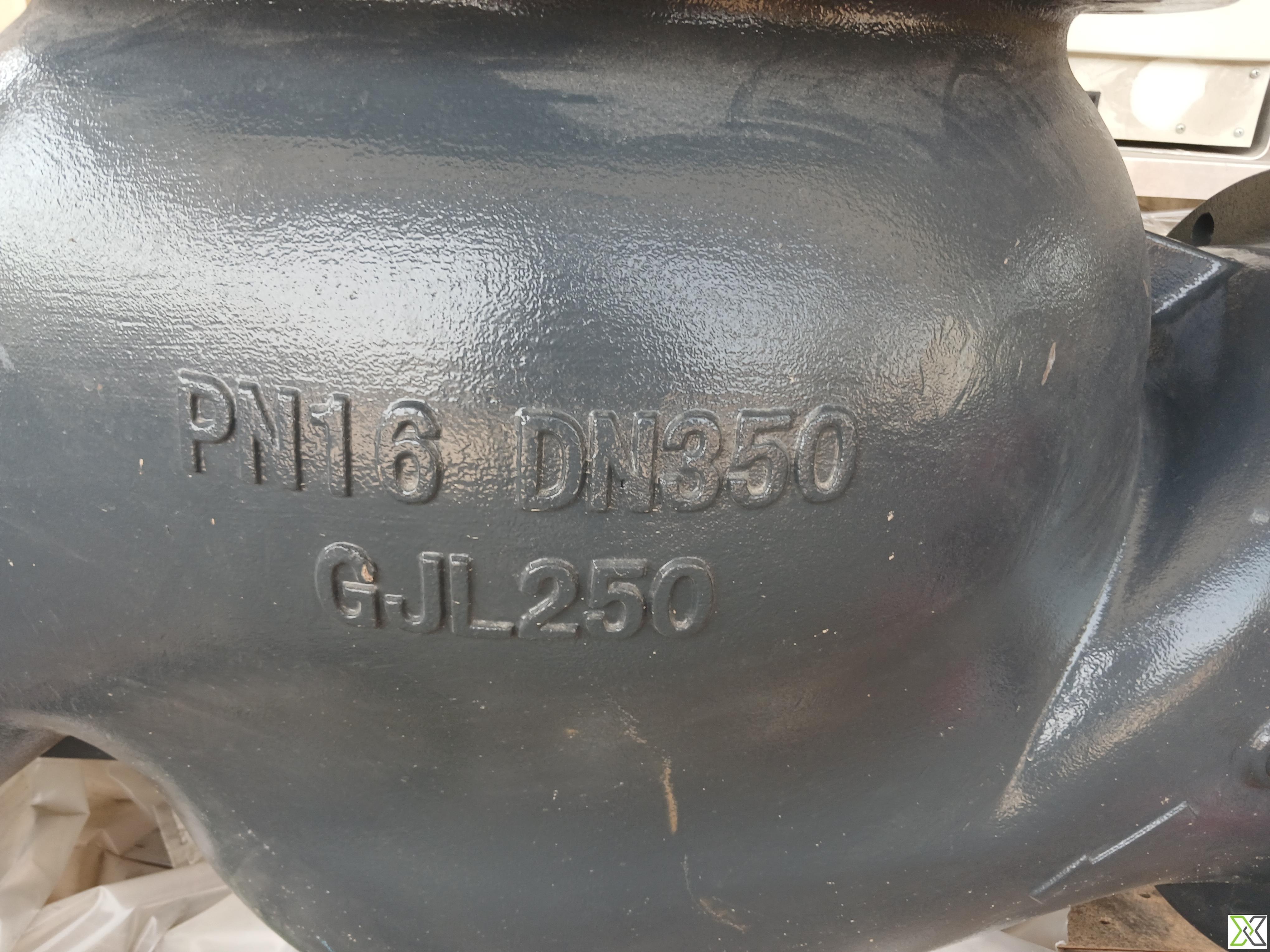

– Body Marking: PN16 DN350 GJL250
– Face-to-Face: As per EN 558 Series 3 or DIN F4/F5 (depending on design)
– Coating: Fusion bonded epoxy or equivalent (optional based on manufacturer)
– Application: Waterworks, HVAC, utility piping, non-aggressive fluid handling
– Temperature Range: Typically up to 120°C (based on gasket and coating)
– Standards: DIN, EN 1074-1/2, ISO 7005-2 (flange)
– Origin: Commonly manufactured in Europe or Asia (specific origin varies by supplier)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Height	1250 mm to 1400 mm
Width	700 mm to 750 mm
Length	410 mm
Weight	180 kg to 220 kg
Color	Grey
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	No automatic failure position
Fluid Name	Potable Water, Wastewater, Irrigation Water, Neutral Gases, Low Viscosity Oils, Air
Full Opening Valve	Yes
Nominal Diameter	14 inches
Normal Operating Pressure	232 PSI
Normal Operating Temperature	-10°C to +120°C
Piping Class	EN 1092-2 PN16 Flanged
UNSPSC Code	40141600
