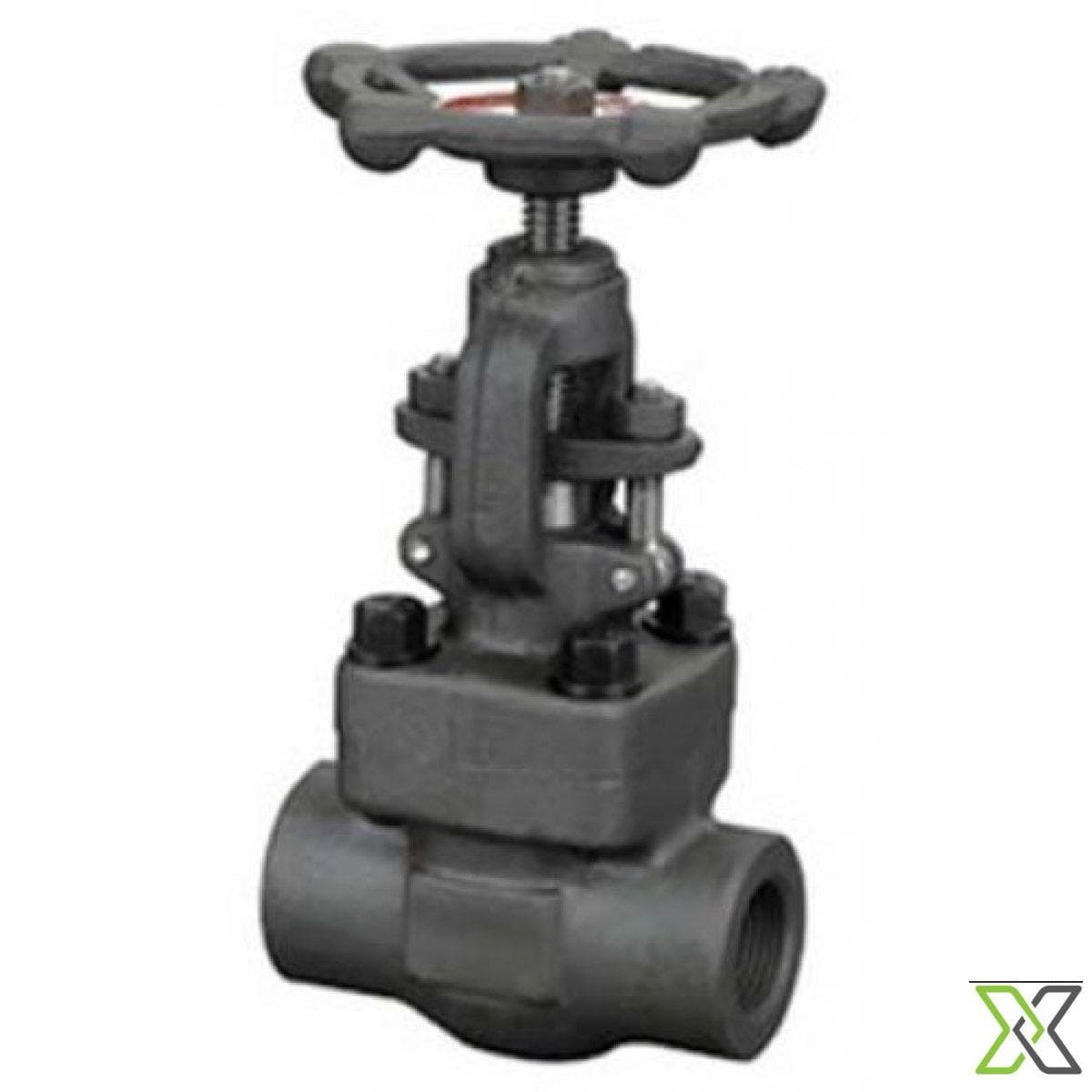

Douglas Chero Forged Globe Valves – ½” to 2”

ReflowX SKU: REF-8586

Product Details

Quantity

50
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Douglas Chero, Italy
Equipment code

Get Quotation Whatsapp

Short Description

Douglas Chero forged globe valves, ½” to 2”, pressure class 150 to 2500, in A105N, F316L, LF2, or F22 body materials. Available in RD and FB bore with RF, NPT, or SW ends.

Description

Douglas Chero Forged Globe Valves – ½” to 2”, Class 150 to 2500, A105N/F316L/LF2/F22

Douglas Chero forged globe valves are designed for precise flow regulation in demanding industrial environments. Available in sizes from ½” to 2” and pressure ratings from Class 150 to 2500, these compact valves are built from high-quality forged materials such as A105N carbon steel, F316L stainless steel, LF2 for low-temperature service, and F22 alloy steel for high-pressure/high-temperature conditions. The globe valve’s linear motion and seating design enable efficient throttling and minimal leakage, making them ideal for flow control applications. Offered with Reduced Bore (RD) or Full Bore (FB) options, and end connections including Raised Face (RF), Threaded (NPT), and Socket Weld (SW), these valves conform to API, ASME, and ANSI specifications for safety, durability, and reliability. Douglas Chero forged globe valves are a trusted solution across oil & gas, petrochemical, and power generation sectors.

Specifications:

– Manufacturer: Douglas Chero, Italy
– Valve Type: Forged Globe Valve
– Size Range: ½” to 2”
– Pressure Classes:
• Class 150
• Class 300
• Class 600
• Class 800
• Class 1500
• Class 2500
– Body Materials:
• A105N – Forged Carbon Steel
• F316L – Forged Stainless Steel
• LF2 – Forged Low-Temperature Carbon Steel
• F22 – Forged Chrome-Moly Alloy Steel
– End Connections:
• RF – Raised Face Flanged
• NPT – Threaded (ASME B1.20.1)
• SW – Socket Weld (ASME B16.11)
– Bore Options:
• Reduced Bore (RD)
• Full Bore (FB)
– Design Features:
• OS&Y (Outside Screw & Yoke)
• Bolted Bonnet
• Renewable disc and seat
• Integral backseat
• Linear motion control for precise throttling
– Compliance Standards:
• API 602
• ASME B16.34
• API 598 (Testing)
• MSS SP-25 (Marking)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	Forged Globe Valve
Manufacturer Name	Douglas Chero, Italy
Height	160 mm to 320 mm
Width	70 mm to 160 mm
Length	90 mm to 190 mm
Weight	3.0 kg (½” Class 150) to 20 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Design Specification	API 602
Failure Action	Manual fail-closed
Fluid Name	Steam, Water, Oil, Air, Gas, Chemicals, Hydrocarbons
Full Opening Valve	Full Bore (FB) and Reduced Bore (RD)
Nominal Diameter	½” to 2”
Normal Operating Pressure	Class 150: ~19 bar - Class 2500: ~425 bar
Normal Operating Temperature	-29°C to +425°C
Piping Class	ASME B31.1 / B31.3
UNSPSC Code	40141600
