1" Manual Ball Valve – Class 150 RF, ASTM A216 WCB, Lever Operated

ReflowX SKU: REF-7999

Product Details

Quantity

5
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Dresser-Rand (A Siemens Business)
Equipment code

Get Quotation Whatsapp

Short Description

High-quality 1-inch manual ball valve with Class 150 RF flanged ends, carbon steel A216 WCB body, and lever handle. New surplus condition with 5 units available in UAE.

Description

1" Manual Ball Valve – Class 150 RF, ASTM A216 WCB, Lever Operated

This 1" (25 mm) manual ball valve is designed for reliable shut-off and isolation in industrial fluid systems. Built with a robust ASTM A216 Grade WCB carbon steel body, the valve is suited for general-purpose and utility applications where durability and strength are critical. The full-port ball design ensures minimal flow restriction, making it ideal for systems requiring efficient flow control.

The valve features a Class 150 pressure rating and raised face (RF) flanged ends conforming to ANSI B16.5 standards for easy integration into standard piping systems. The lever handle enables quick, quarter-turn operation, enhancing operator convenience and flow control precision.

Manufactured as part of a Dresser-Rand console water assembly (Job No. X-46110A1), this valve is supplied in new surplus condition and is available immediately. It is an excellent choice for replacement, expansion, or original installations in process and utility systems.

– Brand: Dresser-Rand (a Siemens business)

Specifications:

– Job No.: X-46110A1 (ASSLY)
– Item No.: 3501-K-002A
– Line No.: 7100 – Console Water Assembly X-46110A
– Part No.: DRZRIN52049FKT27
– Description: Ball Valve 1" 150# RF L.O. A216 GR WCB
– SR No.: 15-04

– Type: Manual Ball Valve
– Size: 1 inch
– Rating: 150# (ANSI Class 150)
– End Connection: Raised Face (RF) Flanged
– Body Material: ASTM A216 WCB (Carbon Steel)
– Operation: Quarter Turn Lever Handle

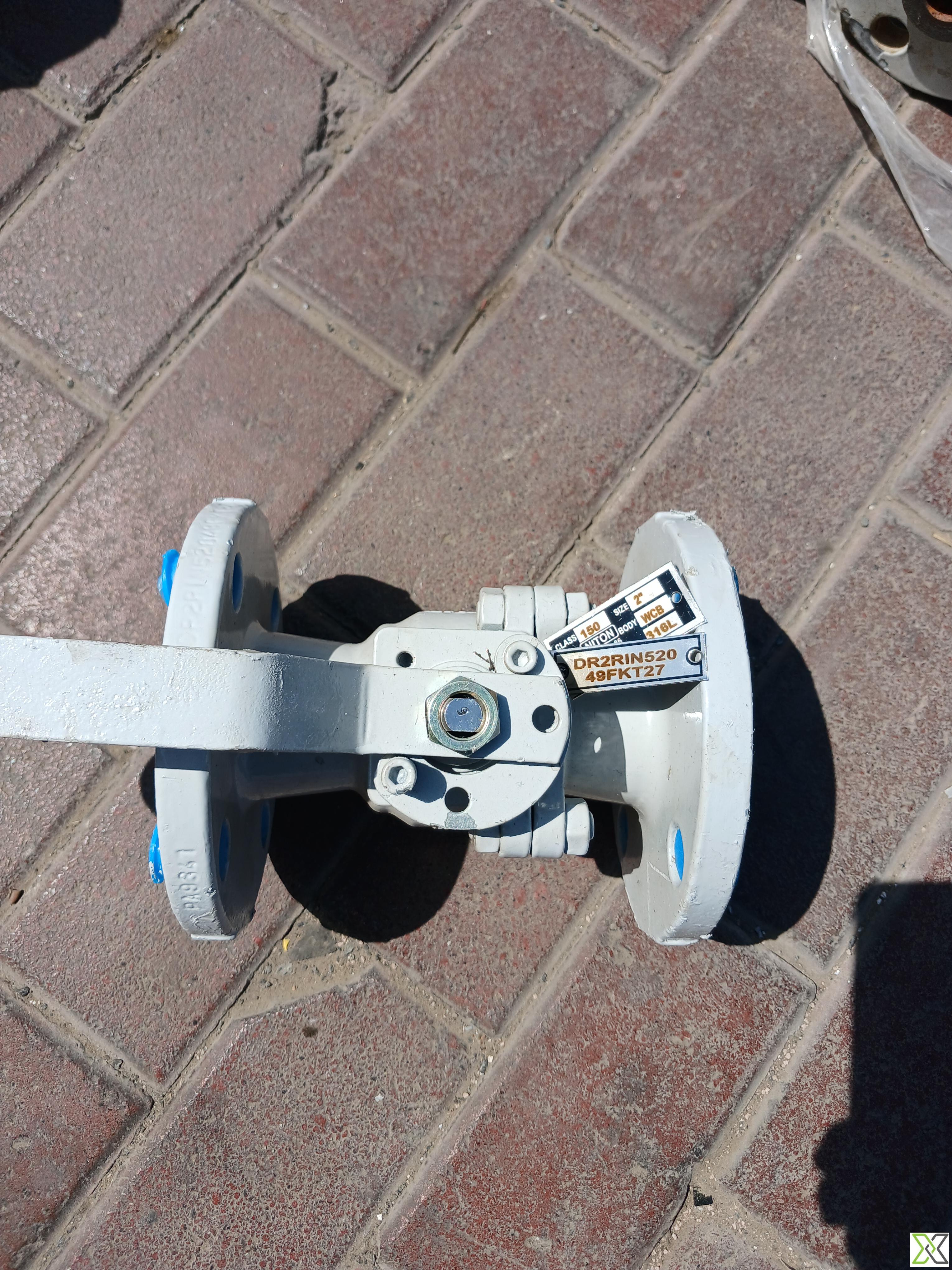

– Part Number on Valve: DRZRIN52049FKT27
– Condition: New Surplus
– Location: United Arab Emirates
– Quantity Available: 5 Units

For further specifications or to inquire about any of these products and ReflowX's logistics services, please contact ReflowX at info@reflowx.com.

Technical Details

Design Specification	2-piece Manual Ball Valve
Failure Action	stays in last operated position
Fluid Name	Water, Steam, Air, Oil, Gas, Hydrocarbons
Full Opening Valve	Yes
Nominal Diameter	1 inch / DN25
Normal Operating Pressure	ASME Class 150
Normal Operating Temperature	–20°C to +200°C
Piping Class	ASME Class 150 / RF (Raised Face)
