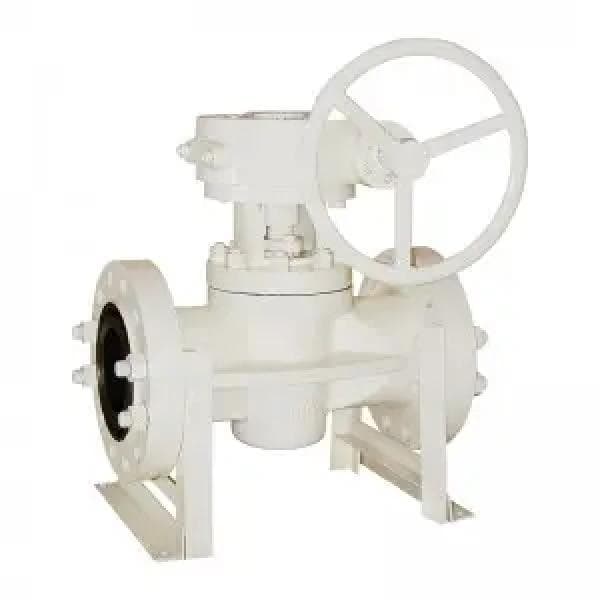

NSW Eccentric Plug Valve – Class 150–2500, Double Eccentric Design

The NSW Eccentric Plug Valve is a high-performance valve solution designed for demanding shutoff and throttling applications. It features a double eccentric mechanism that minimizes friction during operation, ensuring reliable zero-leakage sealing. Built to API 599 and API 6D design standards, the valve is available in a wide range of body materials including A216 WCB, CF8M, Alloy 20, Monel, and Inconel for compatibility with corrosive and abrasive media. The plug is precision-machined and seated using a surfacing of ≥90% nickel or optional high-performance resin seats. A replaceable V-type combination sealing ring allows for quick maintenance without dismantling the actuator. This valve includes a straight-through flow path and self-lubricating spindle bearings for reduced maintenance and extended service life. Ideal for regulating flow in water, wastewater, chemical, refining, and power applications, it also supports inlet/outlet pressure gauge ports and various actuation modes including manual, gear, electric, and pneumatic drives.

Specifications:

– Valve Type: Eccentric Plug Valve (Lubricated Type)
– Operation: Manual, Gear (Turbine), Electric, Pneumatic
– Size Range: NPS ½″ to 30″
– Pressure Class: 150, 300, 600, 900, 1500, 2500
– Body Material Options:
 • Carbon Steel: ASTM A216 WCB, WC6, WC9
 • Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M
 • Low Temp Carbon Steel: A350 LCB
 • Duplex/Super Duplex: A995 4A, 5A, 6A
 • Special Alloys: Alloy 20, Monel, Inconel, Hastelloy
– Plug Type: Double eccentric, lubricated, V-ring seal
– Seat Material:
 • ≥90% Nickel (3 mm thick surfacing)
 • Optional high-performance resin
– Sealing: V-type combination seal (replaceable)
– Body-to-Bonnet Seal: O-ring sealed
– Bearings: Self-lubricated, low-wear type
– Design Standard: API 599, API 6D
– Face-to-Face: ASME B16.10
– Flange Standard: ASME B16.5
– Testing Standard: API 598, API 6D
– Temperature Range: –40°C to +425°C
– Flow Characteristics: Ideal linear curve, suitable for regulation
